Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-590-9016 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SPCC SPEC, SPCCSPEC, 8151197060, 815-1197060, 81511970601, 815-1197060-1, 8151197060PC1, 815-1197060PC1, 5935-00-590-9016, 00-590-9016, 5935005909016, 005909016
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-590-9016 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-590-9016
Demand History | NSN 5935-00-590-9016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 815-1197060-1 | 2024-10-275 | 70 | DIBBS |
| 5935-00-590-9016 | 2024-09-264 | 70 | US |
| 815-1197060-1 | 2024-09-263 | 70 | DIBBS |
| 815-1197060-1 | 2024-03-71 | 70 | DIBBS |
| 815-1197060-1 | 2024-02-60 | 70 | DIBBS |
| 815-1197060-1 | 2022-01-09 | 7 | DIBBS |
| 815-1197060-1 | 2021-12-362 | 1 | DIBBS |
| 815-1197060-1 | 2021-06-175 | 50 | DIBBS |
| 815-1197060-1 | 2021-03-62 | 1 | DIBBS |
| 815-1197060-1 | 2021-03-62 | 2 | DIBBS |
| 5935-00-590-9016 | 2021-02-35 | 50 | US |
| 5935-00-590-9016 | 2021-02-35 | 50 | US |
| 815-1197060-1 | 2021-02-34 | 50 | DIBBS |
| 5935-00-590-9016 | 2016-08-215 | 71 | DIBBS |
| 5935-00-590-9016 | 2016-05-132 | 53 | DIBBS |
| 5935-00-590-9016 | 2014-03-80 | 78 | DIBBS |
| 5935-00-590-9016 | 2014-03-65 | 78 | DIBBS |
| 5935-00-590-9016 | 2013-01-10 | 6 | DIBBS |
| 5935-00-590-9016 | 2012-11-334 | 22 | DIBBS |
| 5935-00-590-9016 | 2012-08-215 | 7 | DIBBS |
| 5935-00-590-9016 | 2012-03-80 | 4 | DIBBS |
| 5935-00-590-9016 | 2011-12-341 | 41 | DIBBS |
| 5935-00-590-9016 | 2011-09-273 | 66 | DIBBS |
| 5935-00-590-9016 | 2007-06-166 | 55 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-590-9016
Technical Data | NSN 5935-00-590-9016
| Characteristic | Specifications |
|---|---|

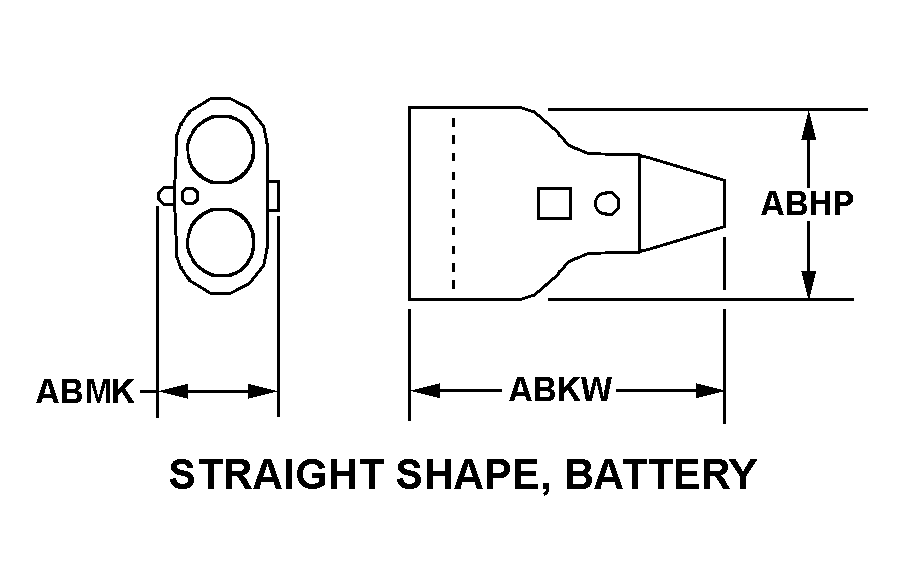

| BODY STYLE | 10C STRAIGHT SHAPE, BATTERY |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 2.484 INCHES NOMINAL |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

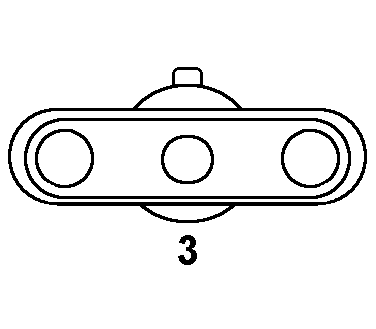

| CONTACT POSITION ARRANGEMENT STYLE | ADDL 3 SINGLE MATING END |
