NSN 5935-00-590-6997 B22844, DE512181, DE51218-1
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-590-6997 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: B22844, DE512181, DE51218-1, E12181, E-1218-1, FM2431223, Q 314 218 221, Q314218221, 10398375001, 10398375-001, 1142600001, 114-260-0001, 2431223, 512181, 51218-1, 6L.4590.035.00-703484, 6L459003500703484, 91420747, 5935-00-590-6997, 00-590-6997, 5935005906997, 005906997
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-590-6997 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-590-6997
Cross Reference | NSN 5935-00-590-6997
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10398375-001 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 114-260-0001 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 2431223 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 51218-1 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 6L.4590.035.00-703484 | D0327 | SELEX COMMUNICATIONS GMBH |
| 91420747 | F0052 | THALES SYSTEMES AEROPORTES S.A |
| B22844 | K0967 | MBDA UK LTD |
| DE51218-1 | 71463 | GREEN TECHNOLOGIES DEVELOPMENT INC |
| DE51218-1 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DE51218-1 | 71785 | CINCH CONNECTORS, INC. |
| DE51218-1 | C5108 | DELCOM ELECTRONIC GMBH |
| DE51218-1 | D1371 | ITT CANNON GMBH |
| DE51218-1 | K0316 | ITT INDUSTRIES LIMITED ITT CANNON UK |
| E-1218-1 | 71468 | ITT CORPORATION DBA I T T CANNON |
| FM2431223 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| Q 314 218 221 | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| Q 314 218 221 | S3092 | RHEINMETALL AIR DEFENCE AG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-590-6997
Related Products | NSN 5935-00-590-6997
Technical Data | NSN 5935-00-590-6997
| Characteristic | Specifications |
|---|---|

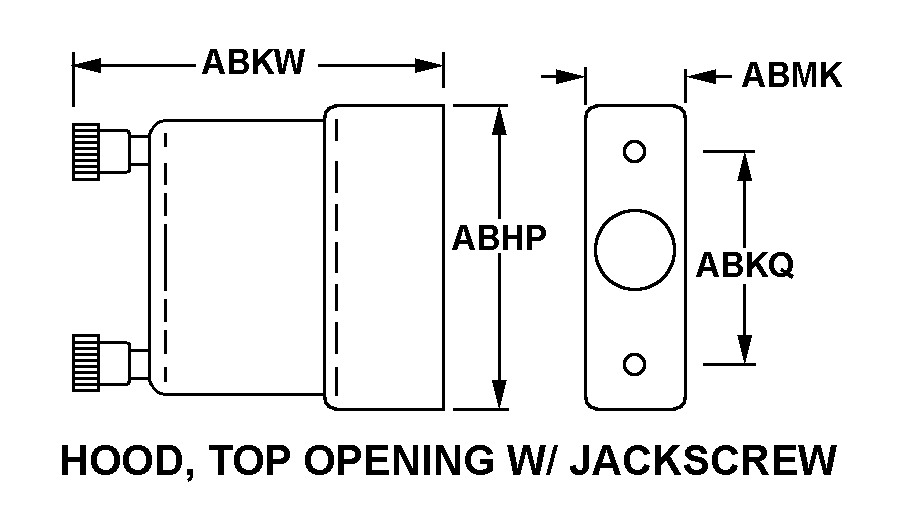

| STYLE DESIGNATOR | 16G HOOD, TOP OPENING W/JACKSCREW |
