NSN 5935-00-578-9329 SCB73119, DMS 83076B, DMS83076B
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-578-9329 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SCB73119, DMS 83076B, DMS83076B, 749201, 9137608, 10A674, 126152, 126-152, 20560734, 2056073-4, 216047SH3S, 26152, 26-152, 283021, 2830-2-1, 507161, 50-7161, 5935-00-578-9329, 00-578-9329, 5935005789329, 005789329
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-578-9329 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-578-9329
Cross Reference | NSN 5935-00-578-9329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10A674 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 126-152 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 126-152 | 50738 | WIRE-PRO INC DBA WPI-SALEM DIVISION |
| 126-152 | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
| 2056073-4 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 216047SH3S | 02106 | MRL INC |
| 26-152 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 26-152 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 2830-2-1 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| 50-7161 | 03692 | MAGTROL INC. |
| 749201 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 9137608 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| 9137608 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| DMS 83076B | 16236 | DLA LAND AND MARITIME |
| SCB73119 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-578-9329
Related Products | NSN 5935-00-578-9329
Technical Data | NSN 5935-00-578-9329
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18A HOOD, TOP OPENING W/CLAMP |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| OVERALL HEIGHT | 2.062 INCHES NOMINAL |
| OVERALL WIDTH | 0.859 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.375 INCHES MAXIMUM |
| SHELL TYPE | HOOD, TOP OPENING |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

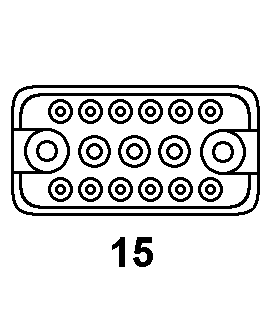

| CONTACT POSITION ARRANGEMENT STYLE | ARBA 15 SINGLE MATING END |
