NSN 5935-00-552-6809 KM9109, KM91-09, 3162895
Product Details | CONNECTOR ADAPTER
5935-00-552-6809 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: KM9109, KM91-09, 3162895, 47275, 47-275, 54B7237H06, 565838, 82968600, 829686-00, 5935-00-552-6809, 00-552-6809, 5935005526809, 005526809
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-552-6809 | 15091 ( ADAPTER, CONNECTOR ) |
Drawings & Photos | NSN 5935-00-552-6809
Demand History | NSN 5935-00-552-6809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 47275 | 2019-04-101 | 32 | DIBBS |
| 47-275 | 2019-04-101 | 32 | DIBBS |
| 54B7237H06 | 2019-04-101 | 32 | DIBBS |
| 565838 | 2019-04-101 | 32 | DIBBS |
| 829686-00 | 2019-04-101 | 32 | DIBBS |
| 5935-00-552-6809 | 2012-12-352 | 19 | DIBBS |
| 5935-00-552-6809 | 2012-11-328 | 5 | DIBBS |
Cross Reference | NSN 5935-00-552-6809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3162895 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 47-275 | 74868 | AMPHENOL CORPORATION |
| 47275 | 74868 | AMPHENOL CORPORATION |
| 47275 | K1100 | AMPHENOL LTD |
| 54B7237H06 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 54B7237H06 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 565838 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 829686-00 | 74868 | AMPHENOL CORPORATION |
| KM91-09 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-552-6809
Related Products | NSN 5935-00-552-6809
Technical Data | NSN 5935-00-552-6809
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7NA STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.560 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH AND BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | CHROMATE |
| MATING END QUANTITY | 2 |

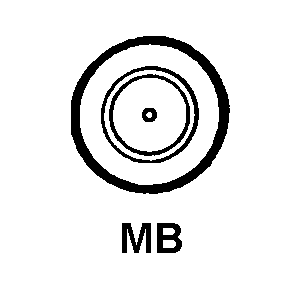

| CONTACT POSITION ARRANGEMENT STYLE | ABBW MB 1ST MATING END ABBJ BNC 2ND MATING END |
