NSN 5935-00-549-7825 MS3106A1824S, MS3106A18-24S, AN3106A1824S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-549-7825 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3106A1824S, MS3106A18-24S, AN3106A1824S, AN3106A18-24S, MILC5015, MIL-C-5015, 5935-00-549-7825, 00-549-7825, 5935005497825, 005497825
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-549-7825 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-549-7825
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-549-7825
Technical Data | NSN 5935-00-549-7825
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 2.062 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.344 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 1.000 INCHES AND 1.125 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 20 AND 18 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.375 INCHES AND 0.625 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

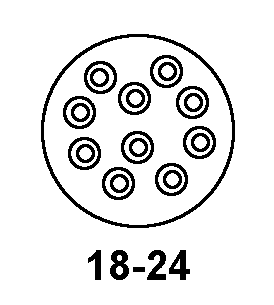

| CONTACT POSITION ARRANGEMENT STYLE | ALAH 18-24 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END 1ST CONTACT GROUPING 6 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END 1ST CONTACT GROUPING 200.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END 1ST CONTACT GROUPING 250.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 TY 1,GRADE B MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 CL 1,GRADE B FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS3106 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 5935-00-549-7825
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
