NSN 5935-00-543-0207 MS3106A12S3SC, MS3106E1253S, MS-3106E-125-3S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-543-0207 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3106A12S3SC, MS3106E1253S, MS-3106E-125-3S, MS3106E12S3S, MS3106F12S3S, MS3106R12S3S, MS3106R12S-3S, MS3106R12S3SC, MS3106S12S3S, MS3106S-12S-3S, MS3456L12S3S, MS3456L12S3SN, MS3456W12S3S, MS3456W12S3SN, MS3456W12S-3SN, M83723/23R1303N, M8372323R1303N, AN3106A12S3S, AN3106A12S3SC, CA06AF12S3S, CA06AF12S-3S, SRL7F, MILC005015, MILC5015, MIL-C-5015, MILC8372323, MILC83723-23, MILDTL5015, MIL-DTL-5015, 06AF12S3S, 229159, 9446A12S3SN, 9446A12S-3SN, 5935-00-543-0207, 00-543-0207, 5935005430207, 005430207
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 OCT 1974 | 00-543-0207 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

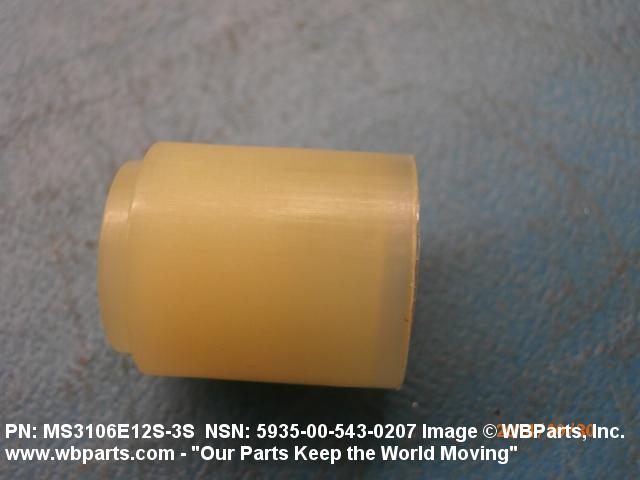

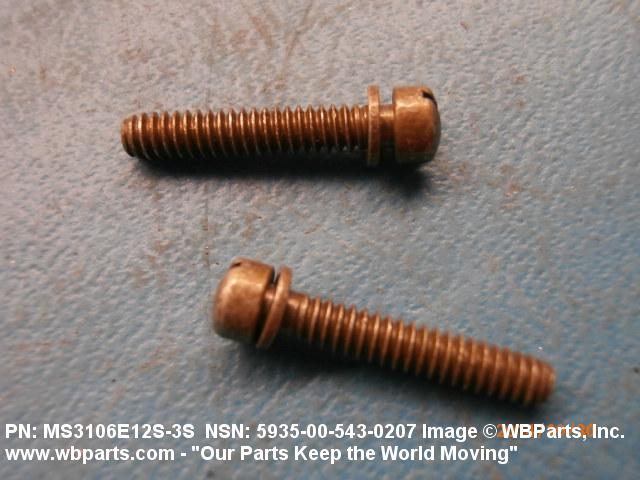

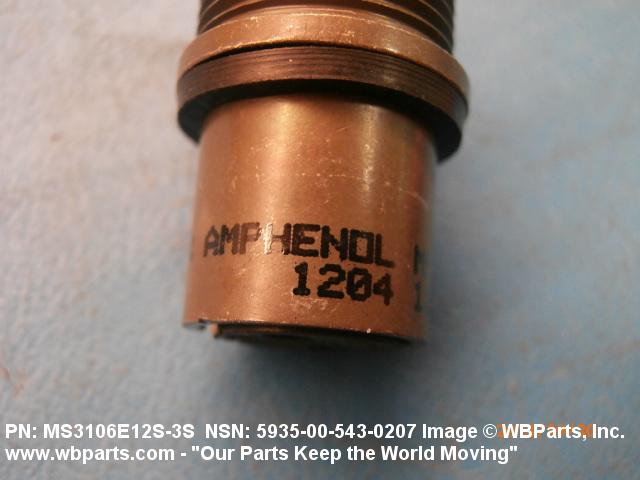

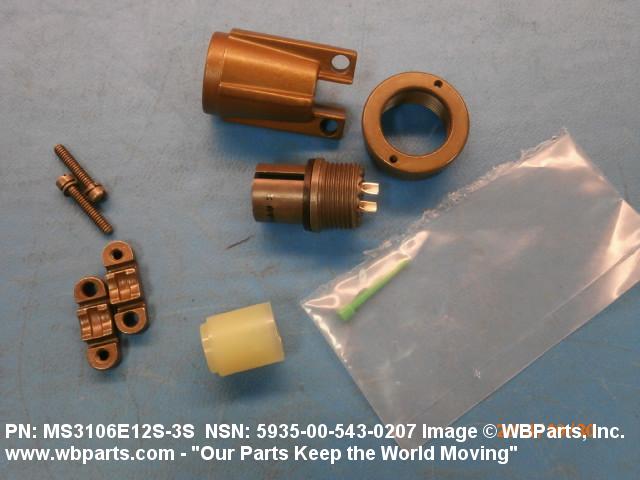

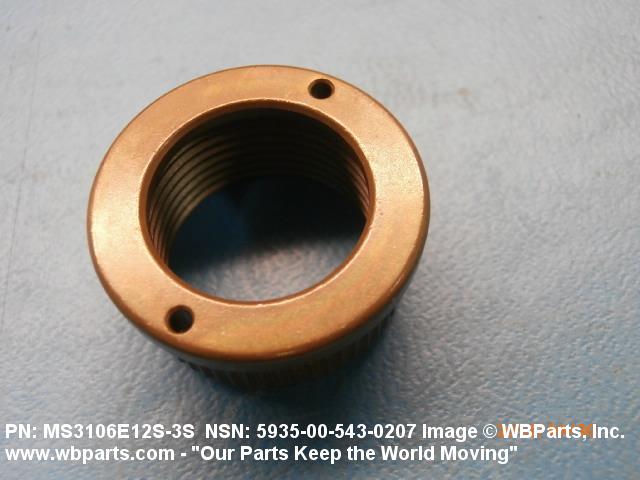

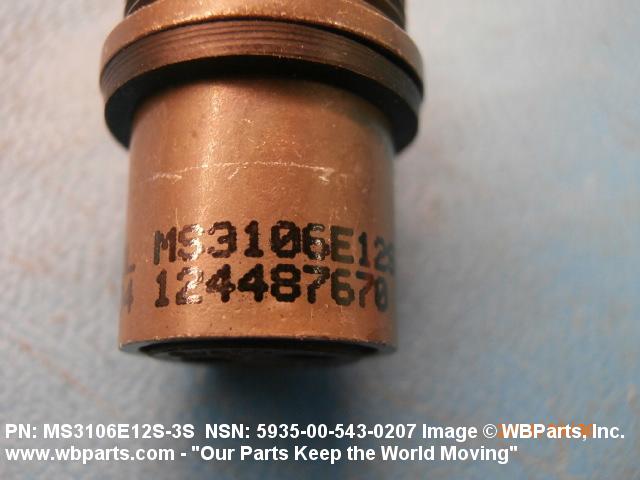

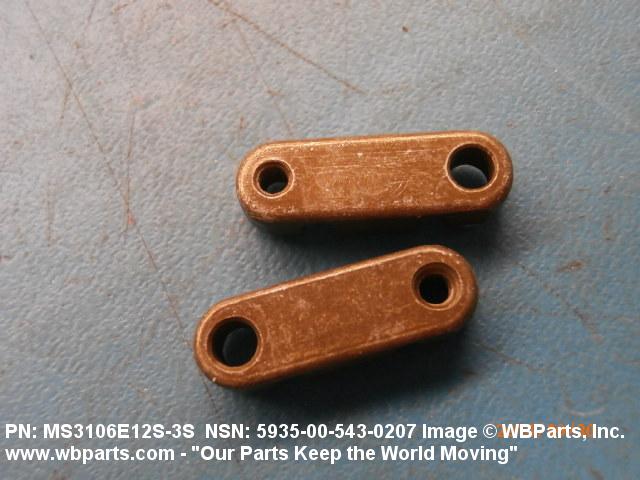

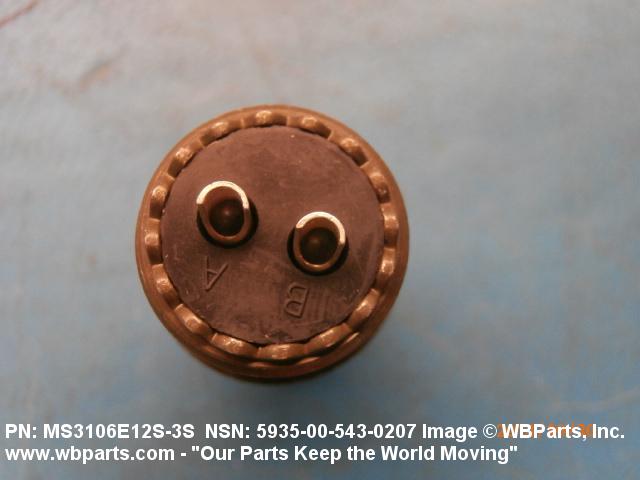

Drawings & Photos | NSN 5935-00-543-0207
Demand History | NSN 5935-00-543-0207
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3456W12S3S | 2021-05-03 | 50 | MY |
| MS3456L12S3S | 2020-08-17 | 2 | Malaysia |
| 5935-00-543-0207 | 2018-12-04 | 2400 | DIBBS |
| 5935-00-543-0207 | 2018-09-19 | 900 | DIBBS |
| 5935-00-543-0207 | 2018-05-08 | 550 | DIBBS |
| 5935-00-543-0207 | 2018-04-04 | 600 | DIBBS |
| 5935-00-543-0207 | 2017-08-06 | 490 | DIBBS |
| MS3456W12S3S | 2017-03-20 | 1 | United States |
| 5935-00-543-0207 | 2017-02-28 | 400 | DIBBS |
| 5935-00-543-0207 | 2017-01-09 | 453 | DIBBS |
| MS3106E1253S | 2016-10-04 | 1 | France |
| MS3456W12S3S | 2016-10-04 | 10 | France |
| 5935-00-543-0207 | 2016-07-28 | 480 | DIBBS |
| 5935-00-543-0207 | 2016-07-17 | 480 | DIBBS |
| 5935-00-543-0207 | 2016-03-08 | 400 | DIBBS |
| MS3106E1253S | 2016-02-26 | 1 | France |
| MS3456W12S3S | 2016-02-26 | 10 | France |
| 5935-00-543-0207 | 2014-10-29 | 4 | United States |
| 5935-00-543-0207 | 2014-10-22 | 1 | TH |
| MS3106F12S3S | 2014-05-29 | 2 | Sri Lanka |
| SRL7F | 2013-03-28 | 2 | us |
| MS3456W12S3S | 2013-02-14 | 6 | US |
| 5935-00-543-0207 | 2012-11-22 | 1 | DIBBS |
| MS3456W12S3S | 2012-08-27 | 2 | UK |
| MS3456W12S3S | 2012-06-19 | 3 | Malaysia |
| 5935-00-543-0207 | 2012-01-28 | 600 | China |
| 5935-00-543-0207 | 2011-09-23 | 1 | Malaysia |
| 5935-00-543-0207 | 2011-09-23 | 1 | Malaysia |
| 5935-00-543-0207 | 2011-09-16 | 1 | US |
| MILC8372323 | 2011-08-25 | 12 | Canada |
| 5935-00-543-0207 | 2010-12-27 | 234 | DIBBS |
| MS3456W12S3S | 2010-12-14 | 1000 | China |
| MS3106F12S3S | 2010-08-03 | 2 | Brazil |
| 5935-00-543-0207 | 2010-06-21 | 750 | DIBBS |
| 5935-00-543-0207 | 2010-05-19 | 710 | DIBBS |
| SRL7F | 2010-05-04 | 1 | BE |
| 5935-00-543-0207 | 2010-04-02 | 458 | DIBBS |
| 5935-00-543-0207 | 2009-10-20 | 352 | DIBBS |
| 5935-00-543-0207 | 2008-12-30 | 1 | Malaysia |
| SRL7F | 2008-12-01 | 1 | US |
| MS3106R12S3S | 2008-11-21 | 3 | PE |
| SRL7F | 2008-11-04 | 1 | United States |
| SRL7F | 2008-11-03 | 1 | US |
| SRL7F | 2008-11-03 | 1 | US |
| MS3106R12S3S | 2008-09-25 | 1 | US |
| MS3106R12S3S | 2008-09-18 | 1 | US |
| MS3106F12S3S | 2008-08-11 | 100 | US |
| 5935-00-543-0207 | 2008-02-07 | 2 | PK |
| SRL7F | 2008-01-15 | 1 | US |
| SRL7F | 2008-01-15 | 1 | France |
| SRL7F | 2007-11-07 | 1 | United States |
| 5935-00-543-0207 | 2007-08-21 | 1565 | DIBBS |
| CA06AF12S3S | 2006-08-05 | 3 | US |
Cross Reference | NSN 5935-00-543-0207
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06AF12S3S | 71468 | ITT CORPORATION DBA I T T CANNON |
| 229159 | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| 9446A12S-3SN | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| AN3106A12S3S | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN3106A12S3SC | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS34561 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS50151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| CA06AF12S-3S | 71468 | ITT CORPORATION DBA I T T CANNON |
| M83723/23R1303N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC005015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC83723-23 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS-3106E-125-3S | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
| MS3106A12S3SC | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3106E12S3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3106F12S3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3106R12S-3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3106R12S3SC | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3106S-12S-3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3108R12SL-3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3456L12S3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3456L12S3SN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3456W12S-3SN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3456W12S3S | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS3456W12S3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-543-0207
Related Products | NSN 5935-00-543-0207
Technical Data | NSN 5935-00-543-0207
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 2.031 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.062 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES AND 0.750 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 20 AND 20 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ACAB 12S-3 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SILICONE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| SPECIAL FEATURES | IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-184-7189,P/N M85049/52-1-12W FOR THE STRAIGHT STYLE,OR NSN 5935-01-181-6652,P/N M85049/51-1-12W FOR THE RIGHT ANGLE STYLE |
Restrictions/Controls & Freight Information | NSN 5935-00-543-0207
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063473 | TUBES CATHODE RAY,TRANSMITTING |
| Less than car load rating | H | 110 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 724 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-543-0207
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
