NSN 5935-00-469-9412 MS2548827, MS25488-27, MS3116J168S

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-469-9412 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS2548827, MS25488-27, MS3116J168S, MS3116J16-8S , AS 25488-27, AS2548827, AS7974, MILC26482 , MILC7974, R65G3A, R65G3B, 3000885, 5935-00-469-9412, 00-469-9412, 5935004699412, 068373117 , 004699412

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	04 FEB 1970	00-469-9412	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-00-469-9412

Part Number	Request Date	QTY	Origin
5935-00-469-9412	2024-06-159	67	DIBBS
5935-00-469-9412	2024-05-144	67	DIBBS
AS7974	2024-05-137	1	United States
5935-00-469-9412	2023-05-138	151	DIBBS
5935-00-469-9412	2022-05-147	179	DIBBS
5935-00-469-9412	2022-05-130	179	DIBBS
MS2548827	2021-10-278	6	US
5935-00-469-9412	2021-05-136	138	DIBBS
MS2548827	2020-09-267	2	US
5935-00-469-9412	2020-05-142	196	DIBBS
5935-00-469-9412	2019-12-346	104	DIBBS
5935-00-469-9412	2019-03-87	144	DIBBS
5935-00-469-9412	2018-07-192	94	DIBBS
5935-00-469-9412	2018-03-88	150	DIBBS
5935-00-469-9412	2017-04-116	103	DIBBS
5935-00-469-9412	2017-01-09	105	DIBBS
MS2548827	2016-03-88	1	United States
MS2548827	2016-03-81	1	United States
5935-00-469-9412	2015-05-135	100	DIBBS
5935-00-469-9412	2015-04-91	105	DIBBS
5935-00-469-9412	2015-01-13	82	DIBBS
5935-00-469-9412	2014-10-279	81	DIBBS
MS2548827	2014-03-70	10	Iran
R65G3B	2013-10-283	1	US
5935-00-469-9412	2013-04-101	70	DIBBS
5935-00-469-9412	2013-03-63	95	DIBBS
5935-00-469-9412	2011-11-307	65	DIBBS
5935-00-469-9412	2011-09-273	93	DIBBS
5935-00-469-9412	2011-08-242	110	DIBBS
5935-00-469-9412	2011-08-213	32	DIBBS
R65G3B	2011-06-166	10	MX
5935-00-469-9412	2011-05-140	44	DIBBS
5935-00-469-9412	2011-03-82	73	DIBBS
MS2548827	2011-02-55	2	US
MILC26482	2011-01-27	4	Portugal
5935-00-469-9412	2011-01-11	80	DIBBS
5935-00-469-9412	2010-11-327	22	DIBBS
MS2548827	2010-08-229	10	United States
5935-00-469-9412	2010-01-25	47	DIBBS
5935-00-469-9412	2009-08-225	190	DIBBS
R65G3B	2009-06-154	1	China
R65G3B	2009-06-153	1	China
5935-00-469-9412	2009-03-86	85	DIBBS
R65G3B	2009-01-23	10	US
5935-00-469-9412	2009-01-07	155	DIBBS
5935-00-469-9412	2008-12-353	70	DIBBS
5935-00-469-9412	2008-02-60	145	DIBBS
5935-00-469-9412	2008-02-32	125	DIBBS
R65G3B	2008-01-22	1	DE
5935-00-469-9412	2007-10-282	85	DIBBS
5935-00-469-9412	2007-07-190	210	DIBBS
MS2548827	2007-06-157	1	Germany
5935-00-469-9412	2007-03-80	125	DIBBS
5935-00-469-9412	2006-05-133	39	DIBBS

Cross Reference | NSN 5935-00-469-9412

Part Number	Cage Code	Manufacturer
3000885	0848B	EQUIPOS INDUSTRIALES DE MANUTENCIONSA
AS7974	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MILC7974	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25488-27	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS25488-27	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R65G3A	80495	ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC
R65G3B	80495	ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-469-9412

Compare

Related Products | NSN 5935-00-469-9412

5935-00-469-9466, 5935-00-469-9676, 5935-00-469-9862, 5935-00-469-9881, 5935-00-470-0012

Technical Data | NSN 5935-00-469-9412

Characteristic	Specifications

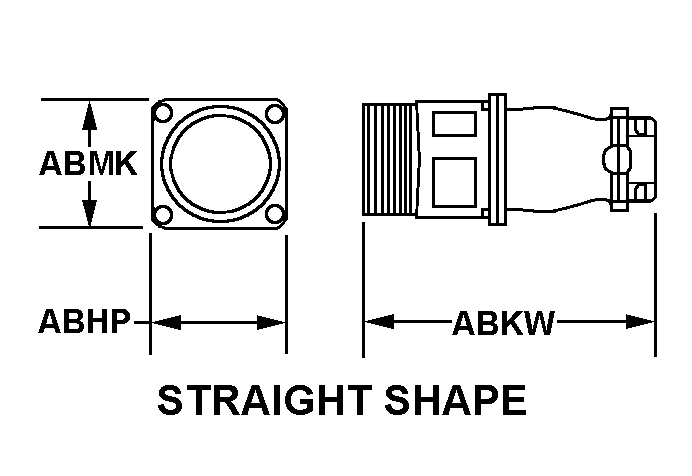

BODY STYLE	17C STRAIGHT SHAPE
OVERALL HEIGHT	7.250 INCHES MINIMUM AND 9.500 INCHES MAXIMUM
OVERALL WIDTH	4.000 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	ANODIZE
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1

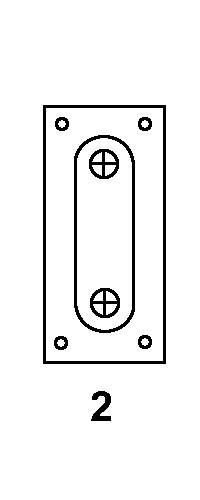

CONTACT POSITION ARRANGEMENT STYLE	ACCM 2 SINGLE MATING END
