NSN 5935-00-430-4115 M39012/39-0501, M39012/55-4502 , M39012390501
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-430-4115 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M39012/39-0501, M39012/55-4502 , M39012390501, M39012554502, MILC3901239, MILC39012-39, MILC3901255, MILC39012-55 , 10135459 , 824474, 82-4474, 5935-00-430-4115, 00-430-4115, 5935004304115, 004304115
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 MAY 1974 | 00-430-4115 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

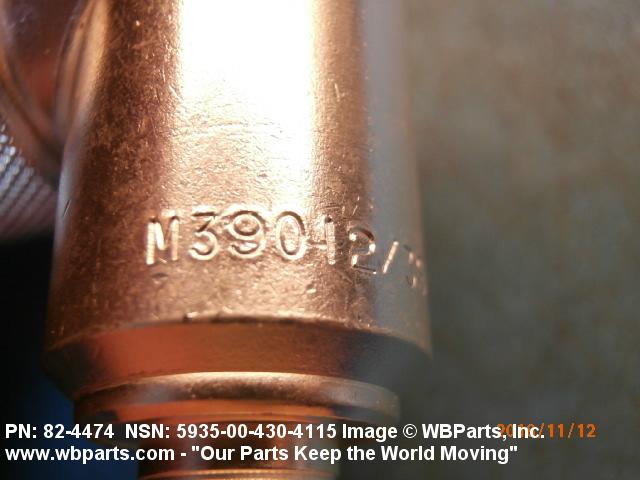

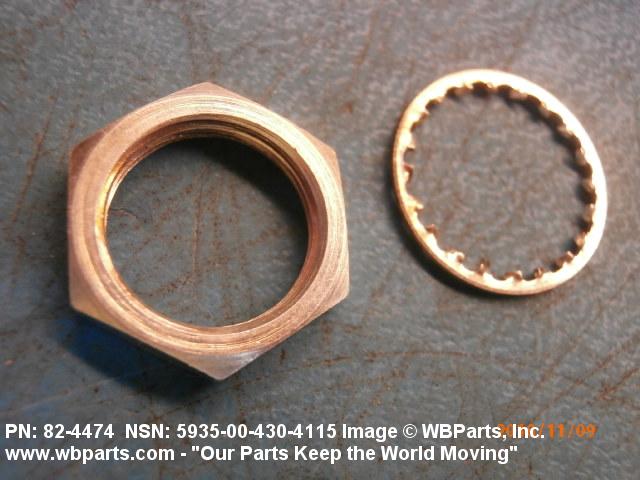

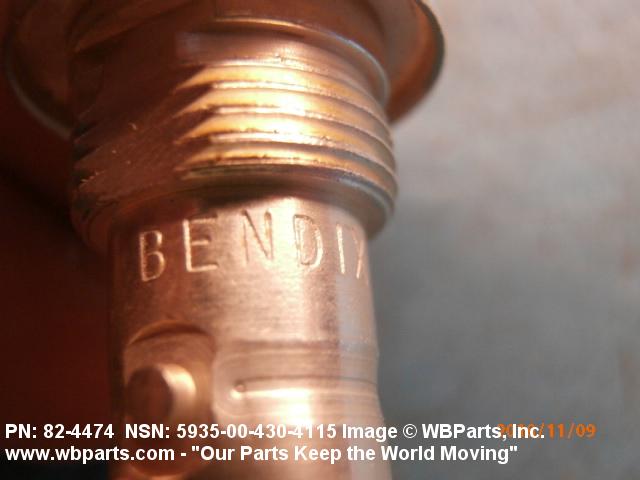

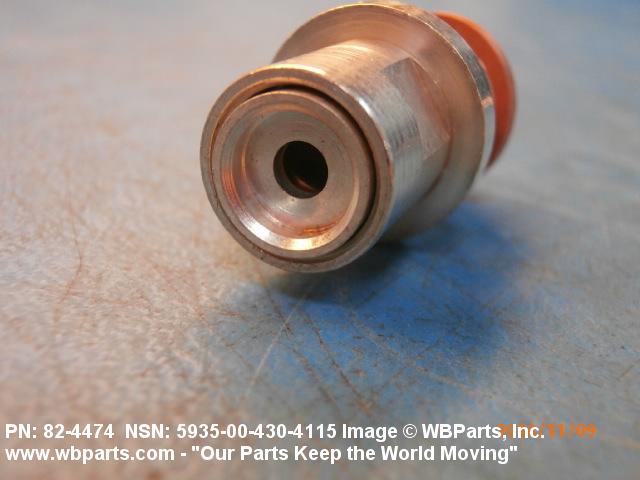

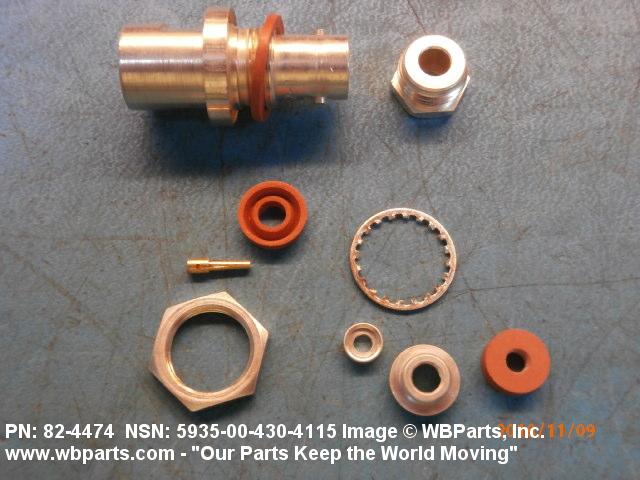

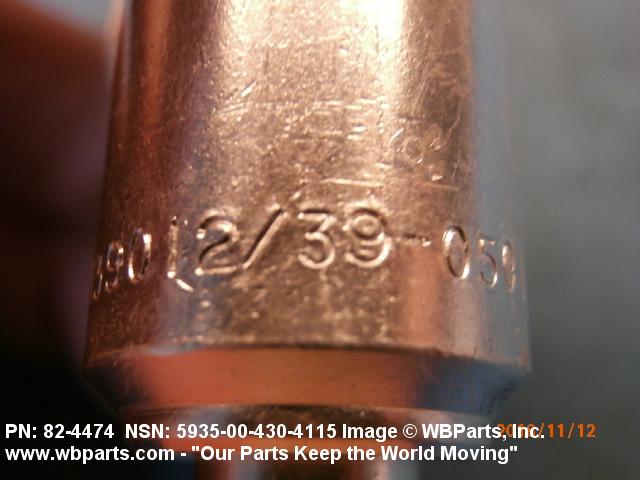

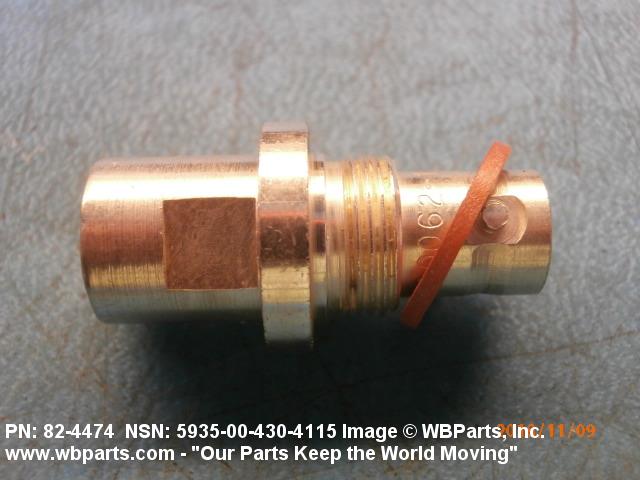

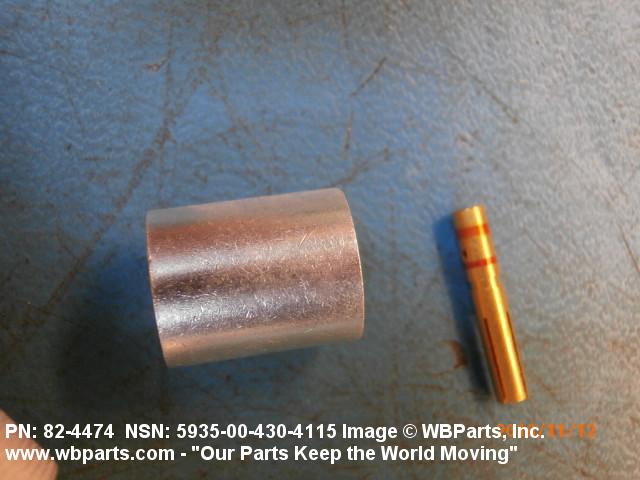

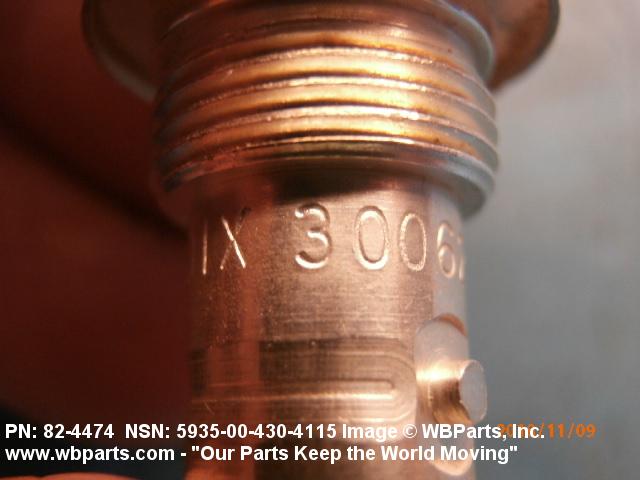

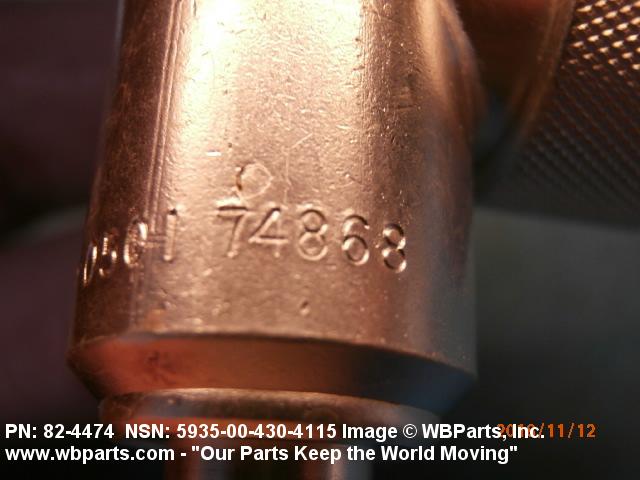

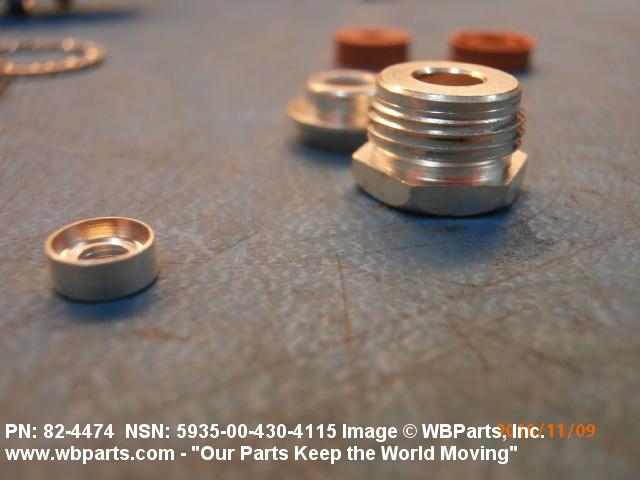

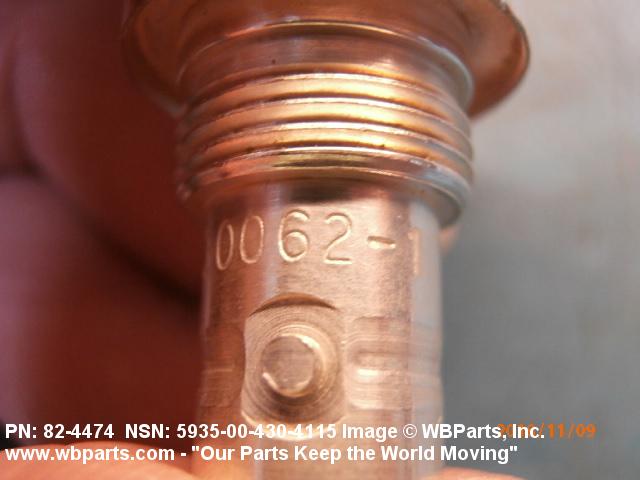

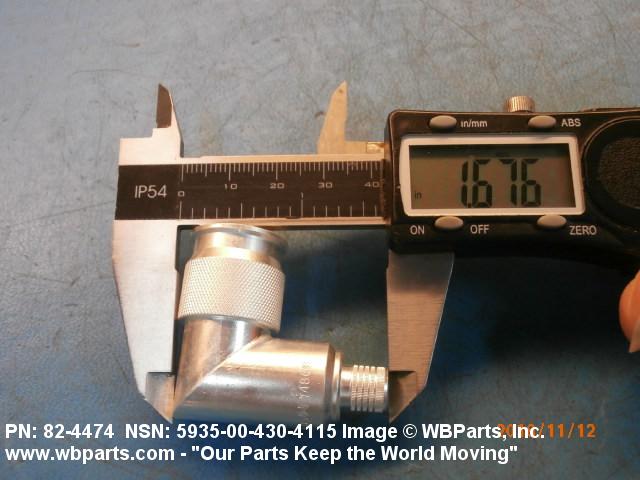

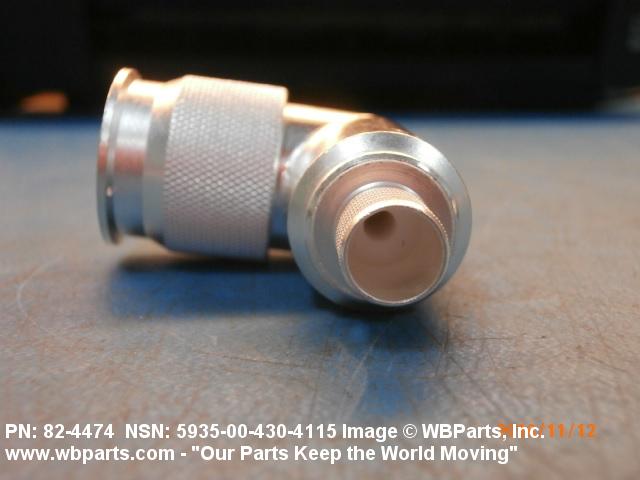

Drawings & Photos | NSN 5935-00-430-4115

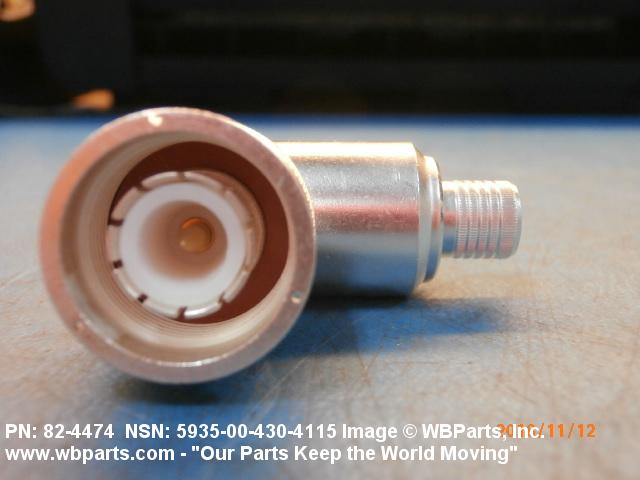

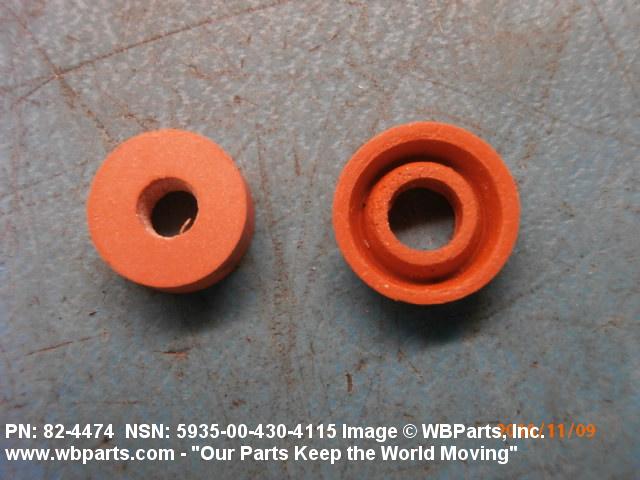

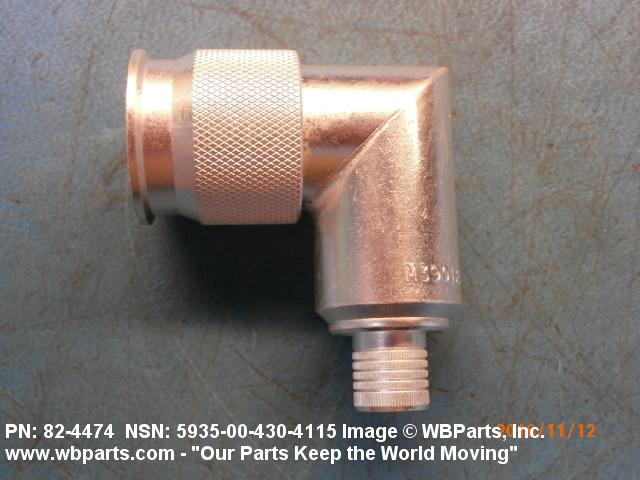

Demand History | NSN 5935-00-430-4115
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-430-4115 | 2024-08-22 | 114 | DIBBS |
| 5935-00-430-4115 | 2023-11-30 | 133 | DIBBS |
| 5935-00-430-4115 | 2023-07-06 | 93 | DIBBS |
| 5935-00-430-4115 | 2022-12-29 | 37 | DIBBS |
| 5935-00-430-4115 | 2022-09-15 | 106 | DIBBS |
| 5935-00-430-4115 | 2022-02-24 | 18 | DIBBS |
| 5935-00-430-4115 | 2021-12-12 | 13 | DIBBS |
| 5935-00-430-4115 | 2021-10-07 | 22 | DIBBS |
| 5935-00-430-4115 | 2021-08-05 | 14 | DIBBS |
| 5935-00-430-4115 | 2021-07-25 | 14 | DIBBS |
| 5935-00-430-4115 | 2021-06-14 | 12 | DIBBS |
| 5935-00-430-4115 | 2021-05-03 | 21 | DIBBS |
| 5935-00-430-4115 | 2021-04-22 | 21 | DIBBS |
| 5935-00-430-4115 | 2021-02-08 | 36 | DIBBS |
| 5935-00-430-4115 | 2021-01-28 | 36 | DIBBS |
| 5935-00-430-4115 | 2020-12-03 | 37 | DIBBS |
| 5935-00-430-4115 | 2020-10-27 | 124 | DIBBS |
| 5935-00-430-4115 | 2020-10-13 | 124 | DIBBS |
| 5935-00-430-4115 | 2019-06-10 | 1 | DIBBS-RFPs |
| 5935-00-430-4115 | 2018-12-06 | 54 | DIBBS |
| 5935-00-430-4115 | 2018-11-13 | 8 | DIBBS |
| 5935-00-430-4115 | 2018-11-06 | 15 | us |
| 5935-00-430-4115 | 2018-11-06 | 30 | us |
| 5935-00-430-4115 | 2018-11-06 | 15 | US |
| 5935-00-430-4115 | 2018-11-06 | 30 | US |
| 5935-00-430-4115 | 2018-11-01 | 8 | DIBBS |
| 5935-00-430-4115 | 2018-08-30 | 377 | DIBBS |
| 5935-00-430-4115 | 2018-03-22 | 2 | United States |
| 5935-00-430-4115 | 2012-07-27 | 15 | DIBBS |
| M39012554502 | 2010-10-26 | 10 | CN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-430-4115
Related Products | NSN 5935-00-430-4115
Technical Data | NSN 5935-00-430-4115

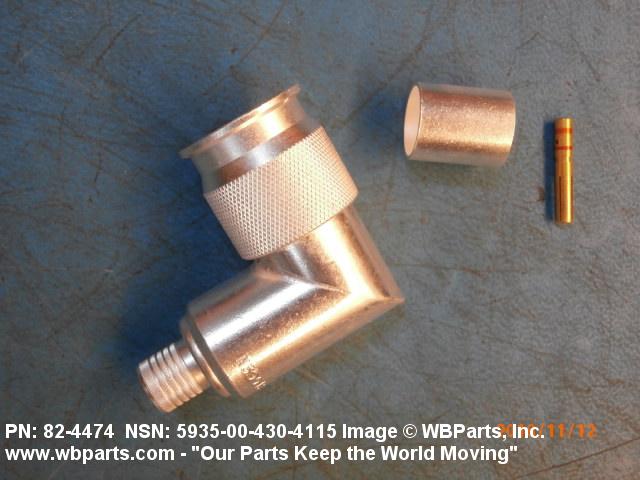

| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3D ANGLE, SHAPE, INTERNAL COUPLING |

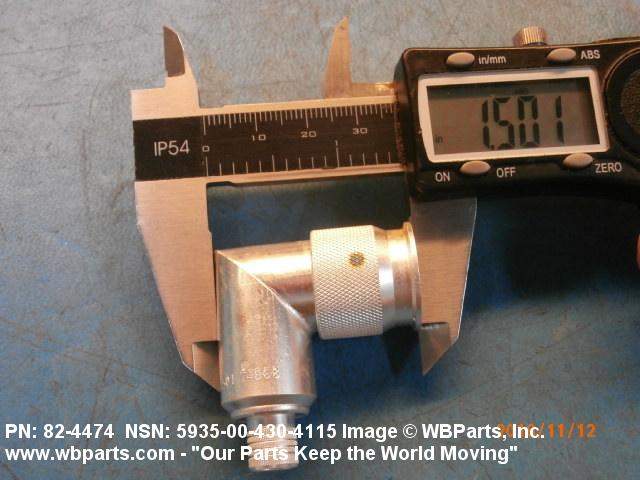

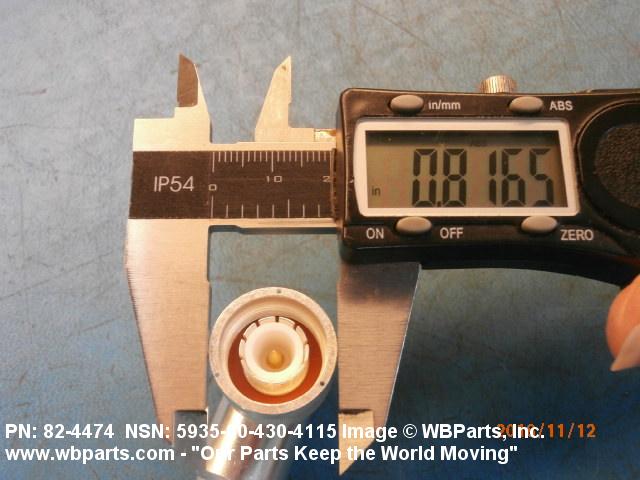

| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.125 INCHES NOMINAL |
| OVERALL DIAMETER | 0.828 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.688 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CRIMP TYPE |
| CABLE ENTRANCE DIAMETER | 0.492 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABCV SC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM FREQUENCY RATING | 11000.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-39012 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39012/39 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC39012-39 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39012/39-0501 |
