NSN 5935-00-365-8434 BD6A18C102PW000, 00-365-8434, 003658434
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-365-8434 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: BD6A18C102PW000, 5935-00-365-8434, 00-365-8434, 5935003658434, 003658434
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 1974 | 00-365-8434 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-365-8434
Demand History | NSN 5935-00-365-8434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BD6A18C102PW000 | 2021-04-115 | 5 | DIBBS |
| BD6A18C102PW000 | 2020-11-307 | 7 | DIBBS |
| BD6A18C102PW000 | 2020-10-294 | 7 | DIBBS |
| 5935-00-365-8434 | 2017-04-107 | 30 | DIBBS |
| 5935-00-365-8434 | 2017-03-68 | 35 | DIBBS |
| 5935-00-365-8434 | 2017-03-65 | 6 | DIBBS |
| 5935-00-365-8434 | 2017-02-58 | 1 | DIBBS |
| 5935-00-365-8434 | 2017-02-53 | 15 | DIBBS |
| 5935-00-365-8434 | 2017-02-53 | 6 | DIBBS |
| 5935-00-365-8434 | 2015-06-169 | 7 | DIBBS |
| 5935-00-365-8434 | 2015-06-158 | 7 | DIBBS |
| 5935-00-365-8434 | 2014-03-89 | 1 | DIBBS |
| 5935-00-365-8434 | 2014-01-30 | 1 | DIBBS |
| 5935-00-365-8434 | 2013-12-356 | 2 | DIBBS |
| 5935-00-365-8434 | 2013-11-321 | 1 | DIBBS |
| 5935-00-365-8434 | 2013-09-269 | 1 | DIBBS |
| 5935-00-365-8434 | 2013-08-220 | 1 | DIBBS |
| 5935-00-365-8434 | 2007-04-103 | 9 | DIBBS |
Cross Reference | NSN 5935-00-365-8434
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BD6A18C102PW000 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-365-8434
Related Products | NSN 5935-00-365-8434
Technical Data | NSN 5935-00-365-8434
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20C STRAIGHT SHAPE |
| OVERALL HEIGHT | 3.323 INCHES NOMINAL |
| OVERALL DIAMETER | 1.300 INCHES MINIMUM AND 1.330 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CRIMP TYPE |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL COMP 302 |
| POLARIZATION METHOD | POLARIZATION BOSS |
| MATING END QUANTITY | 1 |

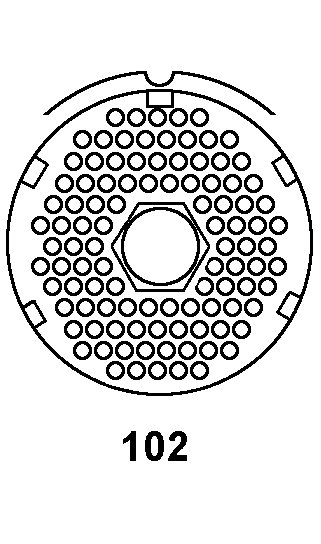

| CONTACT POSITION ARRANGEMENT STYLE | EHAC 102 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 102 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | POLARIZED AT POSITION W |
