NSN 5935-00-351-6242 G3766883, G376688-3, XMRE501000
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-351-6242 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: G3766883, G376688-3, XMRE501000, XMRE50-1000, 12511924, 1251-1924, 4403245, 440324-5, 81C953057, 81C953-057, 5935-00-351-6242, 00-351-6242, 5935003516242, 003516242
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAR 1971 | 00-351-6242 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-351-6242
Cross Reference | NSN 5935-00-351-6242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1251-1924 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 1251-1924 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 440324-5 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 440324-5 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 81C953-057 | 04660 | AIL SYSTEMS INC SUB OF EATON CORP |
| G376688-3 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| XMRE50-1000 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-351-6242
Related Products | NSN 5935-00-351-6242
Technical Data | NSN 5935-00-351-6242
| Characteristic | Specifications |
|---|---|

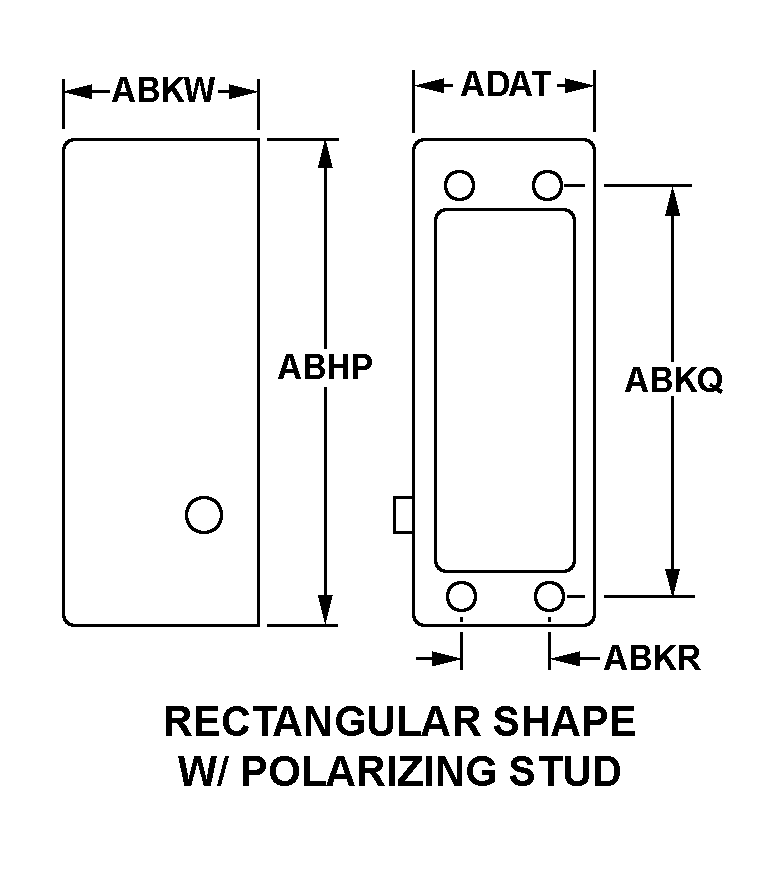

| STYLE DESIGNATOR | 24D RECTANGULAR SHAPE W/POLARIZING STUD |
| OVERALL LENGTH | 2.846 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.282 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.468 INCHES NOMINAL |
| OVERALL HEIGHT | 0.719 INCHES NOMINAL |
| BODY WIDTH | 1.005 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CABLE OPENING LENGTH | 2.026 INCHES MINIMUM |
| CABLE OPENING WIDTH | 0.745 INCHES MINIMUM |
| SIZE DESIGNATION | 50 |
| SPECIAL FEATURES | POLARIZATION IS HOLES ON SIDE OF SHELL |
Restrictions/Controls & Freight Information | NSN 5935-00-351-6242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
