NSN 5935-00-335-0423 H2593, 00-335-0423, 003350423
Product Details | TIP PLUG
5935-00-335-0423 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: H2593, 5935-00-335-0423, 00-335-0423, 5935003350423, 003350423
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-335-0423 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-335-0423
Cross Reference | NSN 5935-00-335-0423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H2593 | 49673 | DOWTY RFL INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-335-0423
Related Products | NSN 5935-00-335-0423
Technical Data | NSN 5935-00-335-0423
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING SINGLE FINGER |
| FINGER LENGTH | 0.281 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | ANY ACCEPTABLE SINGLE FINGER |

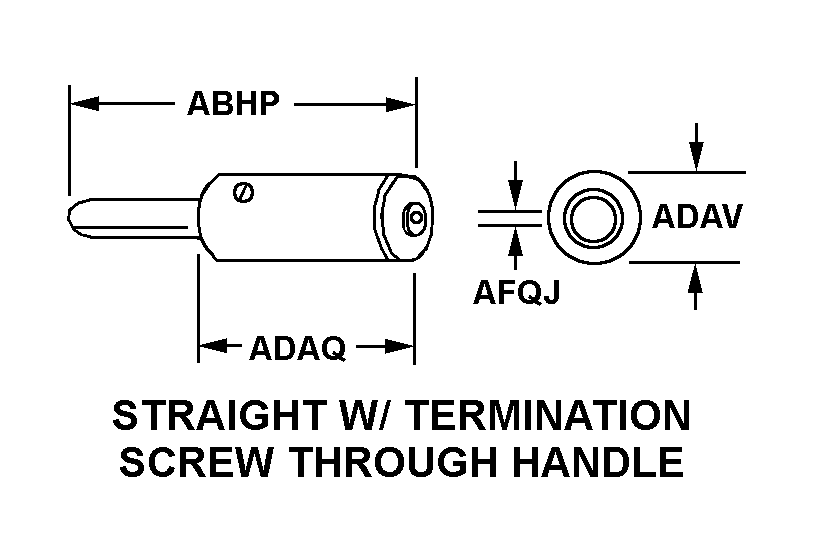

| BODY STYLE | 6 STRAIGHT W/TERMINATION SCREW THROUGH HANDLE |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| BODY LENGTH | ANY ACCEPTABLE |
| OVERALL DIAMETER | ANY ACCEPTABLE |
| CABLE ENTRANCE DIAMETER | ANY ACCEPTABLE |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | METAL FINGER ANY ACCEPTABLE HANDLE ANY ACCEPTABLE TERMINAL |
| SURFACE TREATMENT | SILVER FINGER ANY ACCEPTABLE HANDLE |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | SCREW |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | FINGER SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-335-0423
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-335-0423
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
