NSN 5935-00-283-2950 MATE995, MATE9-95, S16834

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-283-2950 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MATE995, MATE9-95, S16834, SCD68418, SCDL68417, SCGL57501, U77/U, U-77/U, MILC10544, PL 61711-002 IT2, PL61711002IT2, Q 5 3142 5393, Q531425393, FUNKSTV72A, U77U, 0187165, 13036007, 13036-007, 13036017, 13036-017, 16428, 164-28, 1756047, 2432220140, 246.050.000, 246-050-000, 267000801PC5, 2670-008-01PC5, 369-1016-00, 3691016000, 369-1016-000, 4118710004, 4118710-004, 45208360, 58004007015, 5800400-7015, 5851, 585-1, 59000250007000, 5900025-0007-000, 5L.4541.001.10, 5L454100110, 61711-002 IT2, 61711002IT2, 6233, 69B37533, 69B37534, 6L4541009484391, 6L4541-009-484391, 810BA0578 , 5935-00-283-2950, 00-283-2950, 5935002832950 , 452.08360, 369101600, 246050000, 002832950

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-283-2950	01938 ( CONNECTOR, PLUG, ELECTRICAL )

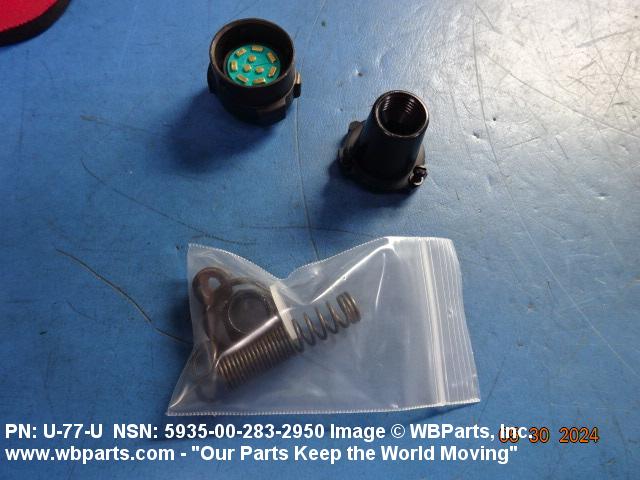

Drawings & Photos | NSN 5935-00-283-2950

Part Number	Request Date	QTY	Origin
U77/U	2024-08-233	617	DIBBS
U-77/U	2024-08-233	617	DIBBS
U77U	2024-08-233	617	DIBBS
U77/U	2024-06-165	349	DIBBS
U-77/U	2024-06-165	349	DIBBS
U77U	2024-06-165	349	DIBBS
5935-00-283-2950	2024-05-137	4	United States
U77/U	2023-09-264	265	DIBBS
U-77/U	2023-09-264	265	DIBBS
U77U	2023-09-264	265	DIBBS
U77/U	2023-08-240	1074	DIBBS
U-77/U	2023-08-240	1074	DIBBS
U77U	2023-08-240	1074	DIBBS
U77/U	2023-04-96	408	DIBBS
U-77/U	2023-04-96	408	DIBBS
U77U	2023-04-96	408	DIBBS
U77/U	2023-02-33	593	DIBBS
U-77/U	2023-02-33	593	DIBBS
U77U	2023-02-33	593	DIBBS
U77/U	2022-07-209	233	DIBBS
U-77/U	2022-07-209	233	DIBBS
U77U	2022-07-209	233	DIBBS
U77/U	2022-02-55	298	DIBBS
U-77/U	2022-02-55	298	DIBBS
U77U	2022-02-55	298	DIBBS
U77/U	2021-07-203	222	DIBBS
U77U	2021-07-203	222	DIBBS
U77U	2021-06-161	5	Italy
U77/U	2021-05-147	181	DIBBS
U77U	2021-05-147	181	DIBBS
6233	2021-01-06	2	Canada
6233	2020-11-329	2	US
SCDL68417	2020-06-157	1	United States
U77/U	2020-02-44	665	DIBBS
U77U	2020-02-44	665	DIBBS
U77/U	2019-02-50	550	DIBBS
U77U	2019-02-50	550	DIBBS
U77/U	2019-02-38	550	DIBBS
U77U	2019-02-38	550	DIBBS
5935-00-283-2950	2018-12-348	503	US
5935-00-283-2950	2018-12-344	503	DIBBS
5935-00-283-2950	2018-02-44	20	United States
5935-00-283-2950	2017-11-318	1063	DIBBS
5935-00-283-2950	2017-07-198	1037	DIBBS
5935-00-283-2950	2017-06-180	1000	DIBBS
5935-00-283-2950	2017-06-178	822	DIBBS
5935-00-283-2950	2017-05-145	822	DIBBS
5935-00-283-2950	2017-05-124	610	DIBBS
5935-00-283-2950	2017-03-81	365	DIBBS
U77U	2014-11-324	520	United States
5935-00-283-2950	2014-11-307	520	DIBBS
5935-00-283-2950	2014-07-195	900	DIBBS
5935-00-283-2950	2014-03-78	13	US
5935-00-283-2950	2014-03-78	39	US
5935-00-283-2950	2013-10-280	40	US
5935-00-283-2950	2013-10-280	50	US
5935-00-283-2950	2013-03-78	450	DIBBS
5935-00-283-2950	2012-09-249	88	DIBBS
5935-00-283-2950	2010-11-319	291	DIBBS
5935-00-283-2950	2010-09-260	322	DIBBS
6233	2010-03-90	4	us
5935-00-283-2950	2007-12-347	700	DIBBS
5935-00-283-2950	2007-10-283	725	DIBBS
5935-00-283-2950	2007-07-211	2618	DIBBS
5935-00-283-2950	2007-06-158	1115	DIBBS

Cross Reference | NSN 5935-00-283-2950

Part Number	Cage Code	Manufacturer
0187165	D0894	ROHDE & SCHWARZ GMBH & CO. KG
13036-007	12763	DYNALEC CORPORATION
13036-017	12763	DYNALEC CORPORATION
164-28	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
164-28	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
164-28	A1508	RHEINMETALL ITALIA SPA
164-28	C2463	RHEINMETALL SOLDIER ELECTRONICS GMB
164-28	K1100	AMPHENOL LTD
164-28	S3092	RHEINMETALL AIR DEFENCE AG
1756047	80064	NAVAL SHIP SYSTEMS COMMAND
2432220140	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
246-050-000	D0800	DEUTSCHE ELNO SOCIETE NOUVELLE GMBH
246.050.000	D0800	DEUTSCHE ELNO SOCIETE NOUVELLE GMBH
2670-008-01PC5	96169	ELECTRIC BOAT CORPORATION
369-1016-00	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
369-1016-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
4118710-004	05869	RAYTHEON COMPANY DBA RAYTHEON
4118710-004	82577	RAYTHEON COMPANY DBA RAYTHEON
452.08360	D0800	DEUTSCHE ELNO SOCIETE NOUVELLE GMBH
5800400-7015	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
585-1	D2630	TELEGAERTNER KARL GAERTNER GMBH
5900025-0007-000	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
5900025-0007-000	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
5935002832950	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5L.4541.001.10	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
61711-002 IT2	12763	DYNALEC CORPORATION
6233	U0523	PAMBRY ELECTRONICS LTD
69B37533	97151	AIR FORCE LOGISTICS COMMAND 88 0SS OSE
69B37534	97151	AIR FORCE LOGISTICS COMMAND 88 0SS OSE
6L4541-009-484391	D0327	SELEX COMMUNICATIONS GMBH
810BA0578	A0199	OTO MELARA SPA
FUNKSTV72A	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS
MATE9-95	K0386	CLEMENT CLARKE INTERNATIONAL LTD
MILC10544	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PL 61711-002 IT2	12763	DYNALEC CORPORATION
Q 5 3142 5393	C2463	RHEINMETALL SOLDIER ELECTRONICS GMB
Q 5 3142 5393	S3092	RHEINMETALL AIR DEFENCE AG
S16834	80212	BAE SYSTEMS LAND & ARMAMENTS L.P.
SCD68418	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SCDL68417	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SCGL57501	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
U-77/U	13511	AMPHENOL CADRE DIV BUNKER RAMO CORP
U-77/U	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
U-77/U	C3944	ASC SCHUEBEL ELECTRONIC GMBH
U-77/U	K7111	ELMATIC CARDIFF LTD
U77/U	25330	COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR
U77U	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
U77U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
U77U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-283-2950

Compare

Related Products | NSN 5935-00-283-2950

5935-00-283-2951, 5935-00-283-3000, 5935-00-283-3005, 5935-00-283-3347, 5935-00-283-3350

Technical Data | NSN 5935-00-283-2950

Characteristic	Specifications
BODY STYLE	2E STRAIGHT SHAPE
OVERALL LENGTH	2.000 INCHES NOMINAL
OVERALL DIAMETER	1.281 INCHES NOMINAL
CONNECTOR LOCKING METHOD	BAYONET PIN
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
SHELL TYPE	SOLID
SHELL MATERIAL	STEEL CORROSION RESISTING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	3 SINGLE MATING END 1ST CONTACT GROUPING 7 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING FLAT PIN SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	0.5 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	60.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	WATERTIGHT
TEST DATA DOCUMENT	81349-MIL-C-10544 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-10544 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.010 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACE SILVER
III END ITEM IDENTIFICATION	MISSILE MINUTEMAN LGM-30 OR SHIP, OHIO CLASS SSN (TRIDENT)
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILC10544
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	U77U

Restrictions/Controls & Freight Information | NSN 5935-00-283-2950

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-283-2950

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
