NSN 5935-00-261-7962 ST5M1646001, ST5M1646-001, GC829R1
Product Details | RECEPTACLE DUMMY CONNECTOR
5935-00-261-7962 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: ST5M1646001, ST5M1646-001, GC829R1, 10135436 , 31335231, 31-33523-1, 335231, 33-523-1, 33523-1, 5935-00-261-7962, 00-261-7962, 5935002617962, 002617962
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUL 1973 | 00-261-7962 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

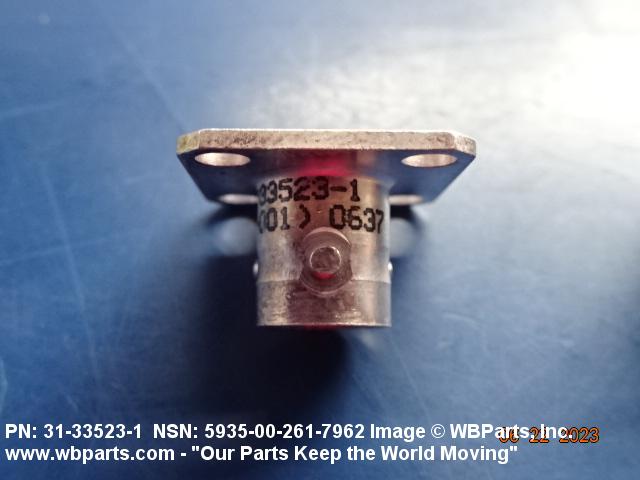

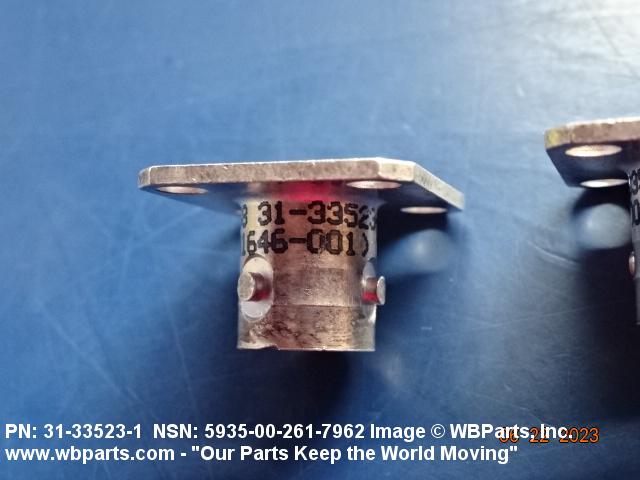

Drawings & Photos | NSN 5935-00-261-7962
Demand History | NSN 5935-00-261-7962
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-261-7962 | 2023-05-130 | 20 | Spain |
| 5935-00-261-7962 | 2023-05-130 | 20 | Spain |
| 5935-00-261-7962 | 2020-04-94 | 59 | US |
| 5935-00-261-7962 | 2016-07-213 | 73 | DIBBS |
| 5935-00-261-7962 | 2016-03-84 | 92 | DIBBS |
| 5935-00-261-7962 | 2016-03-73 | 92 | DIBBS |
| 5935-00-261-7962 | 2016-03-71 | 7 | ES |
| 5935-00-261-7962 | 2016-01-10 | 77 | DIBBS |
| 5935-00-261-7962 | 2015-01-25 | 82 | DIBBS |
| 5935-00-261-7962 | 2015-01-01 | 85 | DIBBS |
| 31335231 | 2014-12-344 | 33 | United States |
| 5935-00-261-7962 | 2014-10-281 | 33 | DIBBS |
| 5935-00-261-7962 | 2013-03-65 | 25 | US |
| 5935-00-261-7962 | 2013-02-32 | 39 | DIBBS |
| 5935-00-261-7962 | 2010-04-95 | 22 | DIBBS |
| 5935-00-261-7962 | 2005-12-344 | 63 | DIBBS |
Cross Reference | NSN 5935-00-261-7962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31-33523-1 | 74868 | AMPHENOL CORPORATION |
| 33-523-1 | 60674 | MICROWAVE DEVICES INC |
| 33523-1 | 60674 | MICROWAVE DEVICES INC |
| 33523-1 | 74868 | AMPHENOL CORPORATION |
| GC829R1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| ST5M1646-001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-261-7962
Related Products | NSN 5935-00-261-7962
Technical Data | NSN 5935-00-261-7962
| Characteristic | Specifications |
|---|---|

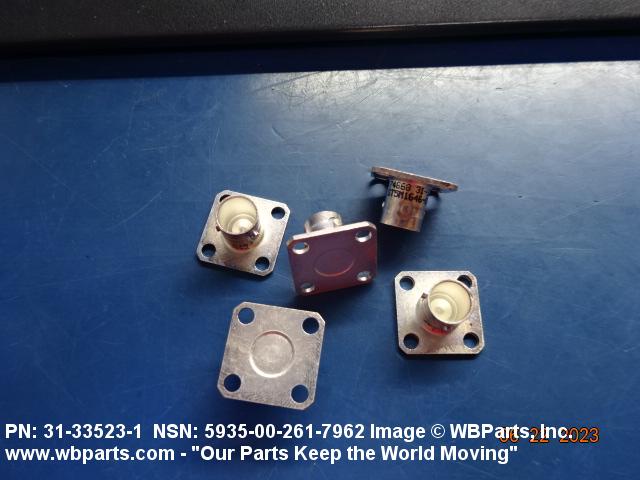

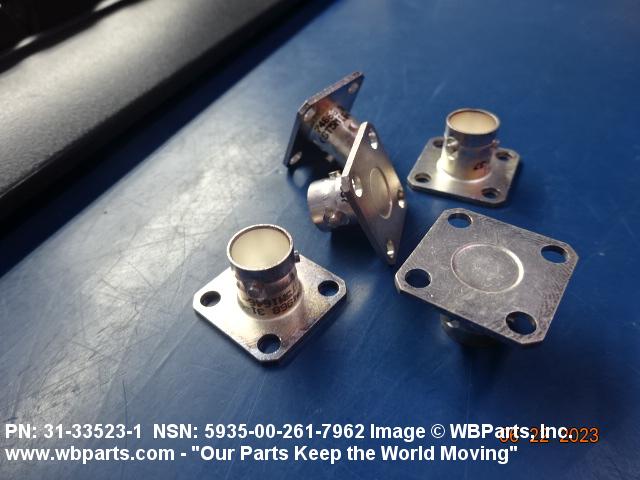

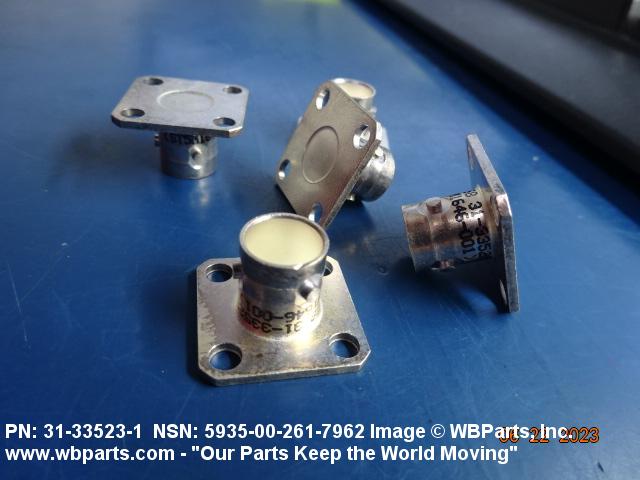

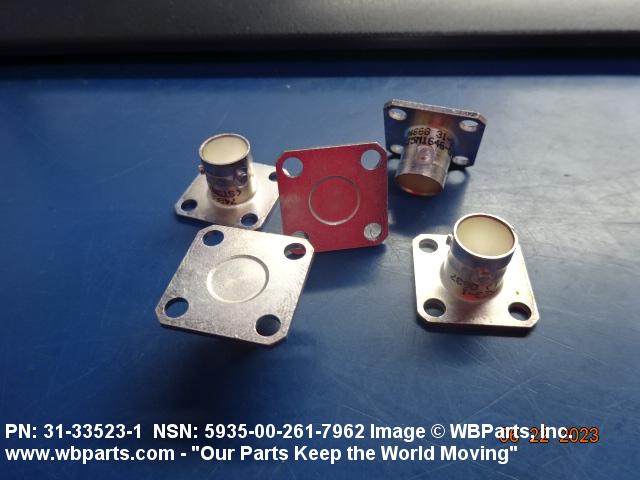

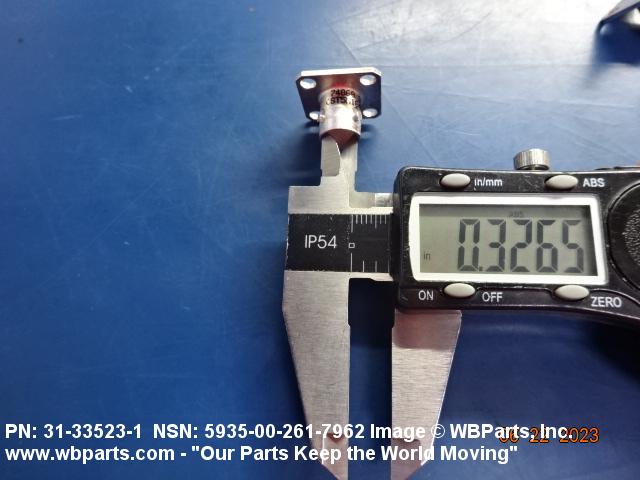

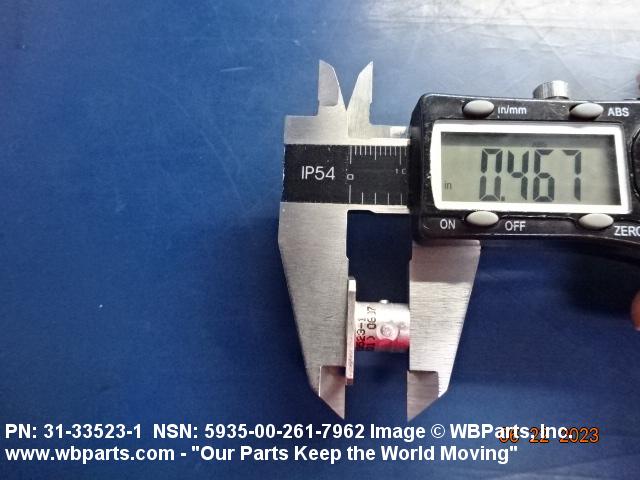

| BODY STYLE | 28G STRAIGHT SHAPE, FLANGE MOUNT EXTERNAL COUPLING |
| OVERALL LENGTH | 0.465 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |

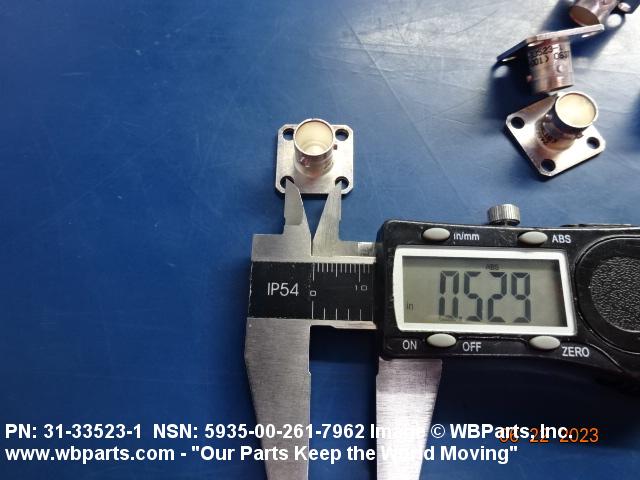

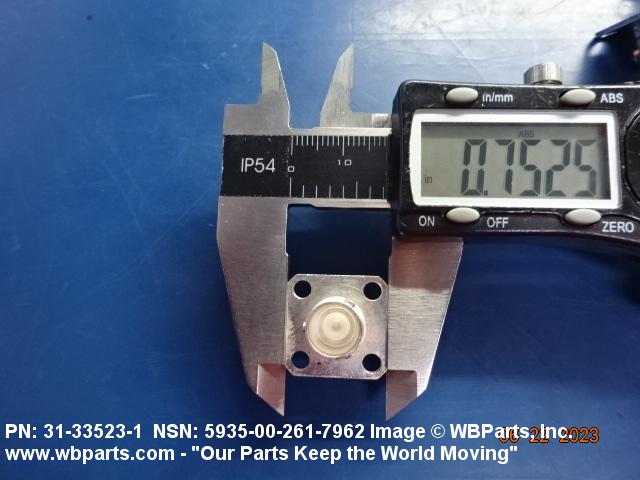

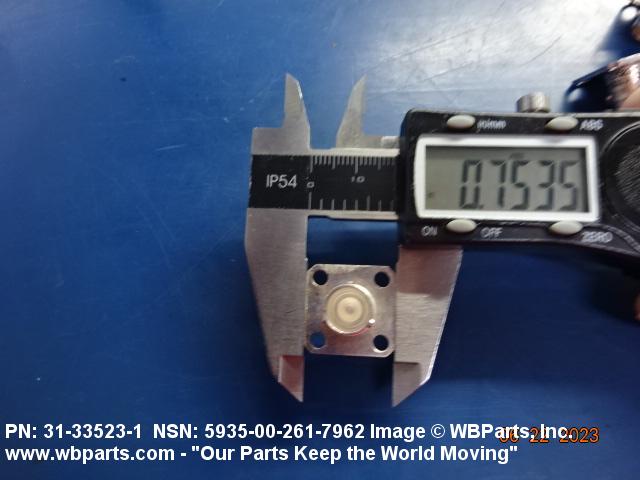

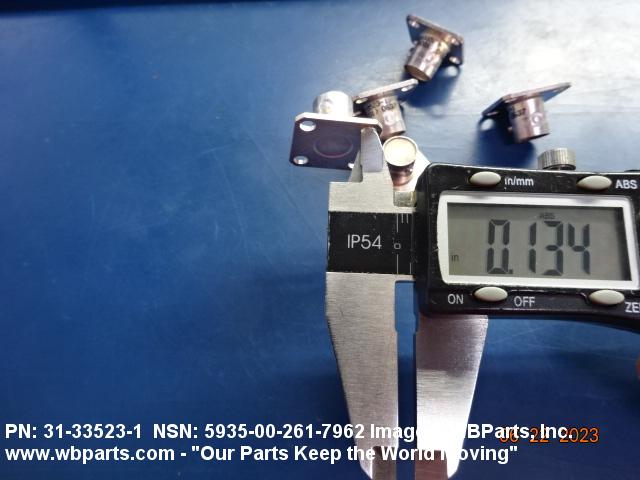

| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.521 INCHES MINIMUM AND 0.541 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.521 INCHES MINIMUM AND 0.541 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABAY NONSTD SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 0 SINGLE MATING END SINGLE CONTACT GROUPING |
Restrictions/Controls & Freight Information | NSN 5935-00-261-7962
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
