NSN 5935-00-259-1982 EC3788, LD476832, 12Z71111
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-259-1982 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: EC3788, LD476832, 12Z71111, 12Z7111-1, 1481619, 1481619A, 5935-00-259-1982, 00-259-1982, 5935002591982, 002591982
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-1982 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-259-1982
Cross Reference | NSN 5935-00-259-1982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z7111-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 1481619 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 1481619A | 82878 | ROWE INDUSTRIES INC |
| EC3788 | 08484 | BREEZE-EASTERN CORPORATION |
| LD476832 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-259-1982
Technical Data | NSN 5935-00-259-1982
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 3.645 INCHES MINIMUM AND 3.655 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.360 INCHES MINIMUM AND 3.390 INCHES MAXIMUM |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 3.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.960 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

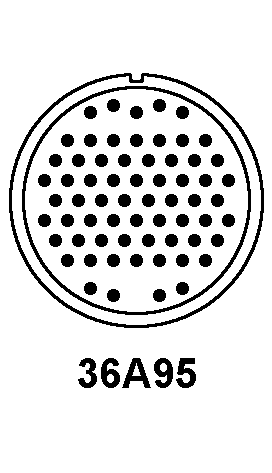

| CONTACT POSITION ARRANGEMENT STYLE | CUAA 36A95 SINGLE MATING END |
