NSN 5935-00-258-4108 PS75239, UC3112, UC3-11-2
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-258-4108 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: PS75239, UC3112, UC3-11-2, UG311, UG3-11, 196284, 19628-4, 20032, 5935-00-258-4108, 00-258-4108, 5935002584108, 002584108
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-258-4108 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

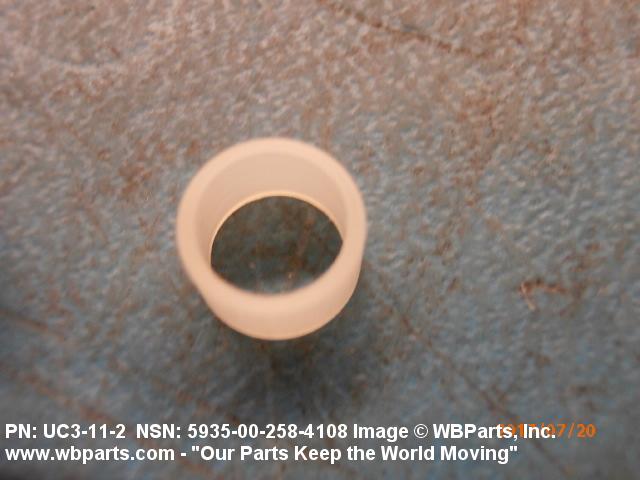

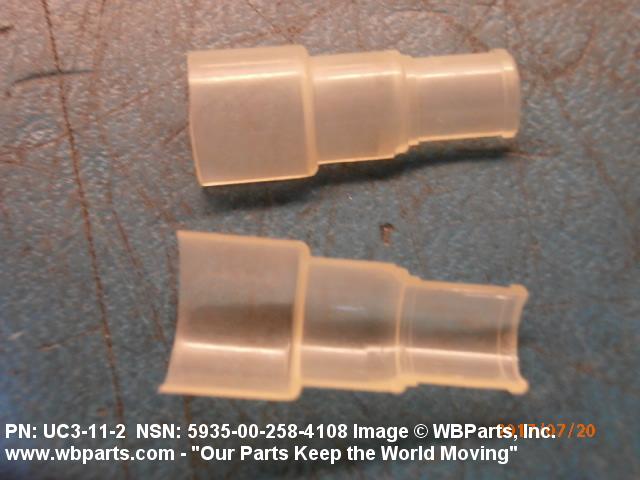

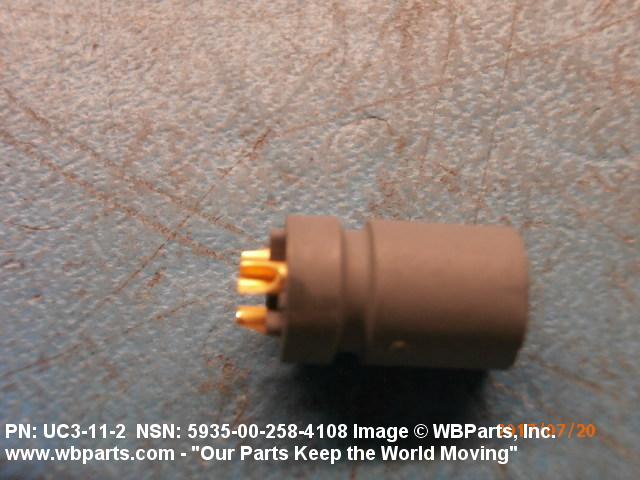

Drawings & Photos | NSN 5935-00-258-4108
Demand History | NSN 5935-00-258-4108
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-258-4108 | 2017-06-179 | 2 | United States |
Cross Reference | NSN 5935-00-258-4108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19628-4 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 20032 | 02860 | AMERICAN SEATING COMPANY |
| PS75239 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| UC3-11-2 | 71468 | ITT CORPORATION DBA I T T CANNON |
| UC3-11-2 | 81205 | THE BOEING COMPANY DBA BOEING |
| UG3-11 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-258-4108
Related Products | NSN 5935-00-258-4108
Technical Data | NSN 5935-00-258-4108
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 0.594 INCHES NOMINAL |

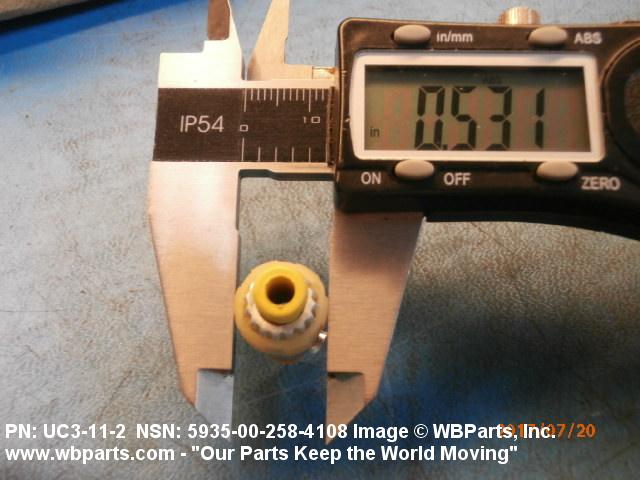

| OVERALL DIAMETER | 0.531 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |

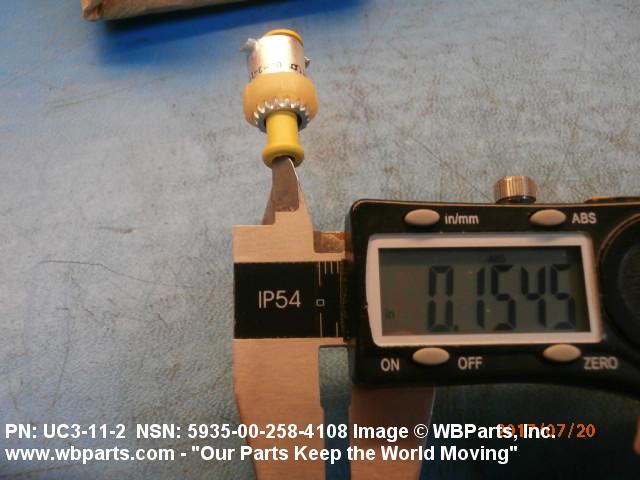

| CABLE ENTRANCE DIAMETER | 0.156 INCHES NOMINAL |
