NSN 5935-00-235-8970 MS27488, MS2748816, MS27488-16

Product Details | ELECTRICAL CONNECTOR END SEAL PLUG

5935-00-235-8970 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.

Part Alternates: MS27488, MS2748816, MS27488-16, MS27488161, MS27488-16-1, MS27488163, MS27488-16-3 , MS27488A16, MS3187/16-2, MS3187162, MS3187-16-2, M83723/28-16, M837232516, M83723-25-16, M837232816, B89398, GHN20109005, GHN20109-005 , MILC38999, MIL-C-38999, MILDTL38999, MIL-DTL-38999, 017000663001, 017-000663-001, 1040599616, 10-405996-16, 535530-162, 14 488 01, 14.488.01, 1448801, 2650421003, 265-0421-003, 2KP508, 34000430016, 3400-043-0016, 3400-043-16, 3513 724 04211, 351372404211, 3590625010, 359-0625-010, 38 071-001, 3804692, 38071001, 40052216, 411892, 531/4/02952/002, 531402952002, 642AS20632, 642AS2063-2, 5935-00-235-8970, 00-235-8970, 5935002358970, 002358970, 112708774, 535530162, 340004316

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 OCT 1969	00-235-8970	27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR )

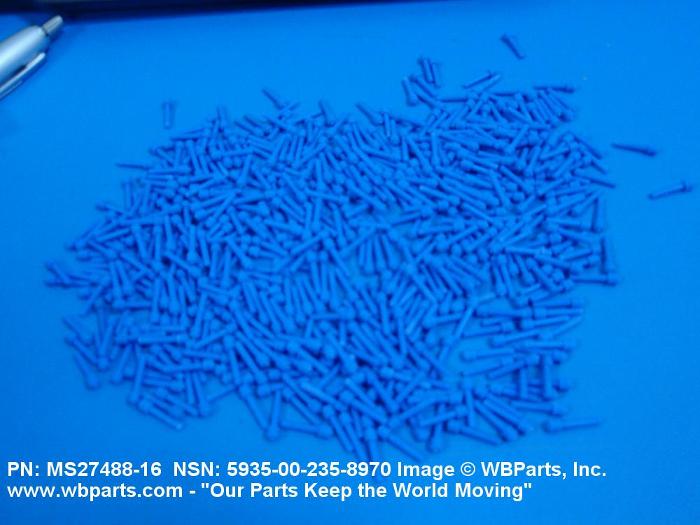

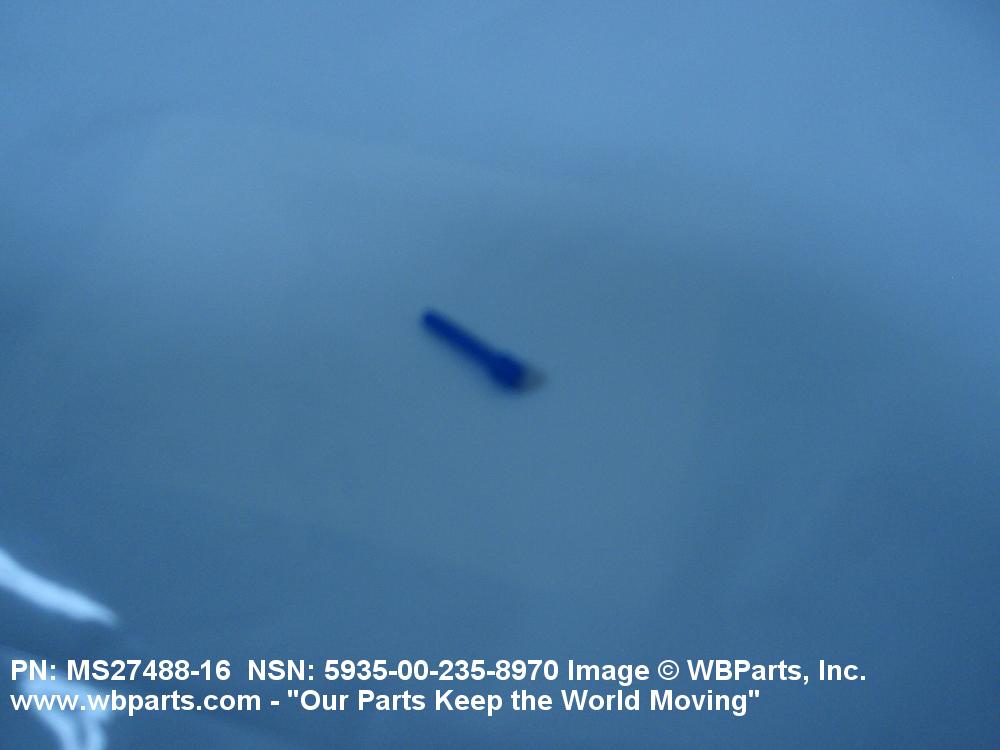

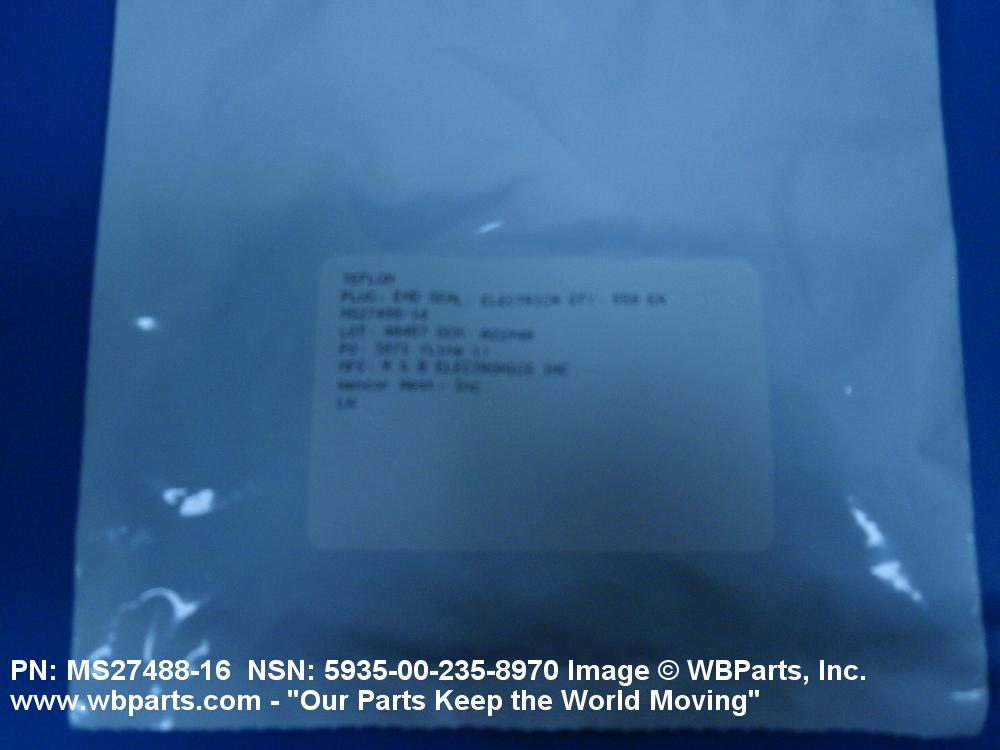

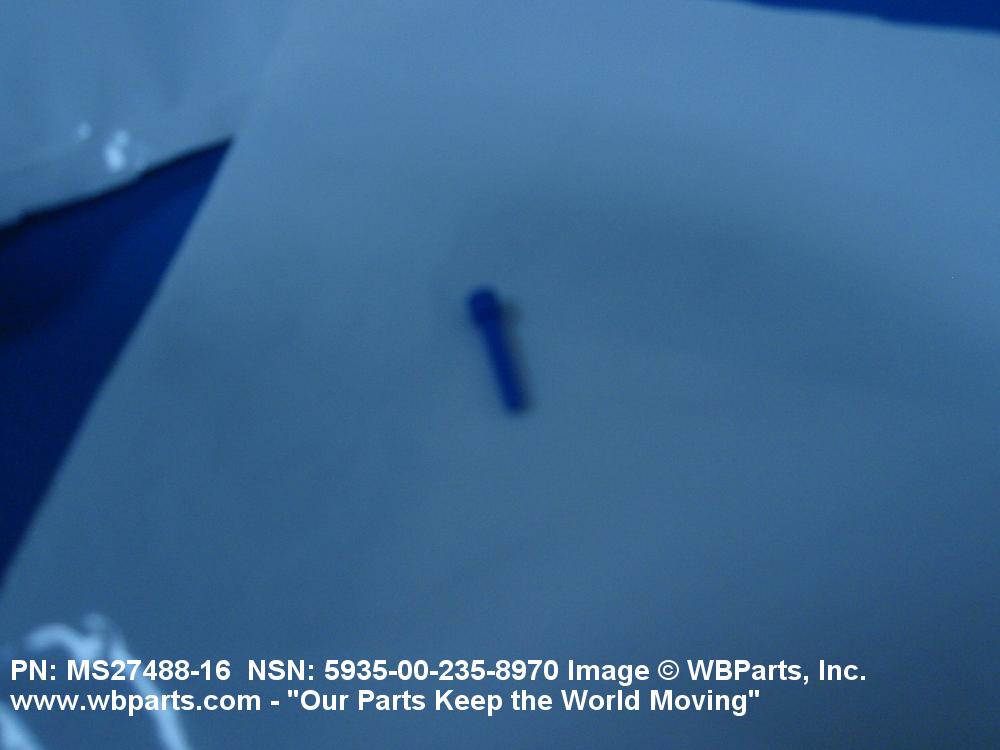

Drawings & Photos | NSN 5935-00-235-8970

Part Number	Request Date	QTY	Origin
MS2748816	2024-08-233	500	Japan
5935-00-235-8970	2023-03-66	23	Malaysia
MS27488161	2021-09-264	90	United States
5935-00-235-8970	2019-05-139	64	United States
MS27488-16-3	2019-05-130	3692	Turkey
5935-00-235-8970	2019-01-21	8	United States
5935-00-235-8970	2018-12-348	47600	DIBBS
5935-00-235-8970	2018-12-336	47600	DIBBS
MS2748816	2018-07-205	306	United States
5935-00-235-8970	2018-02-57	30000	DIBBS
5935-00-235-8970	2017-11-309	32900	DIBBS
5935-00-235-8970	2017-06-179	132	United States
5935-00-235-8970	2017-01-12	10407	DIBBS
MS27488161	2016-11-328	20	AU
MS27488161	2016-11-315	4	United Kingdom
5935-00-235-8970	2016-04-109	3000	DIBBS
MS27488163	2015-11-308	50	US
MS2748816	2015-10-282	1	Hong Kong
MS3187162	2015-10-282	1	Hong Kong
MS27488-16	2015-04-91	10	Greece
MS27488-16-1	2015-04-91	10	Greece
MS3187162	2014-08-227	8	United States
5935-00-235-8970	2014-07-194	79835	DIBBS
MS2748816	2014-01-23	576	United States
MS2748816	2013-06-176	10	United States
5935-00-235-8970	2013-03-80	61665	DIBBS
642AS20632	2012-10-279	1	United States
MS27488-16	2012-09-251	162	US
MS3187162	2012-06-166	1	US
MILC38999	2011-12-340	50	China
M837232816	2011-10-300	1	US
5935-00-235-8970	2011-08-220	43264	DIBBS
MS2748816	2011-04-108	107	United States
MS27488161	2011-02-57	20	Malaysia
MS2748816	2010-08-228	50	Brazil
5935-00-235-8970	2010-07-183	400	US
MILC38999	2010-03-69	10	United States
MILC38999	2010-03-68	13	United States
5935-00-235-8970	2010-02-39	468	US
5935-00-235-8970	2010-01-21	1	US
5935-00-235-8970	2008-08-233	550	United States
5935-00-235-8970	2008-08-225	89333	DIBBS
5935-00-235-8970	2008-03-79	4800	us
5935-00-235-8970	2007-11-319	70000	DIBBS
5935-00-235-8970	2007-04-108	5300	Malaysia
5935-00-235-8970	2007-04-94	59883	DIBBS

Cross Reference | NSN 5935-00-235-8970

Part Number	Cage Code	Manufacturer
017-000663-001	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
10-405996-16	13509	AMPHENOL CABLES ON DEMAND CORP.
10-405996-16	K1100	AMPHENOL LTD
112708774	A0199	OTO MELARA SPA
14 488 01	D0080	LEACH INTERNATIONAL GERMANY GMBH
14.488.01	K6265	LEACH INTERNATIONAL UK LTD
265-0421-003	94756	BOEING COMPANY, THE DBA BOEING
2KP508	45152	OSHKOSH CORPORATION
2KP508	75Q65	OSHKOSH DEFENSE, LLC
3400-043-0016	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
3400-043-0016	K1636	TYCO ELECTRONICS UK LTD
3400-043-0016	U4296	TYCO ELECTRONICS UK LTD
3400-043-16	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
3400-043-16	K1636	TYCO ELECTRONICS UK LTD
3400-043-16	U4296	TYCO ELECTRONICS UK LTD
3513 724 04211	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
359-0625-010	54669	BOEING SERVICE COMPANY DBA BOEING
359-0625-010	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
38 071-001	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
3804692	K0680	ROLLS-ROYCE AIRLINES
411892	K0656	BAE SYSTEMS (OPERATIONS) LTD
531/4/02952/002	U2982	BAE SYSTEMS DEFENCE SYSTEMS LTD
535530-162	96214	RAYTHEON COMPANY DBA RAYTHEON
642AS2063-2	30003	NAVAL AIR SYSTEMS COMMAND
B89398	K0967	MBDA UK LTD
M83723-25-16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/28-16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-38999	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-38999	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27488	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27488-16	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
MS27488-16	13509	AMPHENOL CABLES ON DEMAND CORP.
MS27488-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27488-16-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27488-16-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27488A16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3187-16-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3187/16-2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-235-8970

Compare

Related Products | NSN 5935-00-235-8970

5935-00-235-8971, 5935-00-235-8972, 5935-00-235-8973, 5935-00-235-8979, 5935-00-235-8986

Technical Data | NSN 5935-00-235-8970

Characteristic	Specifications

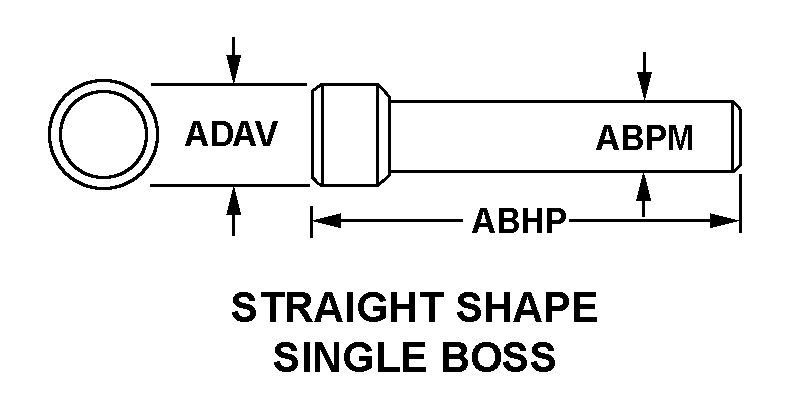

STYLE DESIGNATOR	2H STRAIGHT SHAPE SINGLE BOSS
OVERALL LENGTH	0.544 INCHES MINIMUM AND 0.584 INCHES MAXIMUM
BODY DIAMETER	0.073 INCHES MINIMUM AND 0.093 INCHES MAXIMUM
OVERALL DIAMETER	0.128 INCHES MINIMUM AND 0.138 INCHES MAXIMUM
MATERIAL	PLASTIC
SURFACE TREATMENT	ANY ACCEPTABLE
TEST DATA DOCUMENT	81349-MILC38999 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MILC38999 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-38999
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27488-16-1

Restrictions/Controls & Freight Information | NSN 5935-00-235-8970

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating	P	77.5
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-235-8970

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
