NSN 5935-00-201-9768 S308CCT, S-308-CCT, PL1051
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-201-9768 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: S308CCT, S-308-CCT, PL1051, 7106071P1, 7473192P19, 8107631, 9A38320, 101471, 1B104562, 2613208030, 261-32-08-030, 430163-502, 450957, 4907000055, 4907-000055, 49564, 5935-00-201-9768, 00-201-9768, 5935002019768, 430163502, 002019768
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-201-9768 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-201-9768
Demand History | NSN 5935-00-201-9768
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S308CCT | 2006-06-153 | 50 | UY |
Cross Reference | NSN 5935-00-201-9768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 101471 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 1B104562 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 1B104562 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 261-32-08-030 | 71785 | CINCH CONNECTORS, INC. |
| 430163-502 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 450957 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 4907-000055 | 81833 | TRANSDIGM, INC. DBA AEROCONTROLEX |
| 49564 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 7106071P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7473192P19 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 8107631 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 9A38320 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 9A38320 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| PL1051 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| S-308-CCT | 71785 | CINCH CONNECTORS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-201-9768
Related Products | NSN 5935-00-201-9768
Technical Data | NSN 5935-00-201-9768
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18A HOOD, TOP OPENING W/CLAMP |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.562 INCHES NOMINAL |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.500 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | METAL |
| SHELL SURFACE TREATMENT | PAINT |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

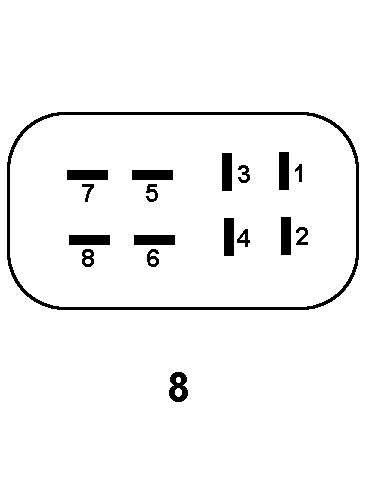

| CONTACT POSITION ARRANGEMENT STYLE | AJCF 8 SINGLE MATING END |
