NSN 5935-00-201-9721 K03163SN, K03-16-3SN, 6015136
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-201-9721 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: K03163SN, K03-16-3SN, 6015136, 9975773, 5935-00-201-9721, 00-201-9721, 5935002019721, 002019721
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-201-9721 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-201-9721
Cross Reference | NSN 5935-00-201-9721
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6015136 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6015136 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6015136 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 9975773 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| K03-16-3SN | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-201-9721
Related Products | NSN 5935-00-201-9721
Technical Data | NSN 5935-00-201-9721
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 0.734 INCHES NOMINAL |
| OVERALL DIAMETER | 1.172 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2G |
| THREAD QUANTITY PER INCH | 6 |
| THREAD PITCH DIAMETERS | 0.200 TO 0.220 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

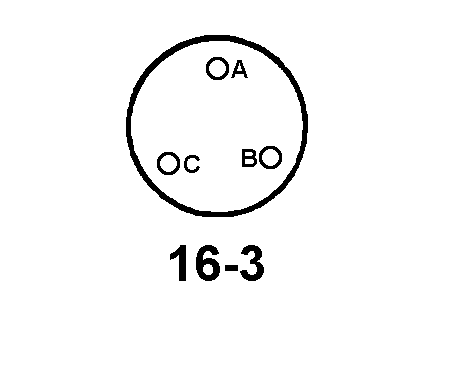

| CONTACT POSITION ARRANGEMENT STYLE | ADAP 16-3 SINGLE MATING END |
