NSN 5935-00-115-2306 MS271423, MS27142-3, 0700386

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-115-2306 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS271423, MS27142-3, 0700386, 10502464, 2CK461 , 2KP505, 7982736, 5935-00-115-2306, 00-115-2306, 5935001152306, 001152306

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 SEP 1968	00-115-2306	01938 ( CONNECTOR, PLUG, ELECTRICAL )

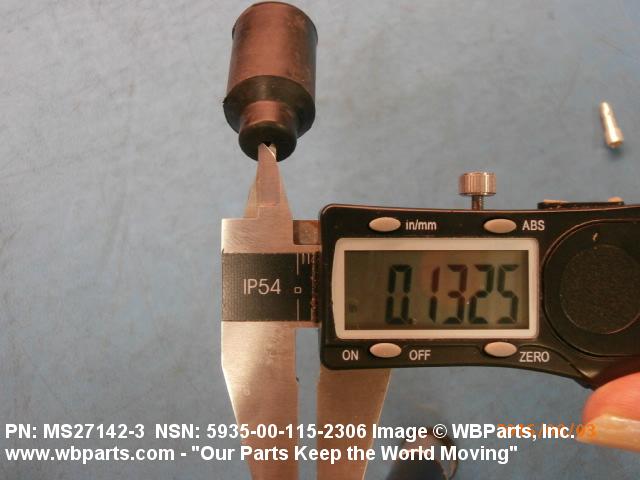

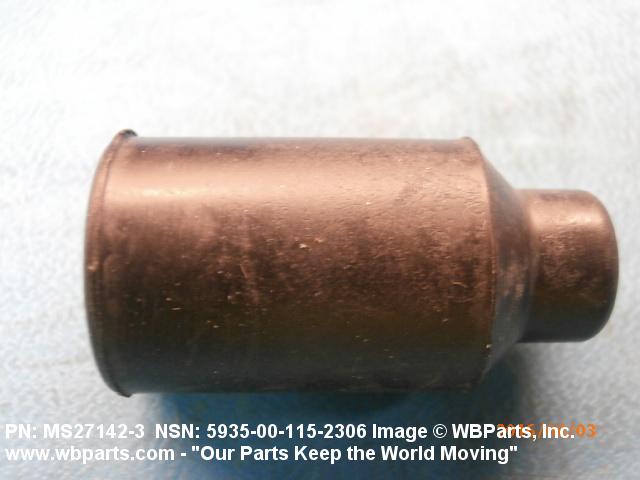

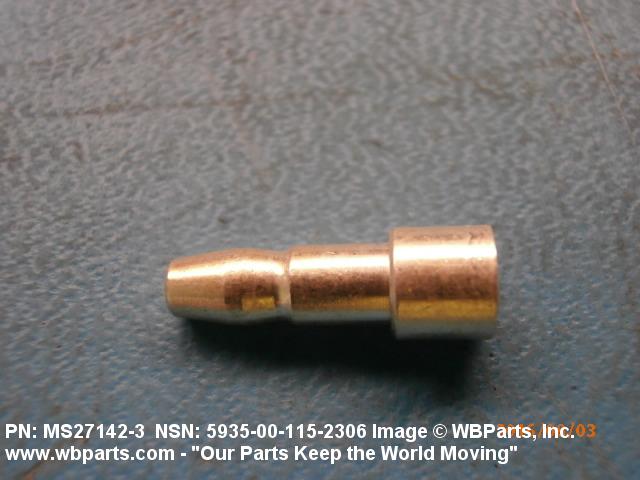

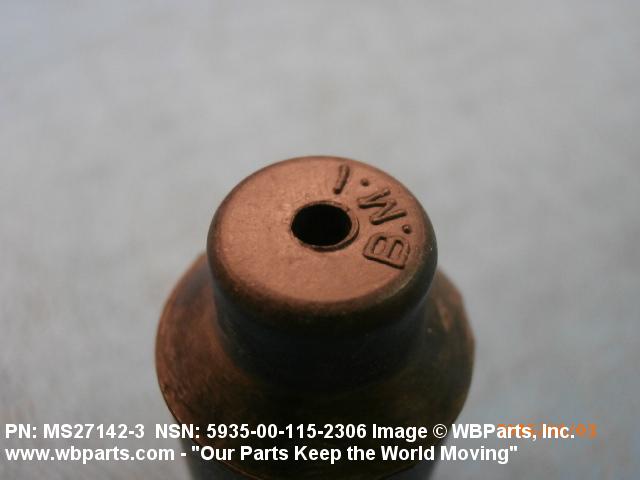

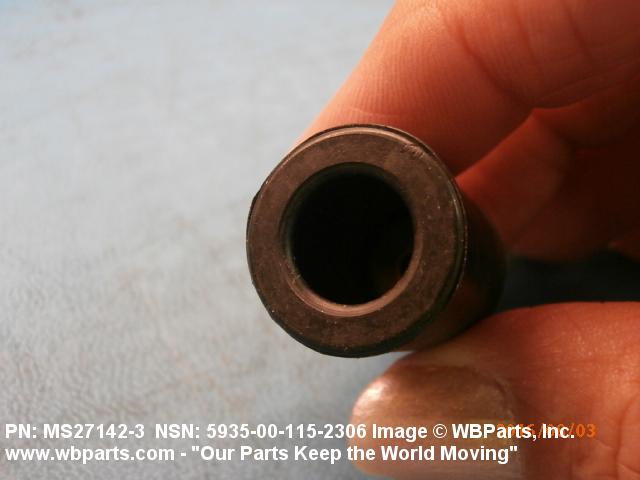

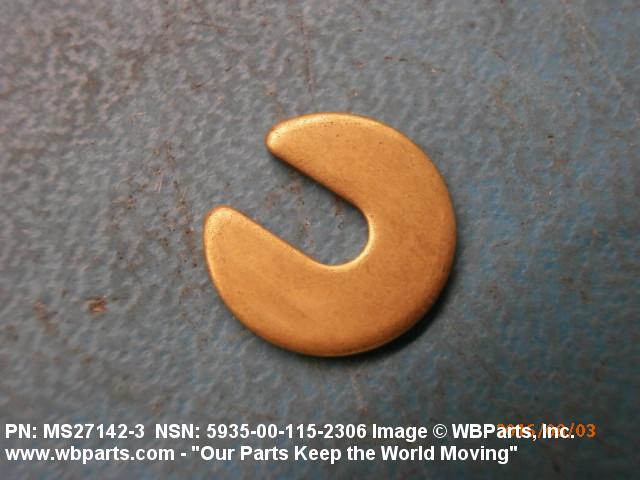

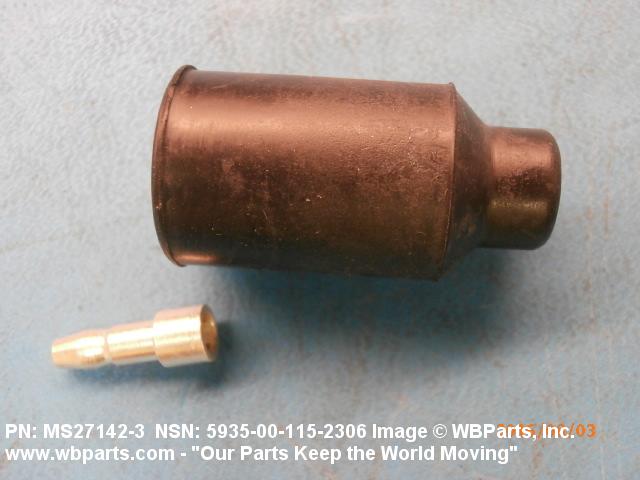

Drawings & Photos | NSN 5935-00-115-2306

Part Number	Request Date	QTY	Origin
MS271423	2023-03-72	500	United States
5935-00-115-2306	2020-01-23	6862	DIBBS
5935-00-115-2306	2018-11-312	6374	DIBBS
5935-00-115-2306	2018-06-174	20	US
5935-00-115-2306	2018-03-65	110	United States
5935-00-115-2306	2018-02-53	200	United States
5935-00-115-2306	2017-12-347	3	US
5935-00-115-2306	2017-11-334	5674	DIBBS
5935-00-115-2306	2017-10-303	3677	DIBBS
5935-00-115-2306	2017-10-296	1	DIBBS-KIT
MS27142-3	2017-10-296	1
5935-00-115-2306	2017-10-290	3677	DIBBS
5935-00-115-2306	2016-12-339	2969	DIBBS
MS271423	2016-08-214	50	US
MS271423	2016-07-203	5	United States
5935-00-115-2306	2016-06-182	45	US
5935-00-115-2306	2016-06-182	100	US
5935-00-115-2306	2015-08-230	2	DIBBS
5935-00-115-2306	2015-08-218	2	DIBBS
5935-00-115-2306	2015-07-201	2	DIBBS
5935-00-115-2306	2015-07-189	2	DIBBS
MS271423	2015-05-140	50	US
MS271423	2015-05-140	8000	US
5935-00-115-2306	2015-05-125	1	DIBBS
5935-00-115-2306	2015-04-110	1	DIBBS
5935-00-115-2306	2015-04-98	1	DIBBS
5935-00-115-2306	2015-03-68	3	DIBBS
5935-00-115-2306	2015-02-56	3	DIBBS
5935-00-115-2306	2014-10-300	1	DIBBS
5935-00-115-2306	2014-10-300	1	DIBBS
5935-00-115-2306	2014-10-289	2	DIBBS
5935-00-115-2306	2014-10-289	1	DIBBS
5935-00-115-2306	2014-10-287	1	DIBBS
5935-00-115-2306	2014-10-279	2	DIBBS
5935-00-115-2306	2014-09-269	300	DIBBS
5935-00-115-2306	2014-09-258	300	DIBBS
5935-00-115-2306	2014-09-258	800	DIBBS
MS271423	2014-01-28	150	US
MS271423	2013-09-259	150	Turkey
5935-00-115-2306	2012-10-296	120	Turkey
5935-00-115-2306	2011-12-341	300	CH
MS271423	2011-08-221	10	AU
5935-00-115-2306	2011-06-167	446	US
MS271423	2011-04-104	50	US
MS271423	2011-02-48	17	US
MS271423	2011-02-46	17	US
MS271423	2011-01-26	16000	US
5935-00-115-2306	2010-09-250	600	DIBBS
MS271423	2010-06-173	100	India
5935-00-115-2306	2009-12-341	10	US
5935-00-115-2306	2009-11-310	50	US
5935-00-115-2306	2009-09-273	15000	MX
5935-00-115-2306	2009-04-93	10	DIBBS
5935-00-115-2306	2008-08-227	1441	DIBBS
5935-00-115-2306	2008-04-106	1000	DIBBS
5935-00-115-2306	2008-04-101	1000	DIBBS
5935-00-115-2306	2008-02-36	1349	DIBBS
MS271423	2008-01-20	220	us
5935-00-115-2306	2007-10-302	2609	DIBBS
5935-00-115-2306	2007-09-248	1666	DIBBS

Cross Reference | NSN 5935-00-115-2306

Part Number	Cage Code	Manufacturer
0700386	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
10502464	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
2CK461	45152	OSHKOSH CORPORATION
2CK461	75Q65	OSHKOSH DEFENSE, LLC
2KP505	45152	OSHKOSH CORPORATION
7982736	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
MS27142-3	73342	ALLISON TRANSMISSION, INC.
MS27142-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-115-2306

Compare

Related Products | NSN 5935-00-115-2306

5935-00-115-2307, 5935-00-115-2309, 5935-00-115-2435, 5935-00-115-3415, 5935-00-115-3653

Technical Data | NSN 5935-00-115-2306

Characteristic	Specifications
BODY STYLE	18C STRAIGHT SHAPE

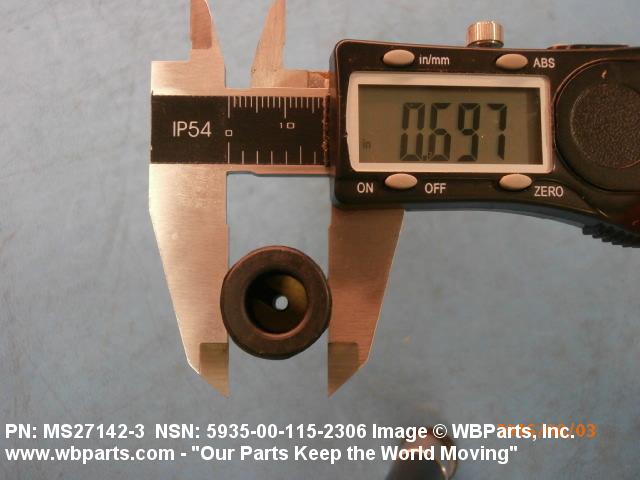

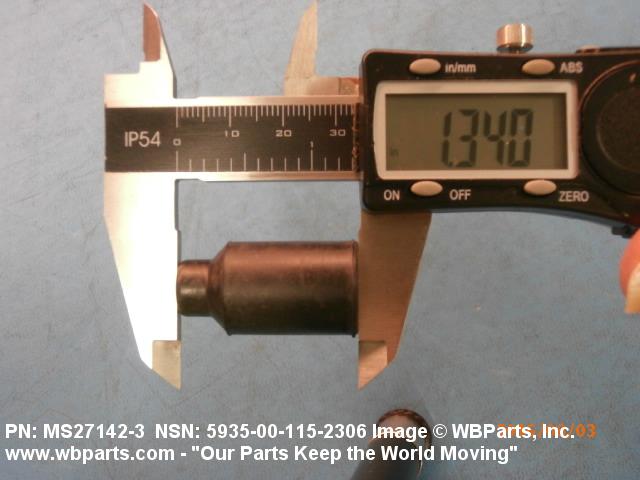

OVERALL HEIGHT	1.328 INCHES NOMINAL
