NSN 5935-00-113-7581 CE9345125, CE9345-125, 128C637H14
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-113-7581 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CE9345125, CE9345-125, 128C637H14, 5935-00-113-7581, 00-113-7581, 5935001137581, 001137581
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 SEP 1968 | 00-113-7581 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-113-7581
Demand History | NSN 5935-00-113-7581
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-113-7581 | 2018-04-92 | 5 | United States |
| 5935-00-113-7581 | 2016-08-220 | 7 | DIBBS |
| 5935-00-113-7581 | 2013-07-203 | 6 | DIBBS |
| 5935-00-113-7581 | 2013-06-177 | 6 | DIBBS |
| 5935-00-113-7581 | 2013-02-37 | 6 | DIBBS |
| CE9345125 | 2013-01-18 | 7 | United States |
| 5935-00-113-7581 | 2012-07-195 | 10 | DIBBS |
| 5935-00-113-7581 | 2012-04-102 | 3 | US |
| CE9345125 | 2012-02-33 | 2 | United States |
| 5935-00-113-7581 | 2011-12-339 | 10 | DIBBS |
| 5935-00-113-7581 | 2011-08-238 | 10 | DIBBS |
| 5935-00-113-7581 | 2011-07-203 | 1 | DIBBS |
| 5935-00-113-7581 | 2011-05-132 | 5 | United States |
| 5935-00-113-7581 | 2011-04-117 | 5 | United States |
| 5935-00-113-7581 | 2011-04-102 | 4 | DIBBS |
| 5935-00-113-7581 | 2011-03-88 | 3 | US |
| 5935-00-113-7581 | 2010-12-355 | 2 | United States |
| 5935-00-113-7581 | 2010-12-354 | 2 | US |
| 5935-00-113-7581 | 2010-06-181 | 10 | DIBBS |
| 5935-00-113-7581 | 2010-04-109 | 14 | DIBBS |
| 5935-00-113-7581 | 2009-01-08 | 9 | DIBBS |
| 5935-00-113-7581 | 2008-02-50 | 12 | DIBBS |
| 5935-00-113-7581 | 2007-05-143 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-113-7581
Related Products | NSN 5935-00-113-7581
Technical Data | NSN 5935-00-113-7581
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 6.120 INCHES NOMINAL |
| OVERALL DIAMETER | 1.620 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.375 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.560 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

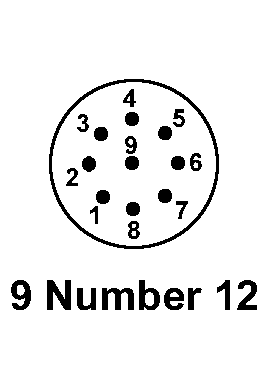

| CONTACT POSITION ARRANGEMENT STYLE | AKBU 9 NUMBER 12 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 9 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.009 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
