NSN 5935-00-105-5518 CA22459, CA2245-9, 990C865H01
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-105-5518 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: CA22459, CA2245-9, 990C865H01, 0022450009, 002245-0009, 5935-00-105-5518, 00-105-5518, 5935001055518, 001055518
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JUL 1968 | 00-105-5518 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-105-5518
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-105-5518
Related Products | NSN 5935-00-105-5518
Technical Data | NSN 5935-00-105-5518
| Characteristic | Specifications |
|---|---|

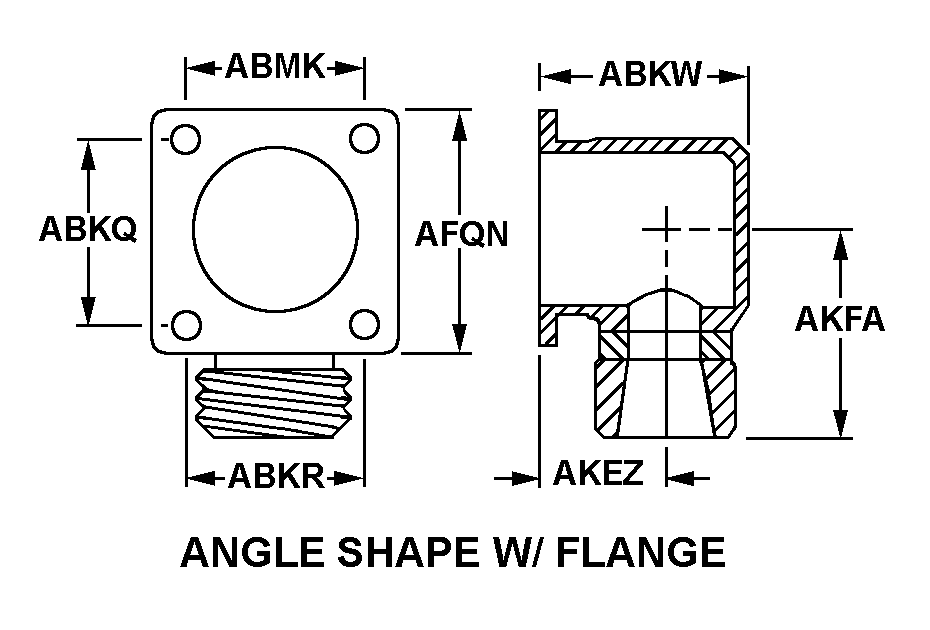

| STYLE DESIGNATOR | 26D ANGLE SHAPE W/FLANGE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.220 INCHES MINIMUM AND 2.280 INCHES MAXIMUM |
| OVERALL WIDTH | 1.720 INCHES MINIMUM AND 1.780 INCHES MAXIMUM |
| FLANGE LENGTH | 1.720 INCHES MINIMUM AND 1.780 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 1.520 INCHES MINIMUM AND 1.540 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING AND 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.142 INCHES MINIMUM AND 0.152 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.438 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.380 INCHES |
| SIZE DESIGNATION | 24 |
