NSN 5930-01-563-7207 4861, 01-563-7207, 015637207
Product Details | DUST AND MOISTURE SEAL BOOT
5930-01-563-7207 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 4861, 5930-01-563-7207, 01-563-7207, 5930015637207, 015637207
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAY 2008 | 01-563-7207 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5930-01-563-7207
Cross Reference | NSN 5930-01-563-7207
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4861 | 60237 | ELL-TRON MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-563-7207
Technical Data | NSN 5930-01-563-7207
| Characteristic | Specifications |
|---|---|

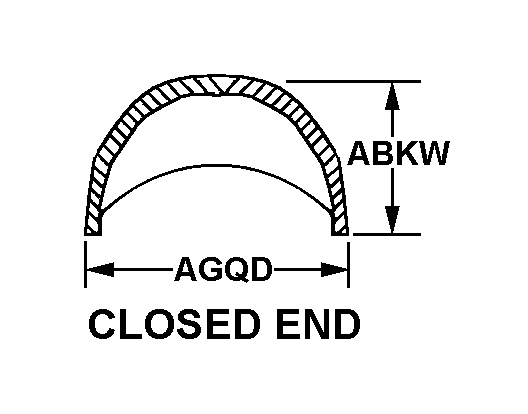

| STYLE DESIGNATOR | A8 CLOSED END |
| OVERALL HEIGHT | 1.400 INCHES NOMINAL |
| BASE OUTSIDE DIAMETER | 1.350 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYVINYL CHLORIDE BODY |
| SPECIAL FEATURES | MEASUREMENTS: ID OF BULB AREA, 1.15 IN.; LENGTH 3.28 IN.; HEIGHT 1.40 IN.; AND ID OF NECK 0.625 IN. NHA: 7385917(53711) PROPULSION SECTION ASSEMBLY |
| III END ITEM IDENTIFICATION SET H | AN/WLD-1(V) REMOTE MINE HUNTING SYSTEM OSPITAL 84 BED |
Restrictions/Controls & Freight Information | NSN 5930-01-563-7207
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-563-7207
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
