NSN 5930-01-556-1656 PS30AC2RPL, PS30AC2-RPL, 30AC2RPL
Product Details | TOGGLE SWITCH
5930-01-556-1656 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: PS30AC2RPL, PS30AC2-RPL, 30AC2RPL, 30AC2-RPL, 3200100040, 320-01-00040, 5930-01-556-1656, 01-556-1656, 5930015561656, 015561656
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 SEP 2007 | 01-556-1656 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-556-1656
Demand History | NSN 5930-01-556-1656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 320-01-00040 | 2021-09-271 | 1 | DIBBS |
| PS30AC2-RPL | 2021-09-271 | 1 | DIBBS |
| 320-01-00040 | 2021-08-222 | 1 | DIBBS |
| PS30AC2-RPL | 2021-08-222 | 1 | DIBBS |
| 5930-01-556-1656 | 2013-07-191 | 8 | DIBBS |
| 5930-01-556-1656 | 2010-01-23 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-556-1656
Related Products | NSN 5930-01-556-1656
Technical Data | NSN 5930-01-556-1656
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC AND 277.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 30.000 AMPERES RESISTIVE AC |

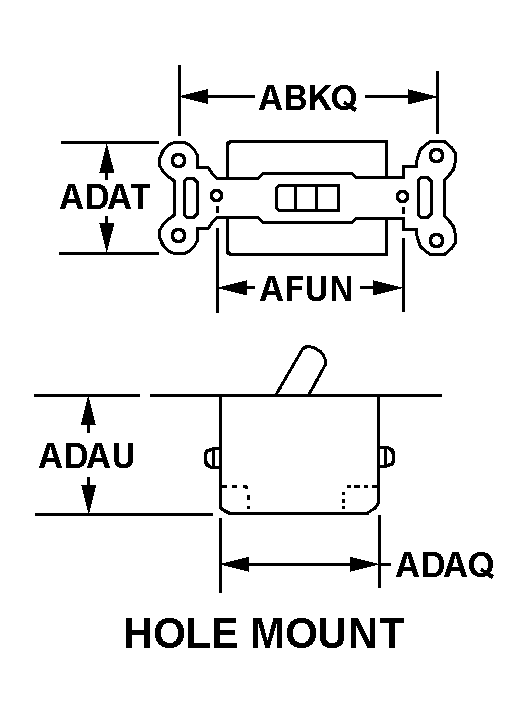

| BODY STYLE | 18P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.281 INCHES NOMINAL |
| BODY LENGTH | 2.375 INCHES NOMINAL |
| BODY WIDTH | 1.320 INCHES NOMINAL |
| BODY HEIGHT | 1.437 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN COVER PLATE MOUNTING HOLES | 2.196 INCHES NOMINAL |

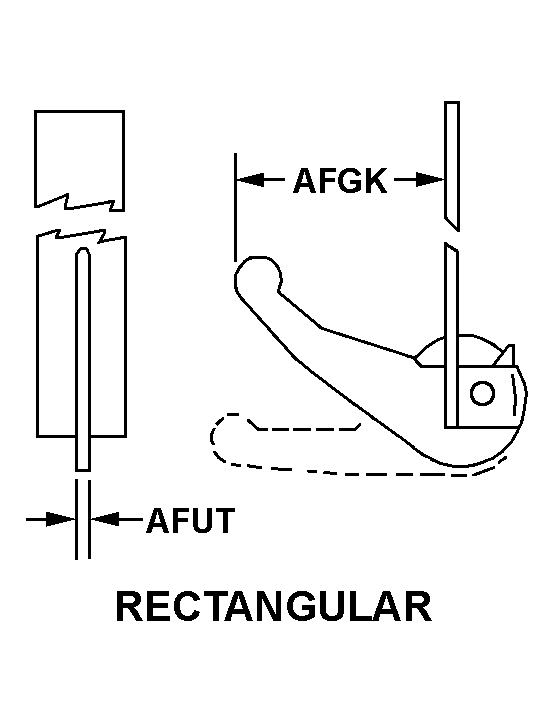

| ACTUATOR STYLE | 63 RECTANGULAR |
| ACTUATOR LENGTH | 1.073 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.196 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED |
| ILLUMINATED ACTUATOR COLOR | RED SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 8 TAB W/SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| III END ITEM IDENTIFICATION | PANEL, ELECTRIC, GENERAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PILOT LIGHTED SWITCH-LIGHTED WHEN ON- BACK AND SIDE WIRE |
