NSN 5930-01-555-9077 H6891703100, H689-1703-100, LTIGK54-1S-BL-GN-A/125N-XGD1
Product Details | TOGGLE SWITCH
5930-01-555-9077 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: H6891703100, H689-1703-100, LTIGK54-1S-BL-GN-A/125N-XGD1, LTIGK541SBLGNA125NXGD1, 03830125, 03-83-0125, 482-7067865-100, 5930-01-555-9077, 01-555-9077, 4827067865100, 5930015559077, 015559077
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 SEP 2007 | 01-555-9077 | 00184 ( SWITCH, TOGGLE ) |

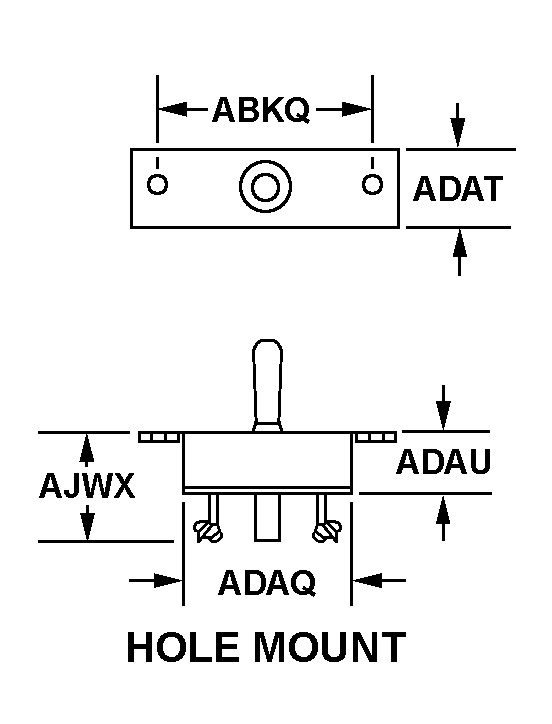

Drawings & Photos | NSN 5930-01-555-9077
Demand History | NSN 5930-01-555-9077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 03830125 | 2024-09-249 | 2 | United States |
| 03830125 | 2024-09-249 | 13 | United States |
| 03-83-0125 | 2024-07-187 | 139 | DIBBS |
| H689-1703-100 | 2024-07-187 | 139 | DIBBS |
| LTIGK54-1S-BL-GN-A/125N-XGD1 | 2024-07-187 | 139 | DIBBS |
| 03-83-0125 | 2024-06-176 | 139 | DIBBS |
| H689-1703-100 | 2024-06-176 | 139 | DIBBS |
| LTIGK54-1S-BL-GN-A/125N-XGD1 | 2024-06-176 | 139 | DIBBS |
| 5930-01-555-9077 | 2022-08-217 | 3 | US |
| 5930-01-555-9077 | 2020-08-237 | 5 | United States |
| 03-83-0125 | 2019-10-290 | 151 | DIBBS |
| H689-1703-100 | 2019-10-290 | 151 | DIBBS |
| LTIGK54-1S-BL-GN-A/125N-XGD1 | 2019-10-290 | 151 | DIBBS |
| 5930-01-555-9077 | 2019-04-95 | 3 | US |
| 5930-01-555-9077 | 2017-03-85 | 32 | DIBBS |
| 5930-01-555-9077 | 2017-03-76 | 109 | United States |
| 5930-01-555-9077 | 2010-07-211 | 27 | DIBBS |
| 5930-01-555-9077 | 2009-05-151 | 26 | DIBBS |
| 5930-01-555-9077 | 2009-02-55 | 5 | DIBBS |
| 5930-01-555-9077 | 2009-02-40 | 8 | DIBBS |
| 5930-01-555-9077 | 2008-04-115 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-555-9077
Technical Data | NSN 5930-01-555-9077
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 15P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.625 INCHES NOMINAL |
| BODY LENGTH | 1.069 INCHES NOMINAL |
| BODY WIDTH | 0.960 INCHES NOMINAL |
| BODY HEIGHT | 0.709 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.422 INCHES NOMINAL |
| ACTUATOR STYLE | 17 RECTANGULAR |
| ACTUATOR LENGTH | 1.224 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.372 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.650 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | CENTER POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | ACTUATOR COLOR: BLACK; LENS COLOR: GREEN; CIRCUIT: ON-NONE-OFF |
| III END ITEM IDENTIFICATION | SSN774 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ROCKER SWITCH |
Restrictions/Controls & Freight Information | NSN 5930-01-555-9077
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
