NSN 5930-01-550-3824 EWSTCK25FT, EWS-TC-K25FT, PA20397/2120 REV 3 ITEM 09
Product Details | THERMOSTATIC SWITCH
5930-01-550-3824 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: EWSTCK25FT, EWS-TC-K25FT, PA20397/2120 REV 3 ITEM 09, PA203972120REV3ITEM09, 5930-01-550-3824, 01-550-3824, 5930015503824, 015503824
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 2007 | 01-550-3824 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-550-3824
Demand History | NSN 5930-01-550-3824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| EWS-TC-K25FT | 2023-05-131 | 24 | DIBBS |
| PA20397/2120 REV 3 ITEM 09 | 2023-05-131 | 24 | DIBBS |
| EWS-TC-K25FT | 2021-06-172 | 6 | DIBBS |
| PA20397/2120 REV 3 ITEM 09 | 2021-06-172 | 6 | DIBBS |
| 5930-01-550-3824 | 2008-08-226 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-550-3824
Technical Data | NSN 5930-01-550-3824
| Characteristic | Specifications |
|---|---|

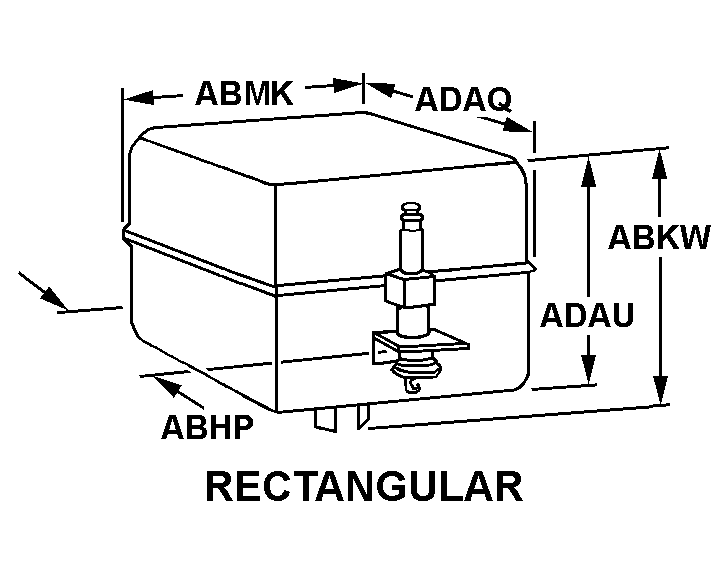

| STYLE DESIGNATOR | 31 RECTANGULAR |
| OVERALL LENGTH | 3.120 INCHES NOMINAL |
| OVERALL HEIGHT | 1.780 INCHES NOMINAL |
| OVERALL WIDTH | 2.120 INCHES NOMINAL |
| SPECIAL FEATURES | WALL MOUNT THERMOCOUPLE SENSOR, ENCLOSURE MADE OF ACRYLONITRILE BUTADIENE STYRENE, POWER: 8 TO 36 VDC@40 MA; HAVING 25 FOOT LEAD WIRE. |
| III END ITEM IDENTIFICATION | APS POWER ELECTRIC CUBICLE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY) WALL MOUNT THERMOSOUPLE SENSOR |
Restrictions/Controls & Freight Information | NSN 5930-01-550-3824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-550-3824
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
