NSN 5930-01-528-7523 SM-18-12F/458, SM1812F458, 12419189
Product Details | PRESSURE SWITCH
5930-01-528-7523 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: SM-18-12F/458, SM1812F458, 12419189, 12419189004, 12419189-004, 5930-01-528-7523, 01-528-7523, 5930015287523, 015287523
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAR 2005 | 01-528-7523 | 00206 ( SWITCH, PRESSURE ) |

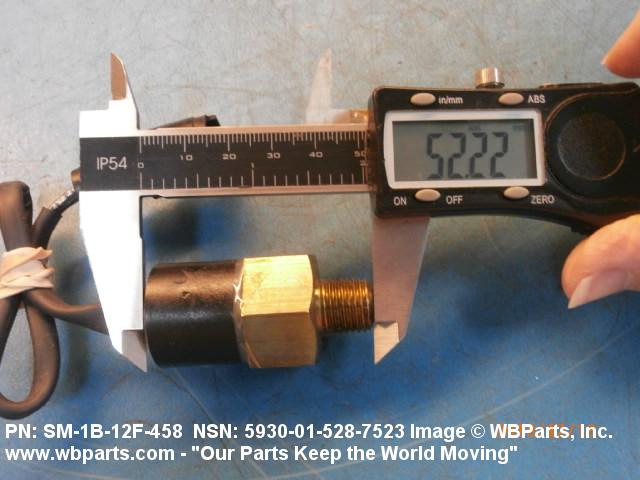

Drawings & Photos | NSN 5930-01-528-7523
Demand History | NSN 5930-01-528-7523
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-528-7523 | 2020-09-261 | 1 | US |
| 5930-01-528-7523 | 2020-08-225 | 1 | United States |
| 5930-01-528-7523 | 2020-03-89 | 1 | UM |
| 5930-01-528-7523 | 2020-03-70 | 25 | United States |
| 5930-01-528-7523 | 2019-04-91 | 2 | MY |
| 5930-01-528-7523 | 2018-11-330 | 2 | United States |
| 5930-01-528-7523 | 2017-06-155 | 183 | DIBBS |
| 5930-01-528-7523 | 2015-06-152 | 208 | DIBBS |
| 5930-01-528-7523 | 2007-09-253 | 1146 | DIBBS |
| 5930-01-528-7523 | 2007-07-194 | 183 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-528-7523
Related Products | NSN 5930-01-528-7523
Technical Data | NSN 5930-01-528-7523
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 38 CYLINDRICAL |
| OVERALL LENGTH | 281.0 MILLIMETERS MINIMUM AND 305.0 MILLIMETERS MAXIMUM |
| BODY LENGTH | 63.0 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 41.0 MILLIMETERS MINIMUM AND 45.0 MILLIMETERS MAXIMUM |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| TERMINAL TYPE | CONNECTOR, PLUG |
| SPECIAL FEATURES | WATER RESISTANT, SWITCH CLOSURE PRESSURE 12 PSI |
| III END ITEM IDENTIFICATION | NSN 2320013539098: CHASSIS, TRUCK; WS: FAMILY OF MEDIUM AND LIGHT TACTICAL VEHICLES (FMTV) |
Restrictions/Controls & Freight Information | NSN 5930-01-528-7523
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-528-7523
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
