NSN 5930-01-528-1206 2SE73203C28M, 2SE73-203C28M, 01-528-1206
Product Details | FLOW SWITCH
5930-01-528-1206 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: 2SE73203C28M, 2SE73-203C28M, 5930-01-528-1206, 01-528-1206, 5930015281206, 015281206
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 MAR 2005 | 01-528-1206 | 36841 ( SWITCH, FLOW ) |
Drawings & Photos | NSN 5930-01-528-1206
Cross Reference | NSN 5930-01-528-1206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2SE73-203C28M | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-528-1206
Technical Data | NSN 5930-01-528-1206
| Characteristic | Specifications |
|---|---|

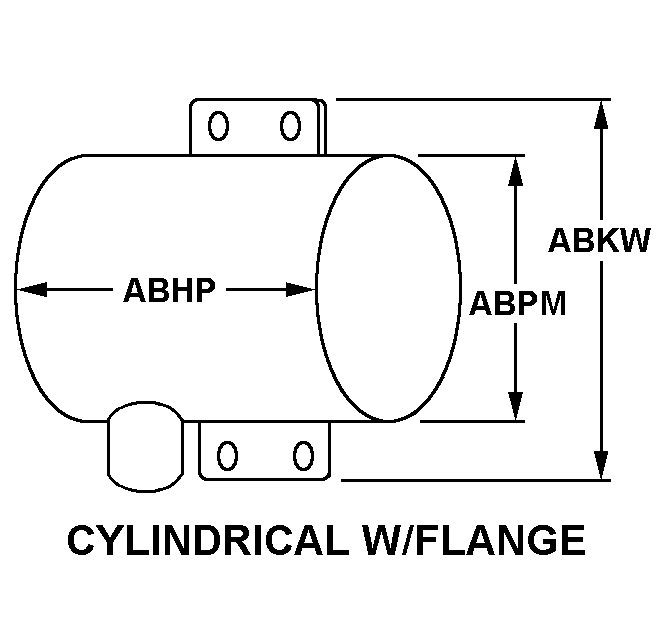

| STYLE DESIGNATOR | 16 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 3.284 INCHES MINIMUM |
| OVERALL HEIGHT | 1.790 INCHES NOMINAL |
| BODY DIAMETER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| OPERATING TEMP RATING | 50.0 DEG FAHRENHEIT MINIMUM AND 120.0 DEG FAHRENHEIT MAXIMUM |
| MOUNTING METHOD | BRACKET |
Restrictions/Controls & Freight Information | NSN 5930-01-528-1206
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
