NSN 5930-01-517-3229 102684, 01-517-3229, 015173229
Product Details | ROTARY SWITCH
5930-01-517-3229 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 102684, 5930-01-517-3229, 01-517-3229, 5930015173229, 015173229
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05-FEB-04 | 01-517-3229 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-517-3229
Demand History | NSN 5930-01-517-3229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-517-3229 | 2014-12-343 | 1 | DIBBS |
Cross Reference | NSN 5930-01-517-3229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102684 | 64167 | WEBB CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-517-3229
Technical Data | NSN 5930-01-517-3229
| Characteristic | Specifications |
|---|---|

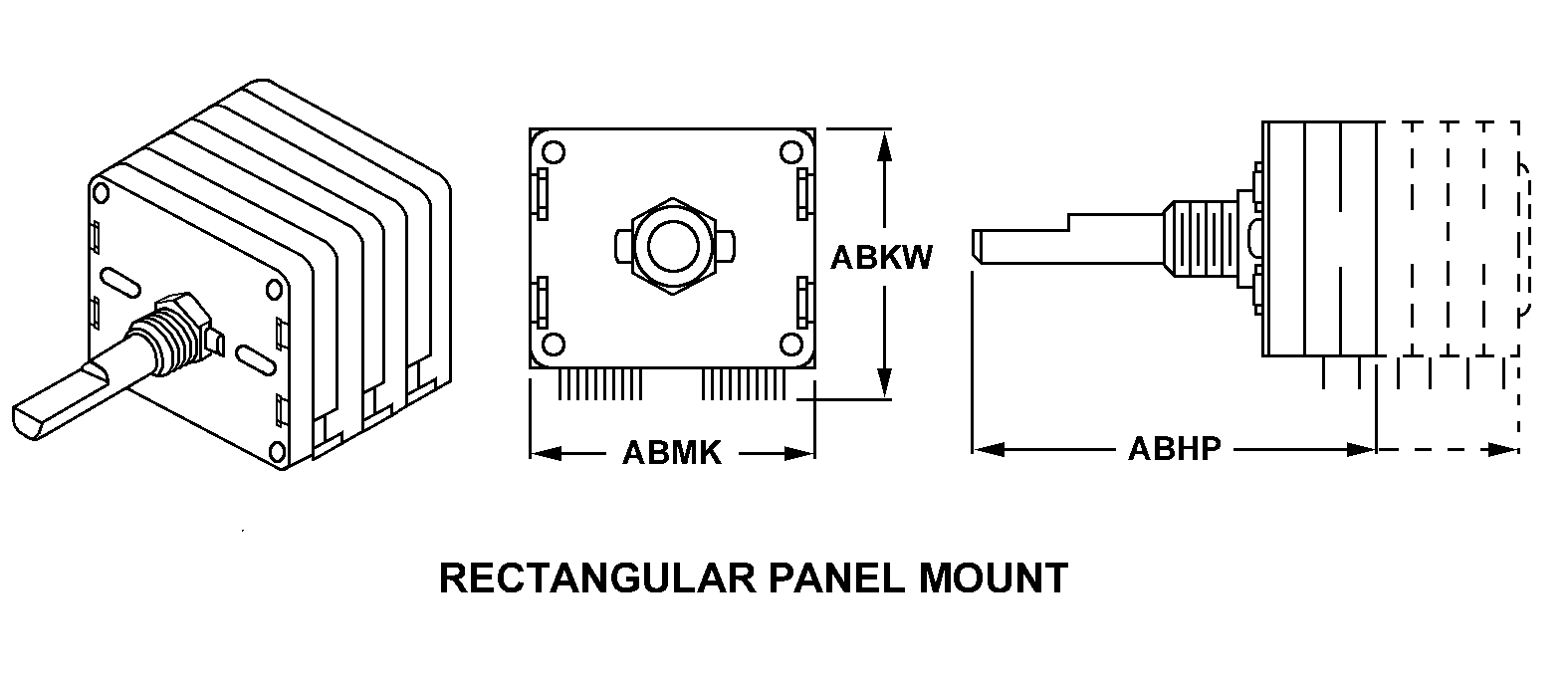

| STYLE DESIGNATOR | 27 RECTANGULAR PANEL MOUNT |
| CONTACT LOAD CURRENT RATING | 30.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL |
| TERMINAL TYPE | COMPONENT SOCKET |
| MOUNTING METHOD | BRACKET SINGLE MOUNTING FACILITY |
| III END ITEM IDENTIFICATION | FORMING MACHINE |
Restrictions/Controls & Freight Information | NSN 5930-01-517-3229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
