NSN 5930-01-501-4490 D5PSN223LX10, D5P-SN223LX10, 01-501-4490
Product Details | ROTARY SWITCH
5930-01-501-4490 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: D5PSN223LX10, D5P-SN223LX10, 5930-01-501-4490, 01-501-4490, 5930015014490, 015014490
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 OCT 2002 | 01-501-4490 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-501-4490
Cross Reference | NSN 5930-01-501-4490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D5P-SN223LX10 | 52034 | SPRECHER AND SCHUH INC S AND S CONTROLS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-501-4490
Technical Data | NSN 5930-01-501-4490
| Characteristic | Specifications |
|---|---|

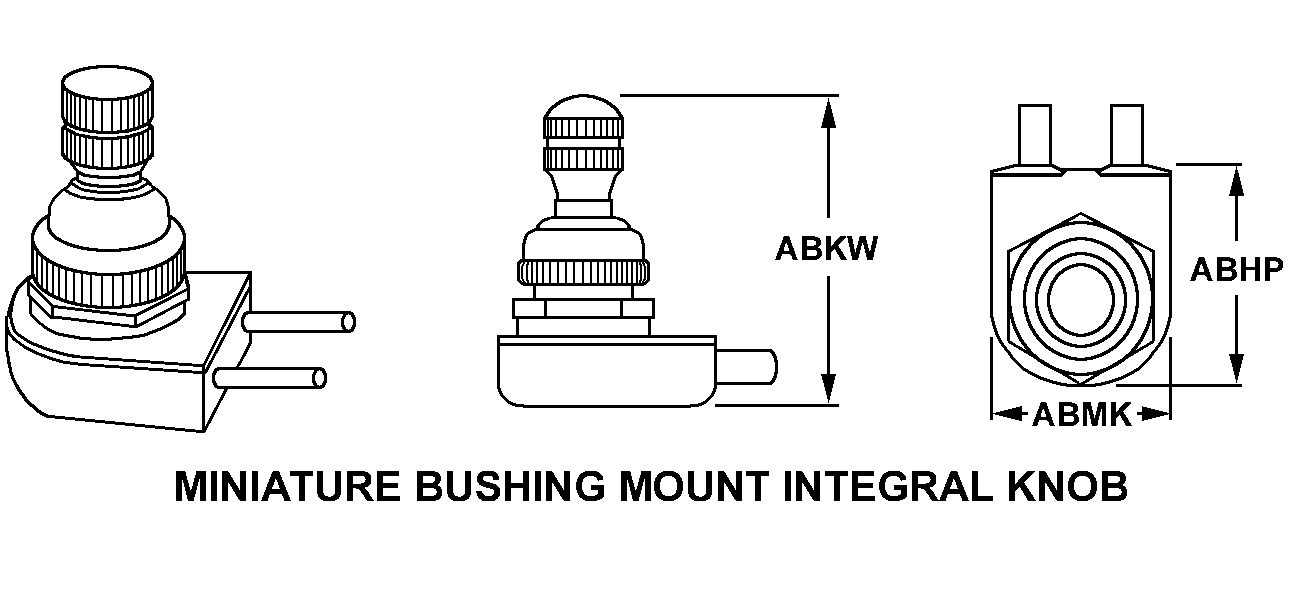

| STYLE DESIGNATOR | 26 MINIATURE BUSHING MOUNT INTEGRAL KNOB |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | PILE-UP |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 90.0 DEGREES SINGLE ACTUATOR |
| SPECIAL FEATURES | NON ILLUMINATED 2 POSITION SELECTOR SWITCH |
Restrictions/Controls & Freight Information | NSN 5930-01-501-4490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
