NSN 5930-01-494-9875 SAF1005240FPM, SAF1005-240FPM, 01-494-9875
Product Details | FLOW SWITCH
5930-01-494-9875 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: SAF1005240FPM, SAF1005-240FPM, 5930-01-494-9875, 01-494-9875, 5930014949875, 014949875
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 MAR 2002 | 01-494-9875 | 36841 ( SWITCH, FLOW ) |
Drawings & Photos | NSN 5930-01-494-9875
Cross Reference | NSN 5930-01-494-9875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SAF1005-240FPM | 93929 | SPX CORPORATION DBA RADIODETECTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-494-9875
Technical Data | NSN 5930-01-494-9875
| Characteristic | Specifications |
|---|---|

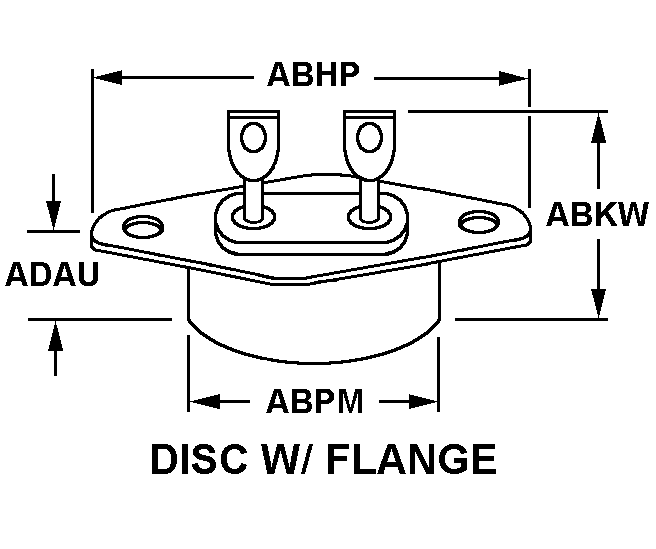

| STYLE DESIGNATOR | 65 DISC W/FLANGE |
| OVERALL LENGTH | 1.534 INCHES NOMINAL |
| OVERALL HEIGHT | 0.910 INCHES NOMINAL |
| BODY DIAMETER | 0.781 INCHES NOMINAL |
| BODY HEIGHT | 0.350 INCHES NOMINAL |
| OPERATING TEMP RATING | 10.0 DEG CELSIUS MINIMUM AND 60.0 DEG CELSIUS MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TERMINAL TYPE | PIN |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.188 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-494-9875
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
