NSN 5930-01-479-1538 L1005505, L1005-505, 01-479-1538
Product Details | THERMOSTATIC SWITCH
5930-01-479-1538 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: L1005505, L1005-505, 5930-01-479-1538, 01-479-1538, 5930014791538, 014791538
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 OCT 2000 | 01-479-1538 | 00451 ( SWITCH, THERMOSTATIC ) |

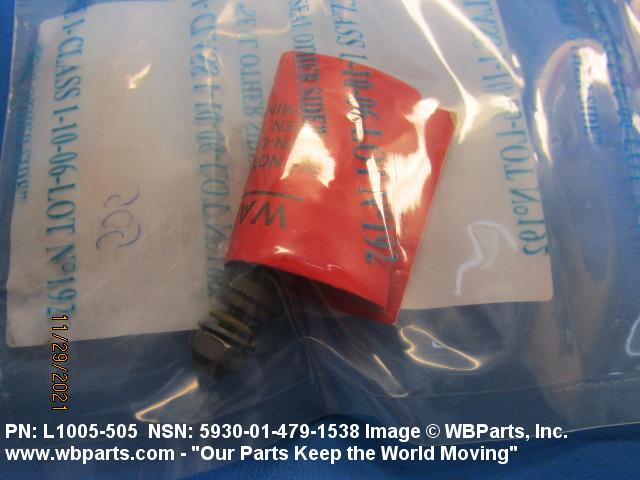

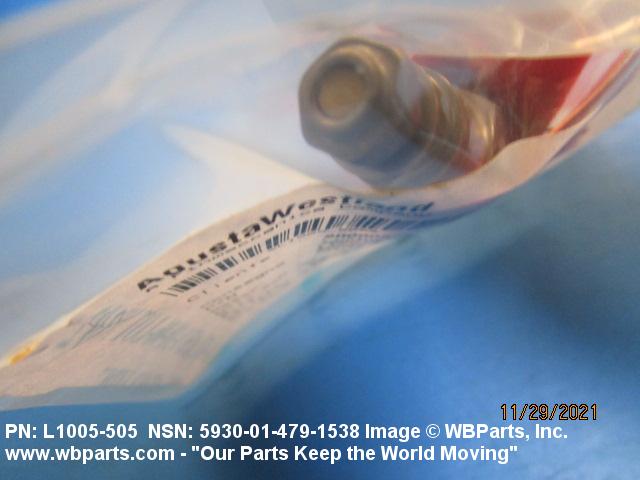

Drawings & Photos | NSN 5930-01-479-1538
Demand History | NSN 5930-01-479-1538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-479-1538 | 2021-11-308 | 2 | ES |
| L1005505 | 2021-11-305 | 2 | Germany |
| 5930-01-479-1538 | 2021-10-299 | 2 | RO |
| L1005505 | 2012-08-240 | 2 | UK |
Cross Reference | NSN 5930-01-479-1538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L1005-505 | 81901 | CALCULAGRAPH CO (INC) DBA CONTROL PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-479-1538
Technical Data | NSN 5930-01-479-1538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 2.330 INCHES MINIMUM AND 2.340 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| BODY DIAMETER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| BODY LENGTH | 0.844 INCHES MINIMUM AND 0.855 INCHES MAXIMUM |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 0.5 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| TEMP SENSING ELEMENT TYPE | THERMOCOUPLE |
| TERMINAL TYPE | THREADED STUD |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| THREAD SERIES DESIGNATOR | UNF ALL THREADED STUD |
| NOMINAL THREAD SIZE | 0.375 INCHES ALL THREADED STUD |
| THREAD CLASS | 3A ALL THREADED STUD |
| THREAD QUANTITY PER INCH | 24 ALL THREADED STUD |
Restrictions/Controls & Freight Information | NSN 5930-01-479-1538
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
