Product Details | TOGGLE SWITCH
5930-01-476-8195 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 7107TCWZQES, 5930-01-476-8195, 01-476-8195, 5930014768195, 014768195
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUL 2000 | 01-476-8195 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-476-8195
Cross Reference | NSN 5930-01-476-8195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7107TCWZQES | 09353 | C AND K COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-476-8195
Technical Data | NSN 5930-01-476-8195
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC AND 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.000 AMPERES RESISTIVE AC AND 5.000 AMPERES RESISTIVE DC |

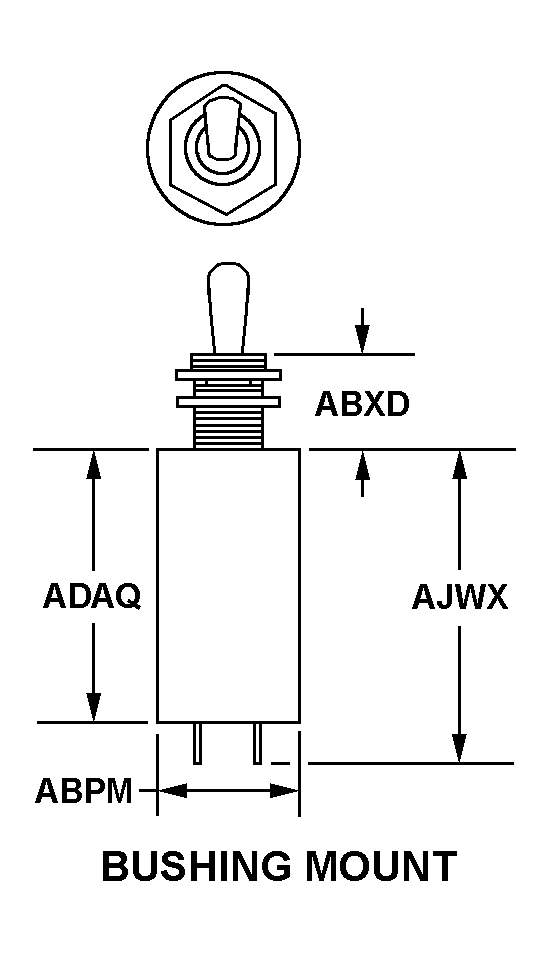

| BODY STYLE | 2P BUSHING MOUNT |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BUSHING LENGTH | 0.448 INCHES NOMINAL |
| BODY LENGTH | 0.350 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.505 INCHES NOMINAL |

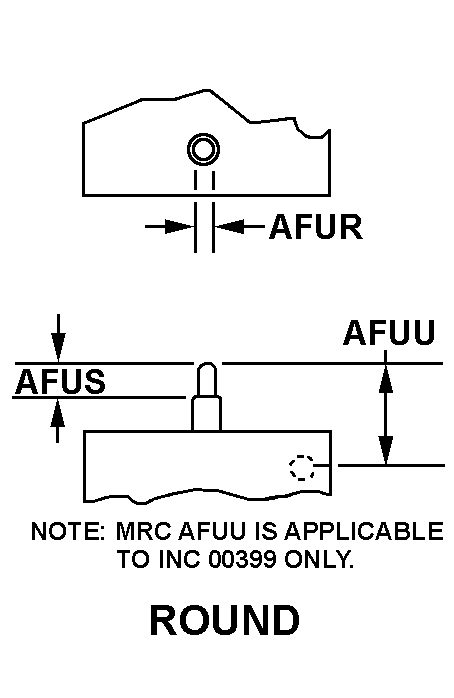

| ACTUATOR STYLE | 1 ROUND |
| ACTUATOR DIAMETER | 0.115 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.687 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | LEFT POSITION MOMENTARY AND RIGHT POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED OR HERMETICALLY SEALED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SPLASHPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | SPDT; SATIN CHROME FINISH (ACTUATOR) |
