NSN 5930-01-469-1650 13230E3565, 32303MA, 01-469-1650
Product Details | ROTARY SWITCH
5930-01-469-1650 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 13230E3565, 32303MA, 5930-01-469-1650, 01-469-1650, 5930014691650, 014691650
Electrical and Electronic Equipment Components | Switches
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 04 NOV 1999 | 01-469-1650 | 02134 ( SWITCH, ROTARY ) |
Demand History | NSN 5930-01-469-1650
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5930-01-469-1650 | 2012-08-244 | 70 | DIBBS |
5930-01-469-1650 | 2012-07-194 | 17 | United States |
5930-01-469-1650 | 2012-06-181 | 76 | DIBBS |
5930-01-469-1650 | 2012-03-90 | 100 | DIBBS |
5930-01-469-1650 | 2011-09-271 | 61 | DIBBS |
5930-01-469-1650 | 2011-08-216 | 89 | DIBBS |
5930-01-469-1650 | 2007-05-127 | 418 | DIBBS |
5930-01-469-1650 | 2006-06-174 | 80 | DIBBS |
5930-01-469-1650 | 2006-06-173 | 114 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-469-1650
Related Products | NSN 5930-01-469-1650
Technical Data | NSN 5930-01-469-1650
Characteristic | Specifications |
---|---|

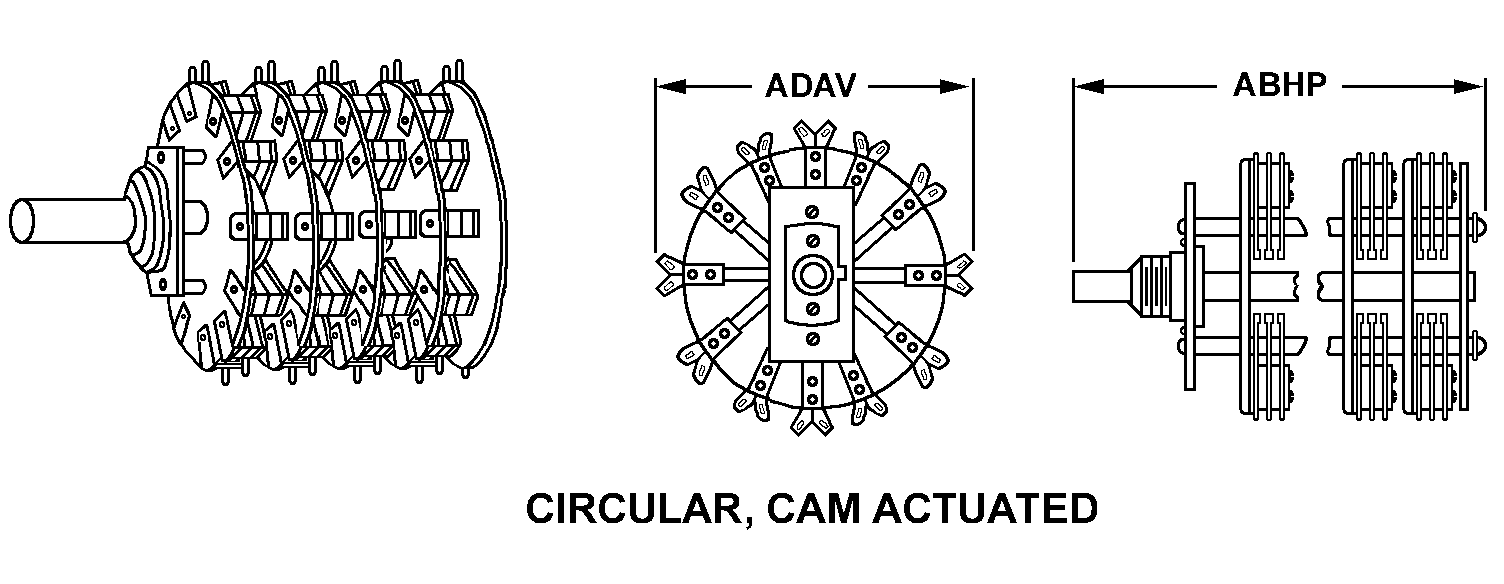

STYLE DESIGNATOR | 16 CIRCULAR, CAM ACTUATED |
OVERALL LENGTH | 3.030 INCHES NOMINAL |
OVERALL DIAMETER | 1.950 INCHES NOMINAL |
INDIVIDUAL SECTION QUANTITY | 2 |
SPECIAL FEATURES | THE SWITCH SHALL BE 3 WAFER, 3 POSITION, SHORTING(MAKE-BEFORE-BREAK) DETENT ACTION TYPE WITH AN ELECTRICAL RATING OF 5 AMPERES AT 115 VAC // SWITCH MATERIAL: A. WAFERS(THERMOSET PLASTIC) X B. CONTACTS(ROTOR ªMOVABLE CONTACT| SILVER OVERLAY PHOSPHOR BRONZE AND TERMINAL ªSTATIONARY CONTACT| SILVER OVERLAY COPPER) X C. KNOB(BLACK PLASTIC) // THE SWITCH SHALL CONFORM TO THE FOLLOWING REQUIREMENTS OF MIL-S-6807: A. CONTACT RESISTANCE X B. DIELECTRIC WITHSTANDING VOLTAGE // THE SWITCH SHALL BE SUPPLIED WITH JUMPERS BETWEEN TERMINALS 11, 21 AND 31(2 REQD) AND TERMINALS 22 & 23(1 REQD) AS INDICATED IN JUMPER TABLE // THE STOP SCREWS, SUPPLIED AS LOOSE ITEMS WITH SWITCH, SHALL BE INSTALLED IN POSITIONS 1 AND 6, TO LIMIT SWITCH ROTATION TO POSITIONS 1, 2 AND 3 // THE SWITCH SHALL BE SUPPLIED WITH MOUNTING NUTS(2), LOCKWASHER, LOCKING RING AND KNOB WITH(SETSCREW) // THE TERMINAL DESIGNATIONS SHALL BE PERMANENTLY MARKED ON TERMINALS |
III PRECIOUS MATERIAL | SILVER |
III END ITEM IDENTIFICATION | FORCE PROVIDER (USED ON: 4120-01-413-7835) |
Restrictions/Controls & Freight Information | NSN 5930-01-469-1650
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 72D | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
