NSN 5930-01-456-4034 M12285/1-5A, M1228515A, 01-456-4034
Product Details | THERMOSTATIC SWITCH
5930-01-456-4034 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: M12285/1-5A, M1228515A, 5930-01-456-4034, 01-456-4034, 5930014564034, 014564034
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JUN 1998 | 01-456-4034 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-456-4034
Cross Reference | NSN 5930-01-456-4034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M12285/1-5A | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-456-4034
Technical Data | NSN 5930-01-456-4034
| Characteristic | Specifications |
|---|---|

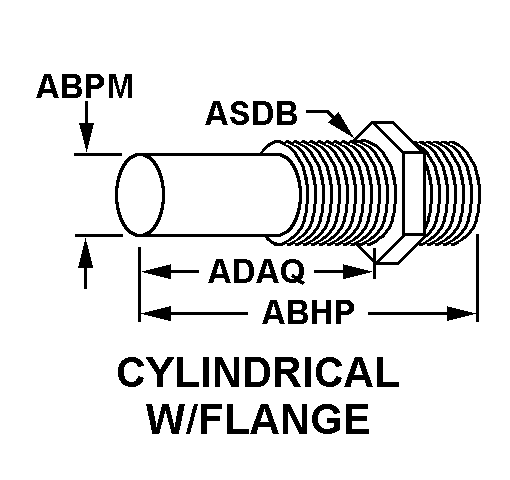

| STYLE DESIGNATOR | 53 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 3.150 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.875 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| BODY DIAMETER | 0.525 INCHES MINIMUM AND 0.610 INCHES MAXIMUM |
| BODY LENGTH | 1.390 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | NPTF SINGLE THREADED BUSHING |
| NOMINAL THREAD SIZE | 0.500 INCHES SINGLE THREADED BUSHING |
| THREAD CLASS | 3B SINGLE THREADED BUSHING |
| THREAD QUANTITY PER INCH | 14 SINGLE THREADED BUSHING |
| THREAD LENGTH | 0.656 INCHES MINIMUM AND 0.770 INCHES MAXIMUM SINGLE THREADED BUSHING |
Restrictions/Controls & Freight Information | NSN 5930-01-456-4034
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
