NSN 5930-01-424-5508 M2288583200, M22885-83-200, MIL-PRF-22885/83
Product Details | SWITCH GUARD
5930-01-424-5508 A framework fabricated of rigid material designed to protect a switch against external damage and/or prevent inadvertent throwing of the switch. Excludes switch locking devices.
Part Alternates: M2288583200, M22885-83-200, MIL-PRF-22885/83 , MILPRF2288583, 311-100-001 , 5930-01-424-5508, 01-424-5508, 5930014245508, 311100001, 014245508
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JAN 1996 | 01-424-5508 | 02447 ( GUARD, SWITCH ) |

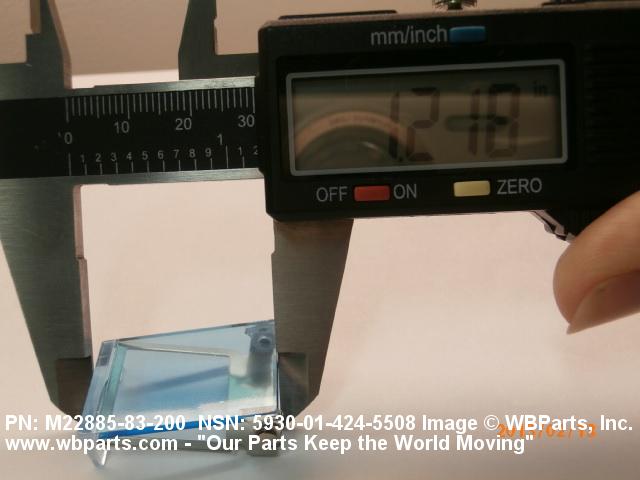

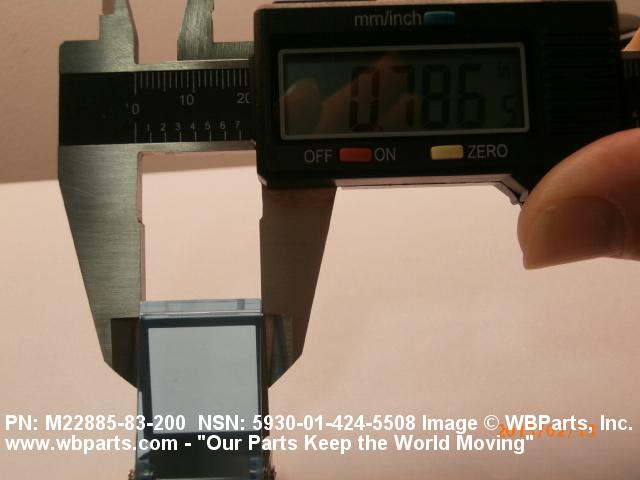

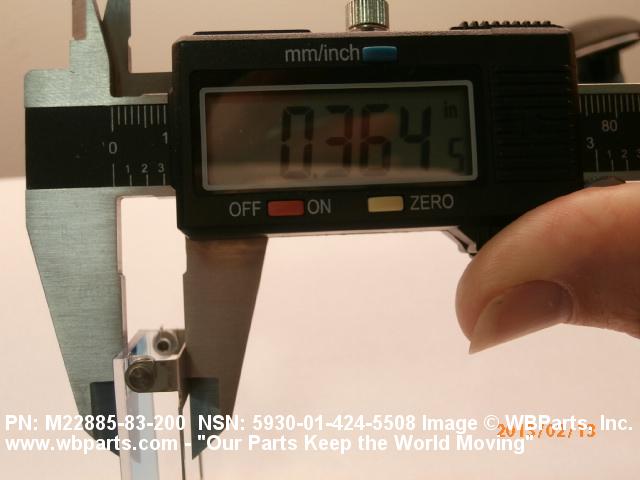

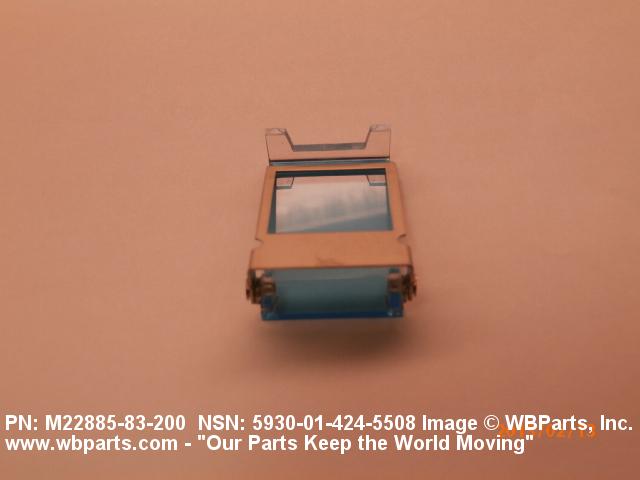

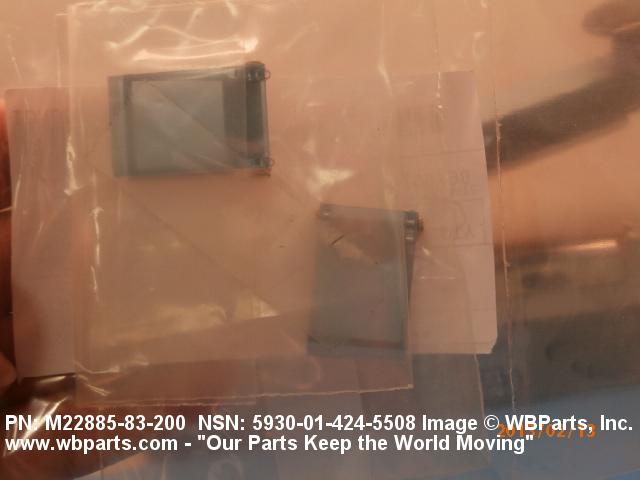

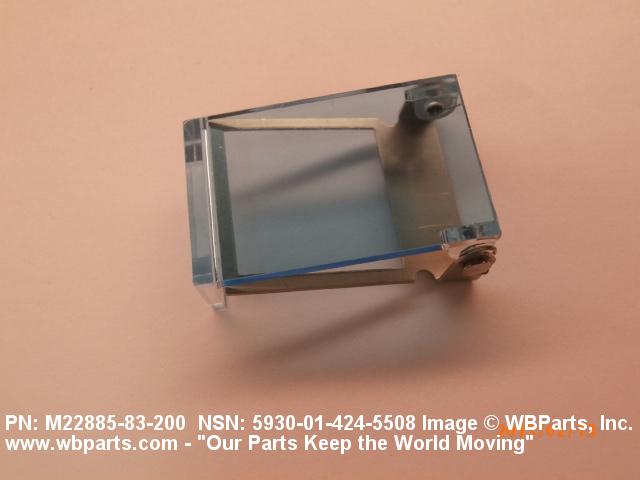

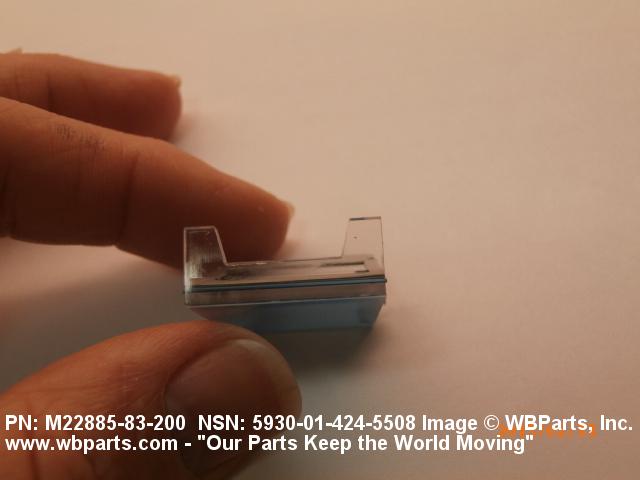

Drawings & Photos | NSN 5930-01-424-5508
Demand History | NSN 5930-01-424-5508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2288583200 | 2024-06-164 | 1 | CA |
| 5930-01-424-5508 | 2024-01-15 | 16 | CA |
| 5930-01-424-5508 | 2022-11-312 | 1 | US |
| 5930-01-424-5508 | 2022-10-294 | 1 | US |
| 311-100-001 | 2021-03-74 | 4 | DIBBS |
| 311-100-001 | 2021-03-62 | 4 | DIBBS |
| M2288583200 | 2019-05-136 | 5 | United States |
| 5930-01-424-5508 | 2018-11-324 | 4 | DIBBS |
| 5930-01-424-5508 | 2017-10-275 | 2 | DIBBS |
| 311100001 | 2014-07-204 | 1 | US |
| M2288583200 | 2013-02-37 | 2 | United States |
| M2288583200 | 2013-02-37 | 2 | United States |
| 5930-01-424-5508 | 2012-01-23 | 1 | US |
| 5930-01-424-5508 | 2011-02-41 | 1 | DIBBS |
| M2288583200 | 2010-12-337 | 1 | US |
| 311100001 | 2008-04-119 | 20 | Israel |
| 311100001 | 2008-04-113 | 20 | IL |
| 311100001 | 2007-08-218 | 10 | IL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-424-5508
Related Products | NSN 5930-01-424-5508
Technical Data | NSN 5930-01-424-5508
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MOUNTING METHOD | UNTHREADED HOLE |
| OVERALL LENGTH | 1.210 INCHES NOMINAL |
| OVERALL WIDTH | 0.785 INCHES NOMINAL |
| OVERALL HEIGHT | 0.360 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22885-83-200 |
Restrictions/Controls & Freight Information | NSN 5930-01-424-5508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-424-5508
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
