NSN 5930-01-365-9614 8821081, 88-21081, 8906K4522

Product Details | TOGGLE SWITCH

5930-01-365-9614 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: 8821081, 88-21081, 8906K4522, 5930-01-365-9614, 01-365-9614, 5930013659614, 013659614

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 OCT 1992	01-365-9614	00184 ( SWITCH, TOGGLE )

Drawings & Photos | NSN 5930-01-365-9614

Part Number	Request Date	QTY	Origin
5930-01-365-9614	2024-07-199	1	US
8906K4522	2024-05-127	258	DIBBS
8906K4522	2024-04-116	258	DIBBS
5930-01-365-9614	2024-03-79	1	US
8906K4522	2023-12-362	45	DIBBS
8906K4522	2023-08-229	61	DIBBS
8906K4522	2023-08-213	150	DIBBS
8821081	2023-06-170	20	United States
5930-01-365-9614	2023-05-131	150	US
8906K4522	2023-05-130	150	DIBBS
8821081	2023-04-115	20	United States
5930-01-365-9614	2022-07-194	2	United States
8906K4522	2022-05-132	71	DIBBS
8906K4522	2022-02-58	228	DIBBS
8906K4522	2021-09-244	6	United States
8906K4522	2021-02-52	147	DIBBS
5930-01-365-9614	2020-05-135	1	UK
8906K4522	2020-05-132	100	HK
8906K4522	2020-05-129	1	US
8906K4522	2020-05-127	20	HK
5930-01-365-9614	2019-07-190	10	United States
5930-01-365-9614	2019-07-190	10	United States
5930-01-365-9614	2019-07-190	10	United States
8906K4522	2018-12-338	50	us
5930-01-365-9614	2018-06-157	1	US
5930-01-365-9614	2018-03-88	1	United States
5930-01-365-9614	2018-02-46	629	DIBBS
5930-01-365-9614	2017-09-255	317	DIBBS
5930-01-365-9614	2016-03-81	4	United Arab Emirates
5930-01-365-9614	2016-03-81	4	United States
5930-01-365-9614	2013-12-347	493	DIBBS
5930-01-365-9614	2013-11-332	493	DIBBS
5930-01-365-9614	2012-02-39	118	DIBBS
5930-01-365-9614	2011-10-299	985	DIBBS
5930-01-365-9614	2011-07-211	896	DIBBS
5930-01-365-9614	2011-06-154	511	DIBBS
5930-01-365-9614	2011-04-91	700	DIBBS
5930-01-365-9614	2011-01-18	584	DIBBS
5930-01-365-9614	2010-12-337	562	DIBBS
5930-01-365-9614	2010-05-145	786	DIBBS
5930-01-365-9614	2010-03-63	702	DIBBS
5930-01-365-9614	2009-11-308	639	DIBBS
5930-01-365-9614	2009-06-173	1	UM
5930-01-365-9614	2009-05-133	622	DIBBS
5930-01-365-9614	2008-01-30	146	DIBBS
5930-01-365-9614	2007-07-212	1480	DIBBS
5930-01-365-9614	2007-06-158	443	DIBBS
5930-01-365-9614	2007-04-95	525	DIBBS
5930-01-365-9614	2007-03-69	500	DIBBS
5930-01-365-9614	2006-11-319	3	Taiwan

Cross Reference | NSN 5930-01-365-9614

Part Number	Cage Code	Manufacturer
88-21081	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
8906K4522	81640	EATON CORPORATION DBA FLUID POWER DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-365-9614

Compare

Related Products | NSN 5930-01-365-9614

5930-01-365-9615, 5930-01-365-9622, 5930-01-365-9623, 5930-01-365-9626, 5930-01-365-9627

Technical Data | NSN 5930-01-365-9614

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT
PILE-UP CONTACT FORM ARRANGEMENT	A1 SINGLE POSITION
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	2.000 AMPERES LAMP AC AND 4.000 AMPERES LAMP DC AND 11.000 AMPERES RESISTIVE AC AND 15.000 AMPERES RESISTIVE DC AND 7.000 AMPERES INDUCTIVE AC AND 10.000 AMPERES INDUCTIVE DC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.458 INCHES MINIMUM AND 0.478 INCHES MAXIMUM
BODY LENGTH	1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM
BODY WIDTH	0.635 INCHES MAXIMUM
OVERALL LENGTH	1.418 INCHES MINIMUM AND 1.498 INCHES MAXIMUM

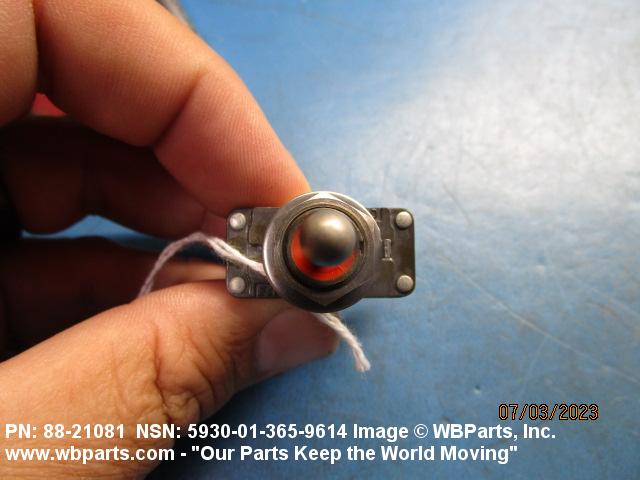

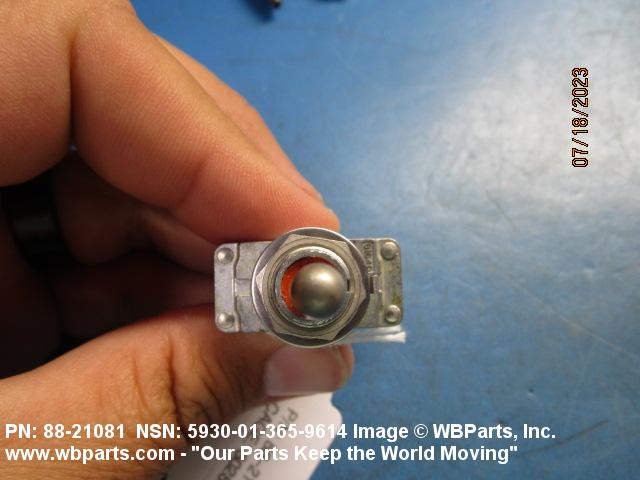

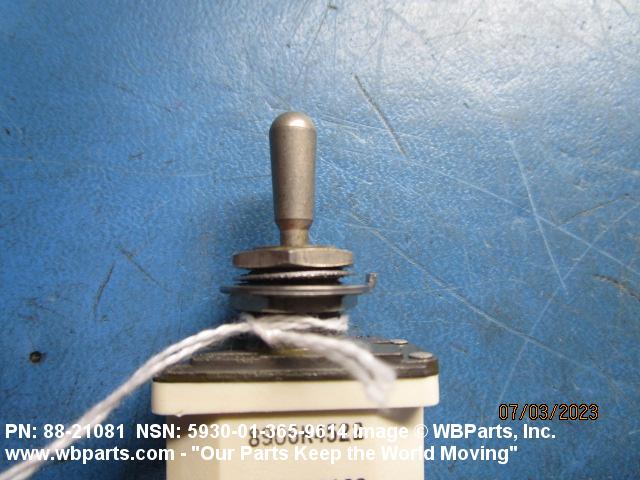

ACTUATOR STYLE	25 ROUND
ACTUATOR HEIGHT	0.660 INCHES MINIMUM AND 0.720 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	LEFT POSITION MOMENTARY AND RIGHT POSITION MOMENTARY AND CENTER POSITION MOMENTARY

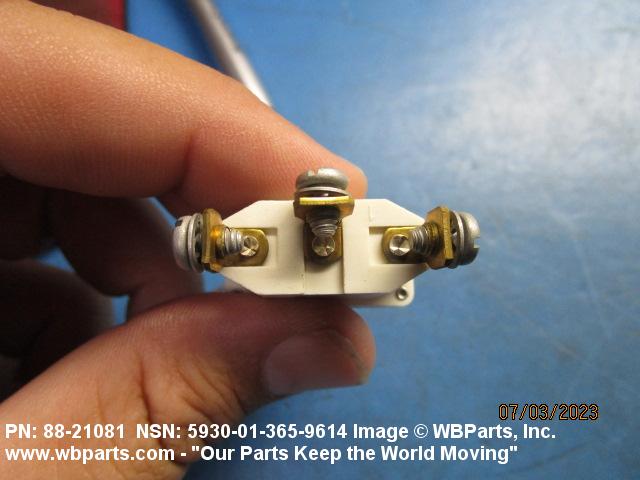

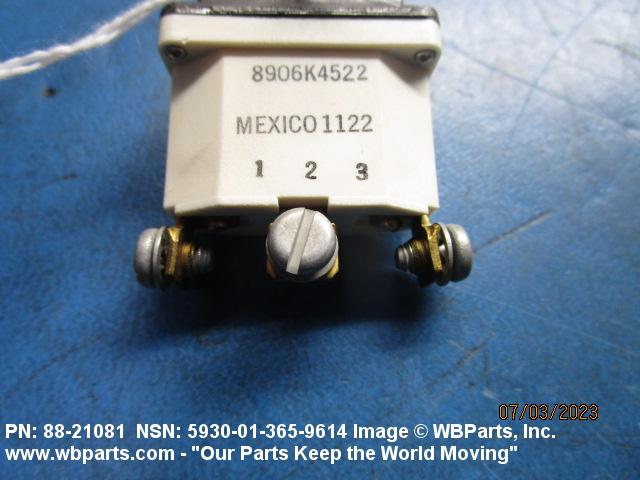

TERMINAL TYPE AND QUANTITY	3 TAB W/SCREW
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	PANEL
SPECIFICATION/STANDARD DATA	30554 - 88-21081 GOVERNMENT SPECIFICATION
III END ITEM IDENTIFICATION	NSN 6115-01-296-1463; GENERATOR SET, DIESEL ENGINE
