NSN 5930-01-365-5466 C11C57430E, C11-C57430E, CHR10C57430

Product Details | ROTARY SWITCH

5930-01-365-5466 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).

Part Alternates: C11C57430E, C11-C57430E, CHR10C57430, CHR10-C57430, CHR10C57430EF, CHR10-C57430EF, 0120001, 01-20001, 8821902, 88-21902, 5930-01-365-5466, 01-365-5466, 5930013655466, 013655466

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 OCT 1992	01-365-5466	02134 ( SWITCH, ROTARY )

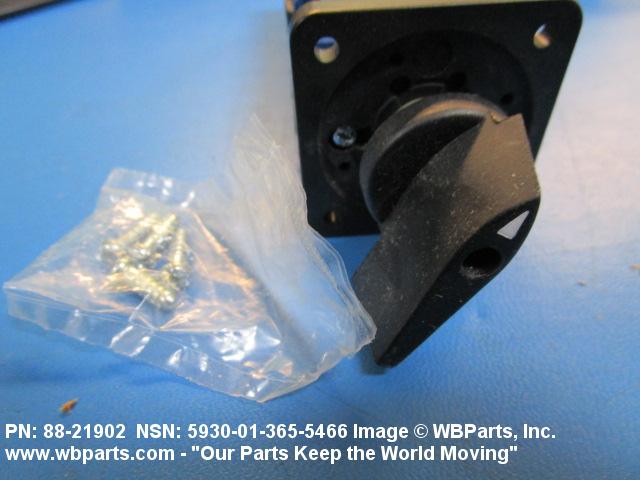

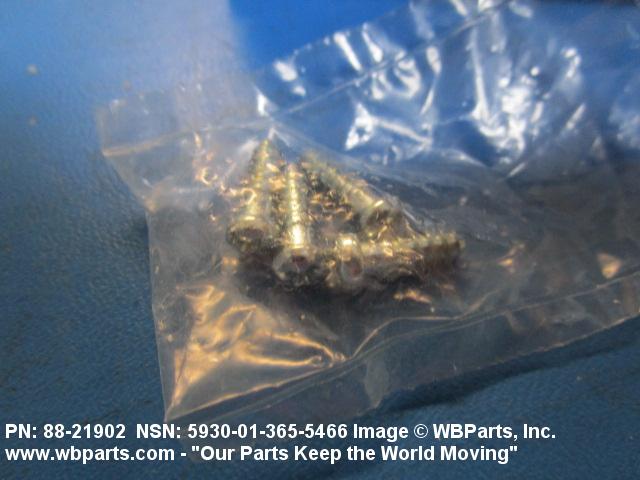

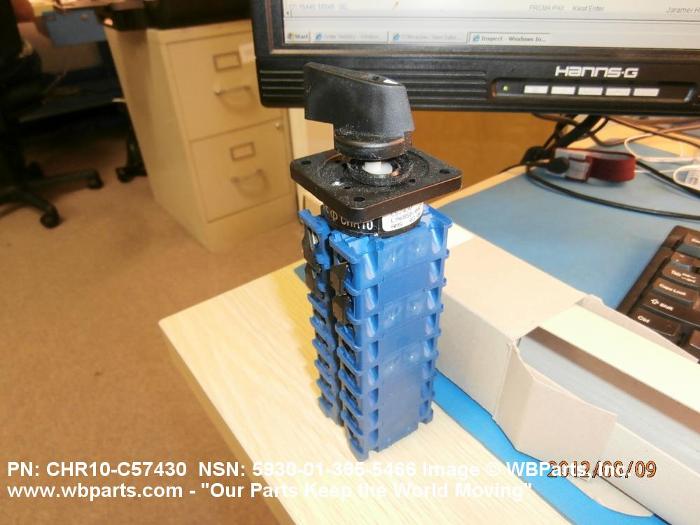

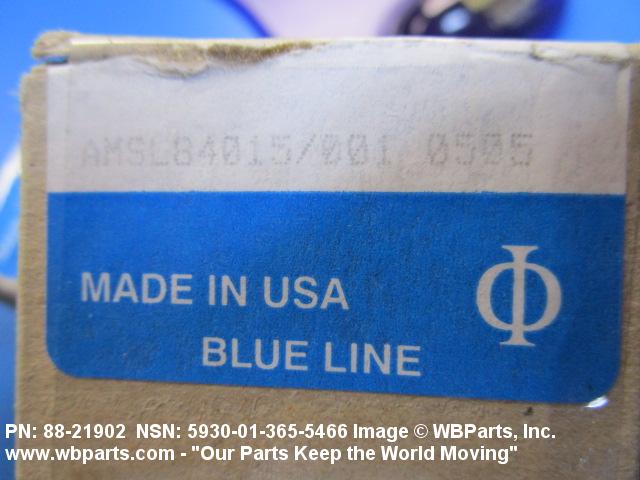

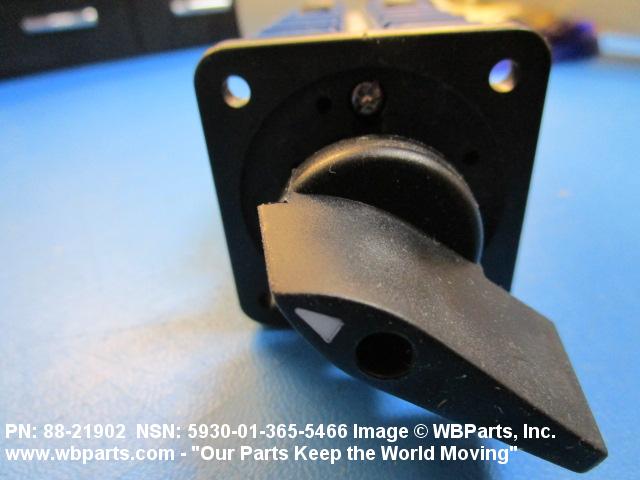

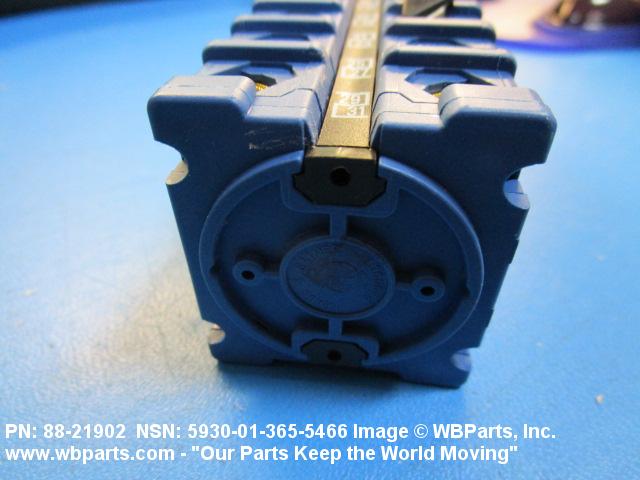

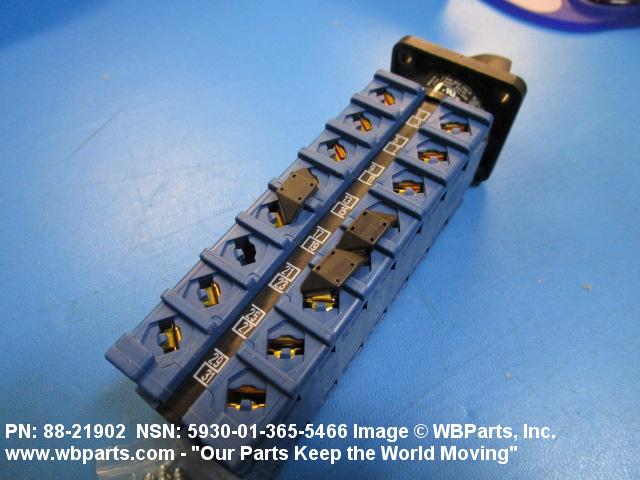

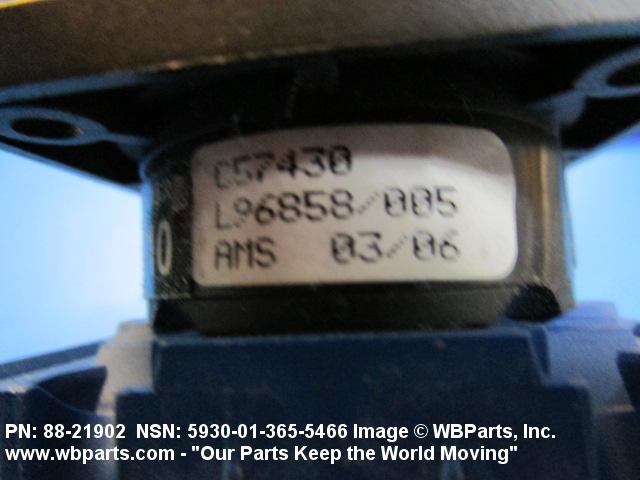

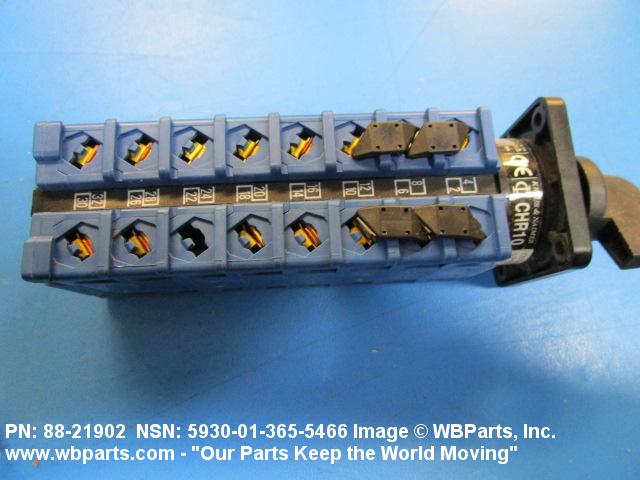

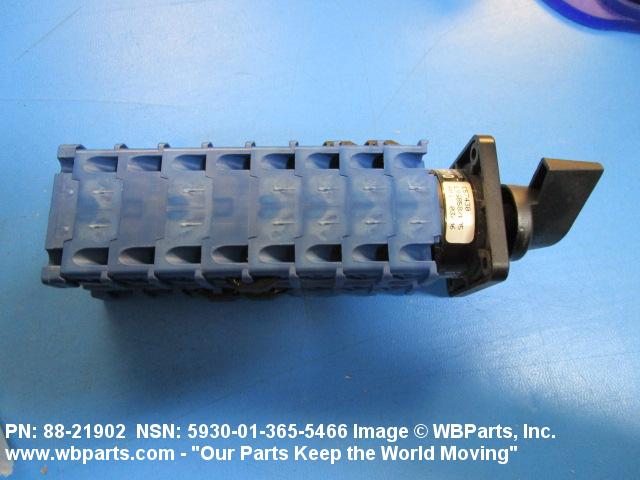

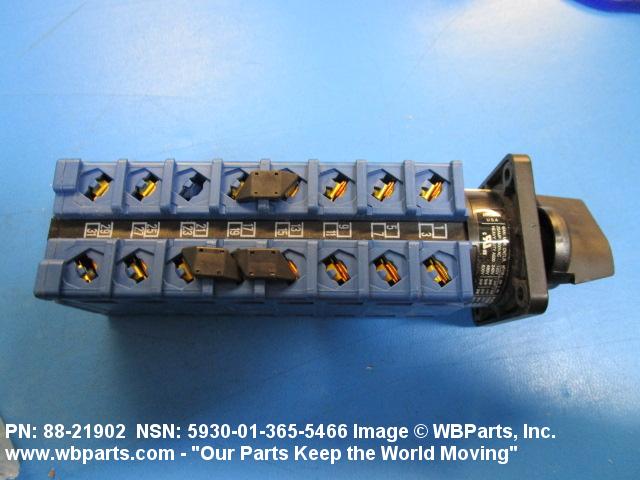

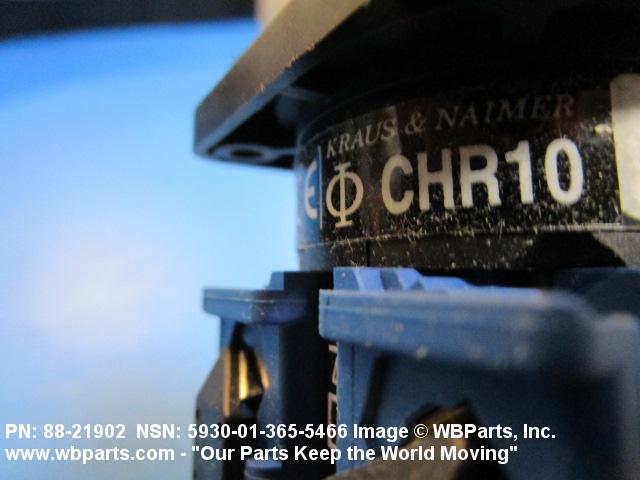

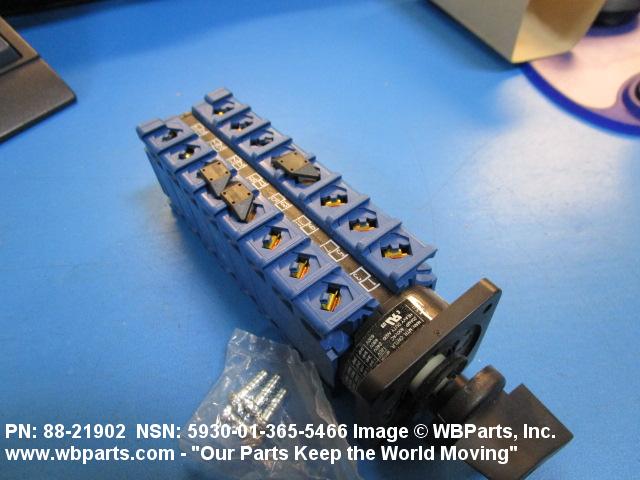

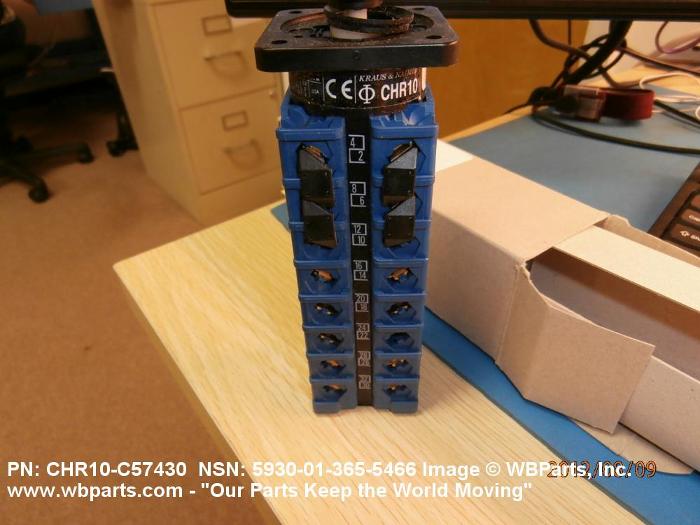

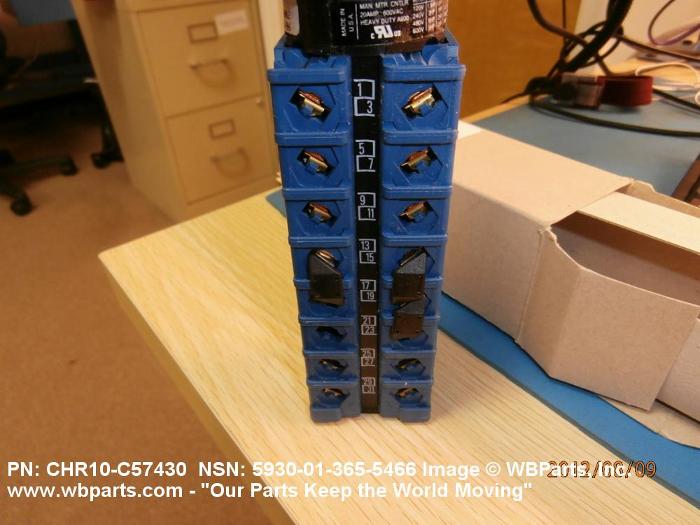

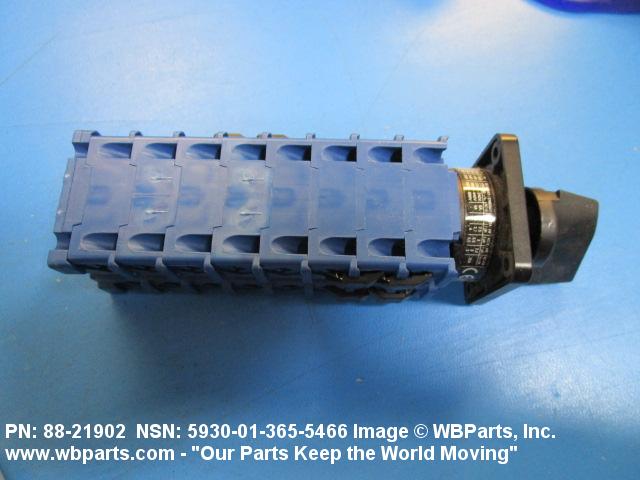

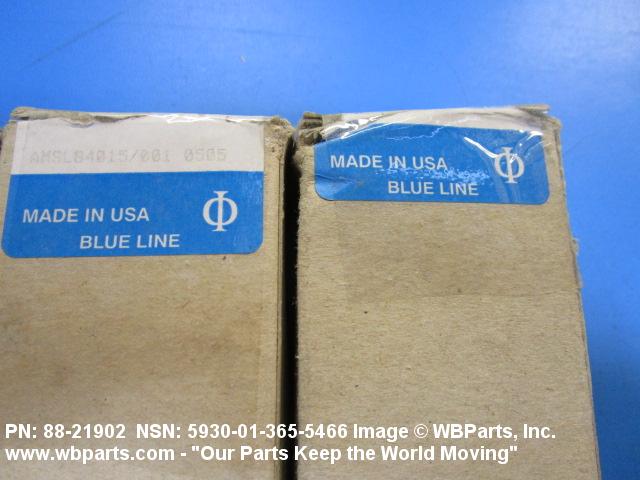

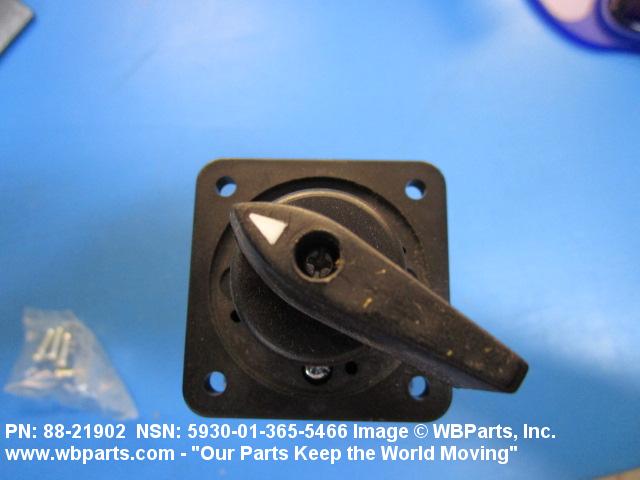

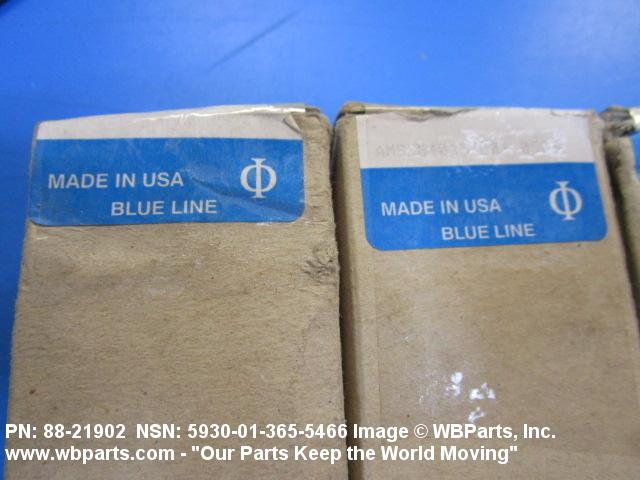

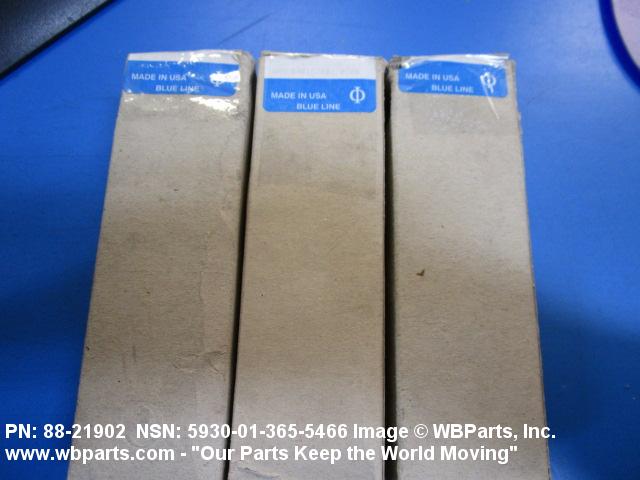

Drawings & Photos | NSN 5930-01-365-5466

Part Number	Request Date	QTY	Origin
8821902	2021-10-291	3	United States
8821902	2021-09-272	3	United States
8821902	2021-09-244	30	United States
5930-01-365-5466	2021-08-225	2	CA
CHR10-C57430EF	2019-06-153	173	DIBBS
5930-01-365-5466	2019-04-108	2	United States
5930-01-365-5466	2017-12-337	97	DIBBS
5930-01-365-5466	2016-11-308	139	DIBBS
5930-01-365-5466	2016-07-192	104	DIBBS
5930-01-365-5466	2015-12-343	110	DIBBS
5930-01-365-5466	2014-10-295	10	US
5930-01-365-5466	2012-07-207	350	DIBBS
5930-01-365-5466	2012-06-156	400	DIBBS
5930-01-365-5466	2012-05-135	1	DIBBS
5930-01-365-5466	2012-05-135	1	DIBBS
5930-01-365-5466	2012-05-135	5	DIBBS
5930-01-365-5466	2012-05-132	1	DIBBS
5930-01-365-5466	2012-05-132	1	DIBBS
5930-01-365-5466	2012-05-132	9	DIBBS
5930-01-365-5466	2012-05-132	1	DIBBS
5930-01-365-5466	2012-05-132	2	DIBBS
5930-01-365-5466	2012-05-129	1	DIBBS
5930-01-365-5466	2012-05-129	4	DIBBS
5930-01-365-5466	2012-05-129	1	DIBBS
5930-01-365-5466	2012-05-125	1	DIBBS
5930-01-365-5466	2012-05-125	2	DIBBS
5930-01-365-5466	2012-05-125	3	DIBBS
5930-01-365-5466	2012-05-125	1	DIBBS
5930-01-365-5466	2012-05-125	3	DIBBS
8821902	2012-04-108	20	Turkey
5930-01-365-5466	2012-01-25	1	PR
01-20001	2011-11-309	1	United States
5930-01-365-5466	2010-11-306	3	US
CHR10C57430EF	2010-09-271	2	United States
8821902	2010-09-252	1	United States
5930-01-365-5466	2009-09-245	14	DIBBS
5930-01-365-5466	2008-10-282	5	DIBBS

Cross Reference | NSN 5930-01-365-5466

Part Number	Cage Code	Manufacturer
01-20001	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
88-21902	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
C11-C57430E	10983	KRAUS & NAIMER, INC.
CHR10-C57430	10983	KRAUS & NAIMER, INC.
CHR10-C57430EF	10983	KRAUS & NAIMER, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-365-5466

Compare

Related Products | NSN 5930-01-365-5466

5930-01-365-5467, 5930-01-365-5468, 5930-01-365-5469, 5930-01-365-5470, 5930-01-365-5471

Technical Data | NSN 5930-01-365-5466

Characteristic	Specifications
STYLE DESIGNATOR	27 RECTANGULAR PANEL MOUNT
OVERALL LENGTH	4.870 INCHES NOMINAL
OVERALL HEIGHT	1.890 INCHES NOMINAL
OVERALL WIDTH	1.890 INCHES NOMINAL
INDIVIDUAL SECTION QUANTITY	1
SWITCH CONTACT BASIC DESIGN	NONPILE-UP NONSYMMETRICAL
ROTOR THROUGH CONNECTION QUANTITY	6 SINGLE SECTION
POLE QUANTITY	1 SINGLE SECTION FRONT
THROW QUANTITY	6 SINGLE SECTION FRONT
CONTACT VOLTAGE RATING IN VOLTS	600.0 AC AT SEA LEVEL 24.0 DC AT SEA LEVEL
CONTACT LOAD CURRENT RATING	12.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 12.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL
SWITCH ACTUATOR MOMENTARY POSITION	CLOCKWISE SINGLE ACTUATOR
SWITCH ACTUATOR INDEXING POSITION QUANTITY	6 SINGLE ACTUATOR
TERMINAL TYPE	SCREW
MOUNTING METHOD	UNTHREADED HOLE SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.161 INCHES NOMINAL SINGLE MOUNTING FACILITY
DISTANCE BETWEEN MOUNTING FACILITY CENTERS	1.420 INCHES NOMINAL SINGLE MOUNTING FACILITY
MANUFACTURERS CODE	30554
MFR SOURCE CONTROLLING REFERENCE	01-20001

Restrictions/Controls & Freight Information | NSN 5930-01-365-5466

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-365-5466

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
