Product Details | PUSH-PULL SWITCH

5930-01-364-9300 A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY.

Part Alternates: HM2700R, T971600107, 5930-01-364-9300, 01-364-9300, 5930013649300, 013649300

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 28 SEP 1992 01-364-9300

Drawings & Photos | NSN 5930-01-364-9300


Cross Reference | NSN 5930-01-364-9300

Part Number Cage Code Manufacturer
HM2700R 58756 CTS CORP ELECTROMECHANICAL DIV
HM2700R 71450 CTS CORP
T971600107 1JL37 TAU-TRON INC NORTHEAST ELECTRONICS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-364-9300

Technical Data | NSN 5930-01-364-9300

Characteristic Specifications
NONPILE-UP CONTACT ARRANGEMENT 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT

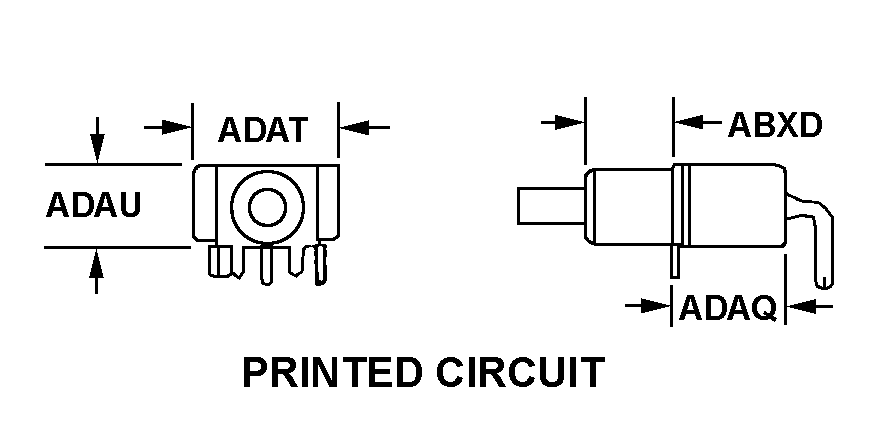

BODY STYLE 47K PRINTED CIRCUIT
BUSHING LENGTH 0.375 INCHES NOMINAL
BODY LENGTH 0.453 INCHES NOMINAL
BODY WIDTH 0.797 INCHES NOMINAL
BODY HEIGHT 0.938 INCHES NOMINAL

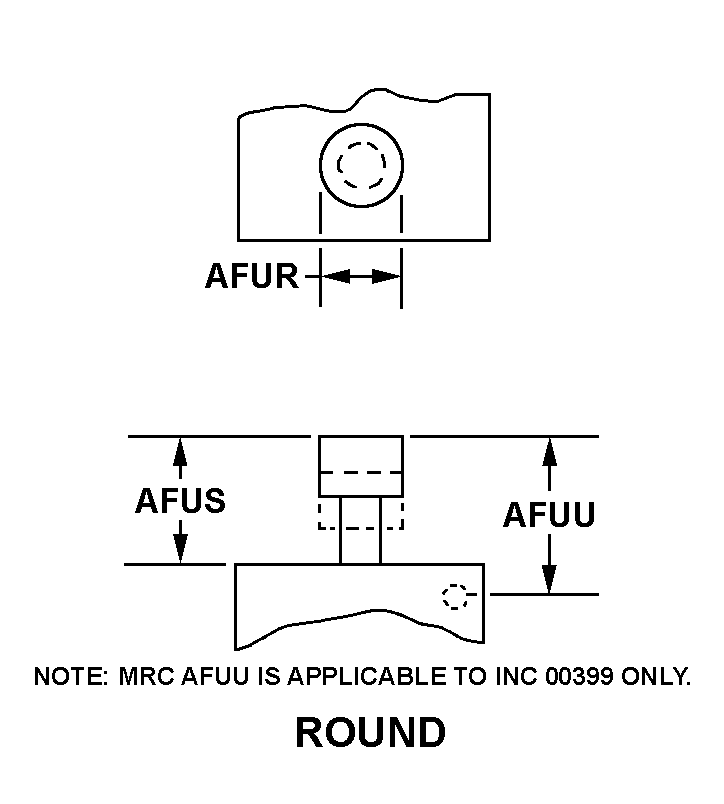

ACTUATOR STYLE 4 ROUND
ACTUATOR DIAMETER 0.250 INCHES NOMINAL
ACTUATOR HEIGHT 0.500 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY 3 TAB, SOLDER LUG
INCLOSURE TYPE UNINCLOSED
MOUNTING METHOD THREADED BUSHING
THREAD SERIES DESIGNATOR UNJEF
NOMINAL THREAD SIZE 0.375 INCHES
THREAD CLASS 2A
