NSN 5930-01-324-2220 9380973, 01-324-2220, 013242220

Product Details | SWITCH ASSEMBLY

5930-01-324-2220 Two or more complete switches mounted on each other or having a common mounting the major function of which is to hold the switches. Each switch, as a separable item, must be capable of functioning in accordance with its own name. Excludes items consisting of individually separable switches which are physically interlocked (e.g., one button returns when the other is pushed), which have a common actuator, or are electrically connected. See also SWITCH, PUSH.

Part Alternates: 9380973, 5930-01-324-2220, 01-324-2220, 5930013242220, 013242220

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 AUG 1990	01-324-2220	00711 ( SWITCH ASSEMBLY )

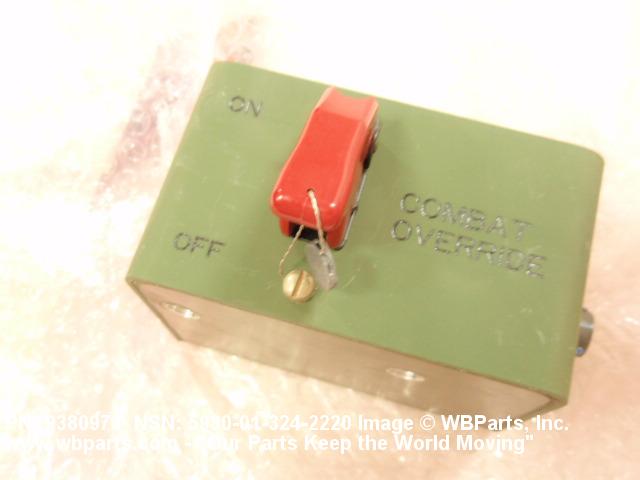

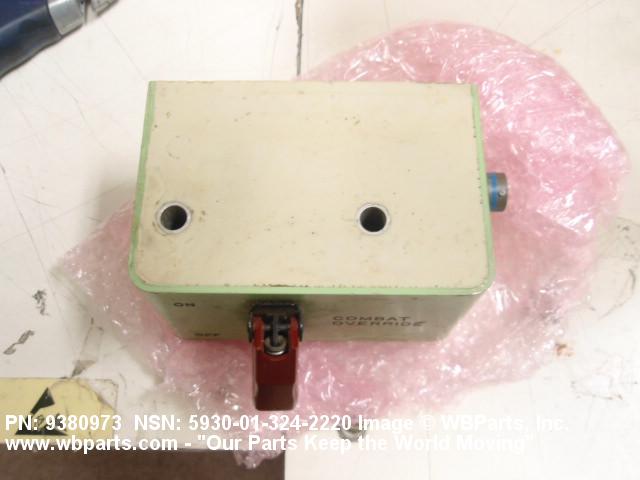

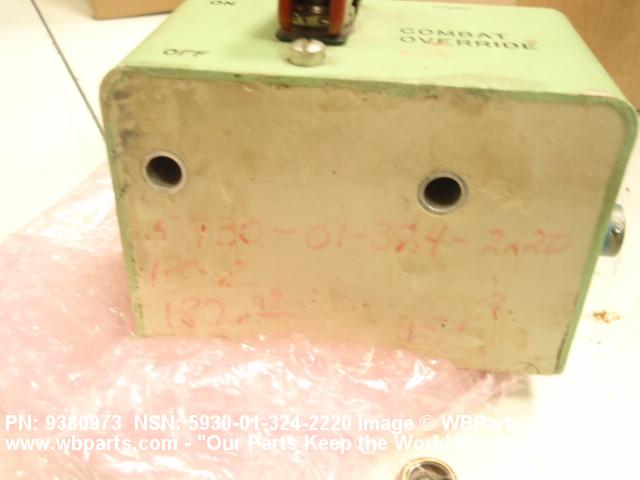

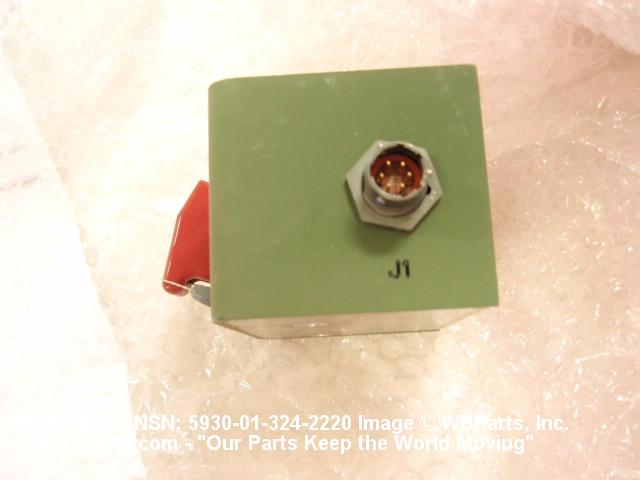

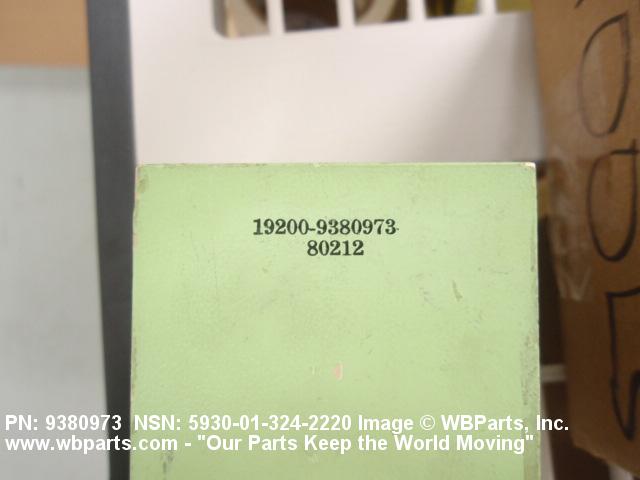

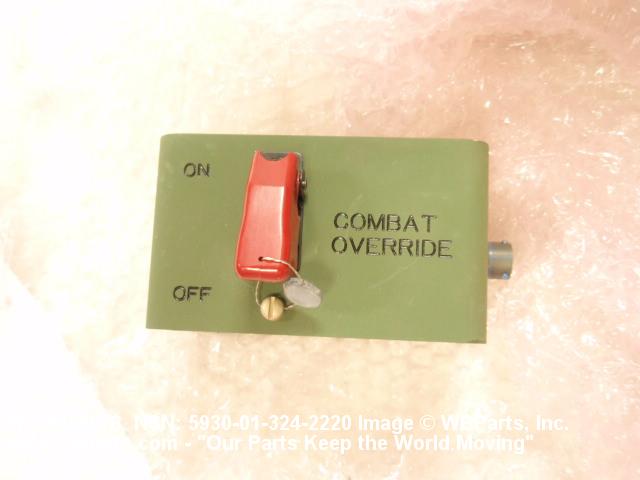

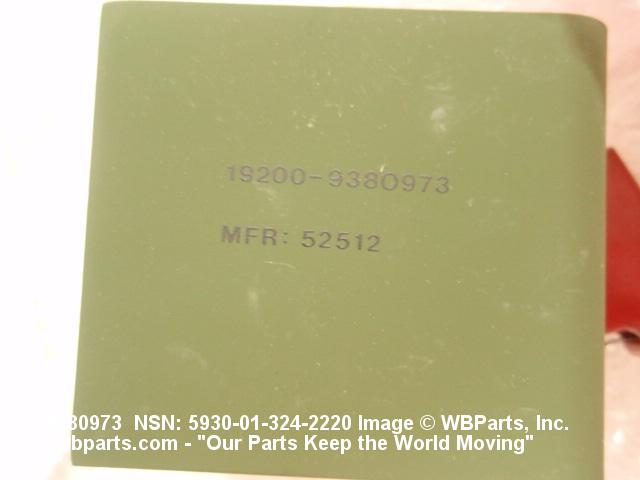

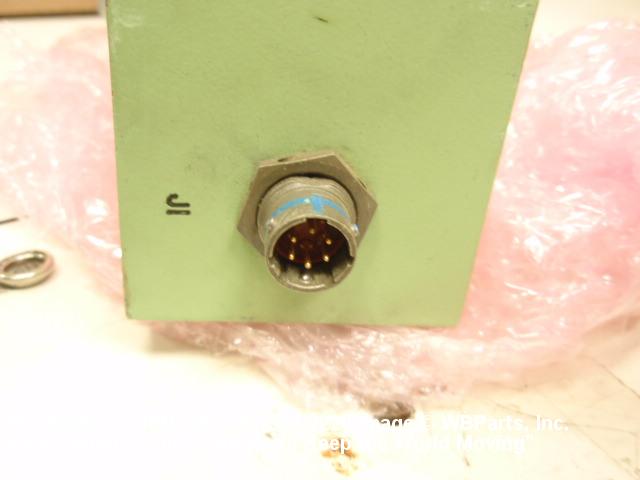

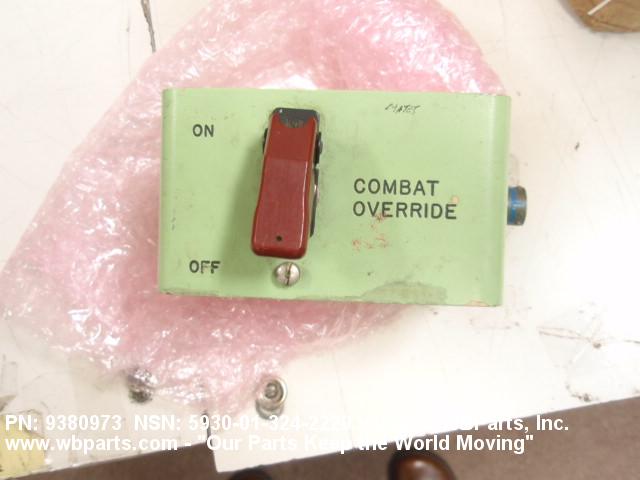

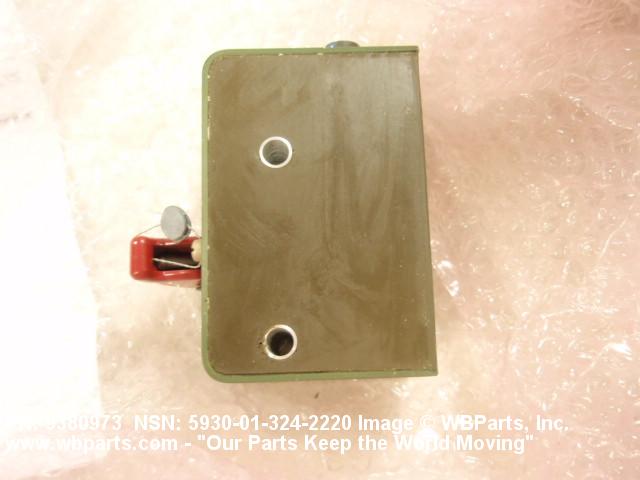

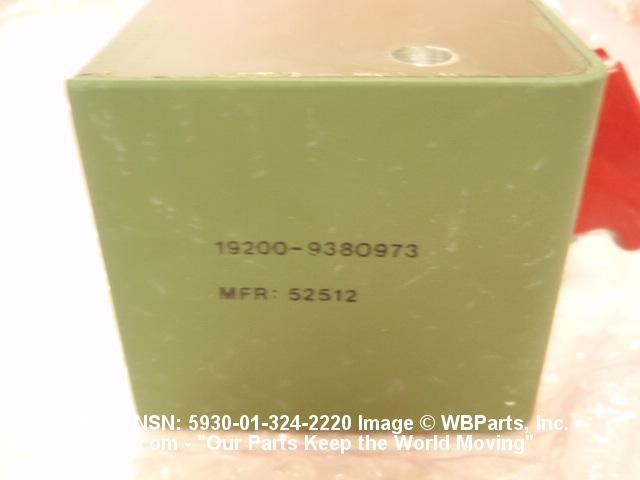

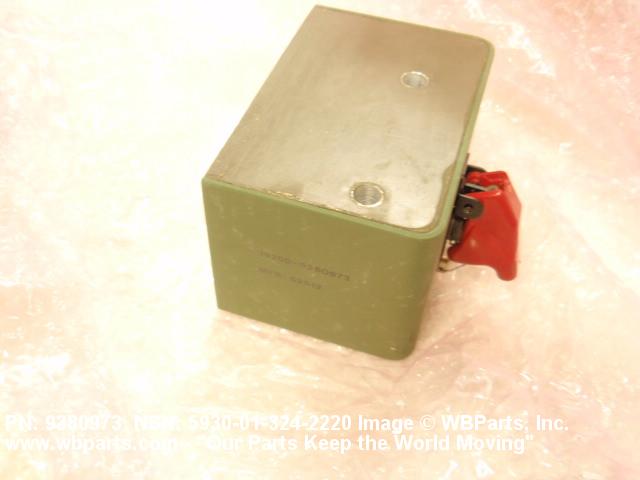

Drawings & Photos | NSN 5930-01-324-2220

Part Number	Request Date	QTY	Origin
5930-01-324-2220	2025-04-107	22	DIBBS
5930-01-324-2220	2025-04-96	22	DIBBS
5930-01-324-2220	2018-09-254	60	US
5930-01-324-2220	2018-09-246	59	DIBBS
5930-01-324-2220	2018-03-61	41	DIBBS
5930-01-324-2220	2018-02-50	41	DIBBS
9380973	2017-11-319	20	US
5930-01-324-2220	2016-11-329	51	DIBBS
5930-01-324-2220	2016-10-277	45	US
5930-01-324-2220	2016-09-265	45	DIBBS
5930-01-324-2220	2016-04-112	13	US
5930-01-324-2220	2015-07-201	23	DIBBS
9380973	2014-08-233	4	US
9380973	2014-08-233	7	US
9380973	2012-10-292	4	US
9380973	2012-10-289	4	US
5930-01-324-2220	2011-07-186	1	United States
5930-01-324-2220	2011-07-186	5	United States
9380973	2011-07-186	6	US
9380973	2010-09-250	24	United States
9380973	2010-08-235	24	United States
5930-01-324-2220	2010-06-168	25	United States
9380973	2010-06-167	24	United States

Cross Reference | NSN 5930-01-324-2220

Part Number	Cage Code	Manufacturer
9380973	19200	US ARMY ARDEC RDECOM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-324-2220

Compare

Related Products | NSN 5930-01-324-2220

5930-01-324-2259, 5930-01-324-2263, 5930-01-324-2358, 5930-01-324-2359, 5930-01-324-2360

Technical Data | NSN 5930-01-324-2220

Characteristic	Specifications
INDIVIDUAL SWITCH QUANTITY	1
SWITCH TYPE	TOGGLE
CONTROLLING AGENCY	ARMY
IDENTIFYING NUMBER	9380973 DRAWING NO.
SPECIAL FEATURES	CONSISTS OF:BRACKET,P/N 12328841;GUARD,P/N MS25224-3;WIRE,P/N 19207-8720150;SCREW,P/N MS35265-60;NUT,P/N MS35649-202;2 SPACERS,P/N NAS43DD5-168;AR-WIRE,P/N M81044/12-20-9;CONNECTOR,P/N MS3474W10-6P;3 SPLICES,P/N M83519/1-1;SEMICONDUCTOR DEVICE,P/N JAN1N5551
III END ITEM IDENTIFICATION	USED ON ABF538 AH1
MANUFACTURERS CODE	19200
DESIGN CONTROL REFERENCE	9380973

Restrictions/Controls & Freight Information | NSN 5930-01-324-2220

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	BF	U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-324-2220

Army

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	M	Armored Carriers
Weapons Systems/End Item or Homogeneous Group	MM	Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
