Product Details | ROTARY SWITCH
5930-01-318-2911 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 24205B, 5930-01-318-2911, 01-318-2911, 5930013182911, 013182911
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 APR 1990 | 01-318-2911 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-318-2911
Cross Reference | NSN 5930-01-318-2911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24205B | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-318-2911
Related Products | NSN 5930-01-318-2911
Technical Data | NSN 5930-01-318-2911
| Characteristic | Specifications |
|---|---|

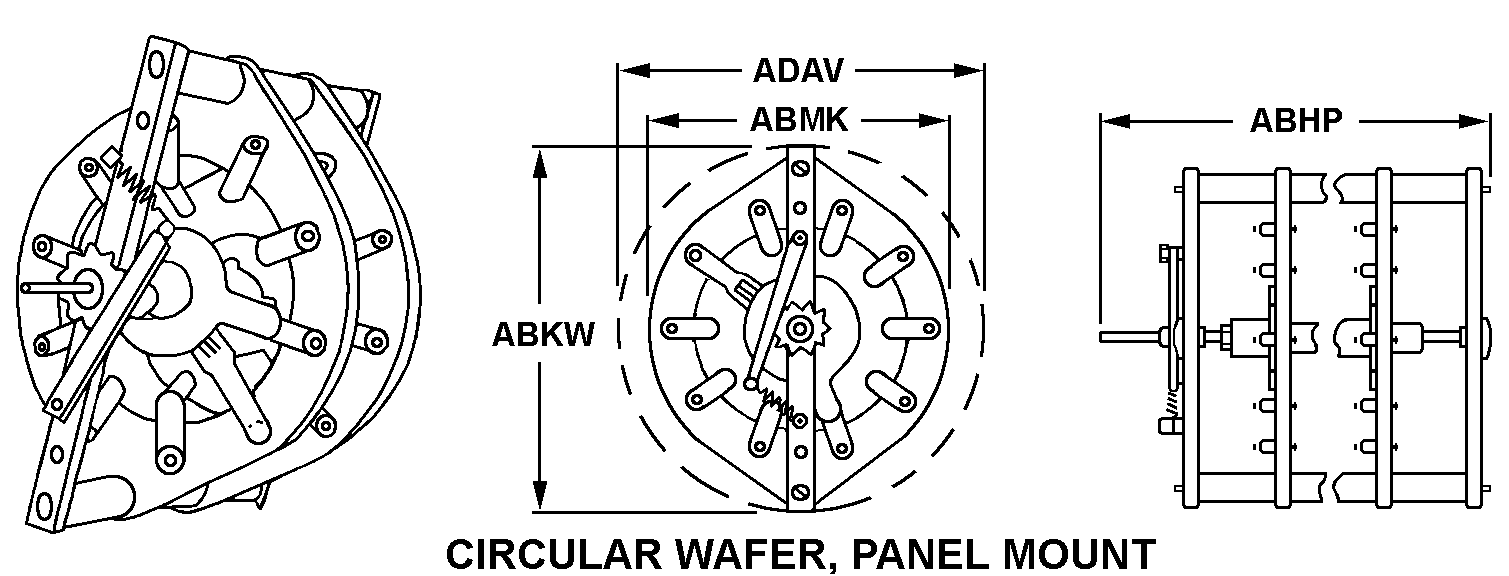

| STYLE DESIGNATOR | 5A CIRCULAR WAFER, PANEL MOUNT |
| OVERALL LENGTH | 7.100 INCHES NOMINAL |
| OVERALL DIAMETER | 3.250 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 5 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| CONTACT VOLTAGE RATING IN VOLTS | 600.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL 120.0 LOWEST AC VOLTAGE RATING AT SEA LEVEL 250.0 HIGHEST DC VOLTAGE RATING AT SEA LEVEL 125.0 LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 6.0 AMPERES RESISTIVE LOAD HIGHEST AC VOLTAGE RATING AT SEA LEVEL 20.0 AMPERES RESISTIVE LOAD LOWEST AC VOLTAGE RATING AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD HIGHEST DC VOLTAGE RATING AT SEA LEVEL 3.0 AMPERES RESISTIVE LOAD LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET AND THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.190 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 24 SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.188 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-318-2911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
