Product Details | TOGGLE SWITCH

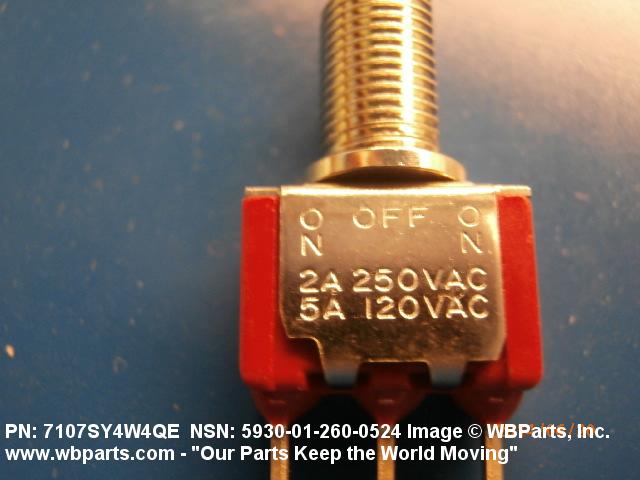

5930-01-260-0524 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 2665444170, 266-5444-170, 7107SY4W4QE, 5930-01-260-0524, 01-260-0524, 5930012600524, 012600524
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUL 1987 | 01-260-0524 | 00184 ( SWITCH, TOGGLE ) |

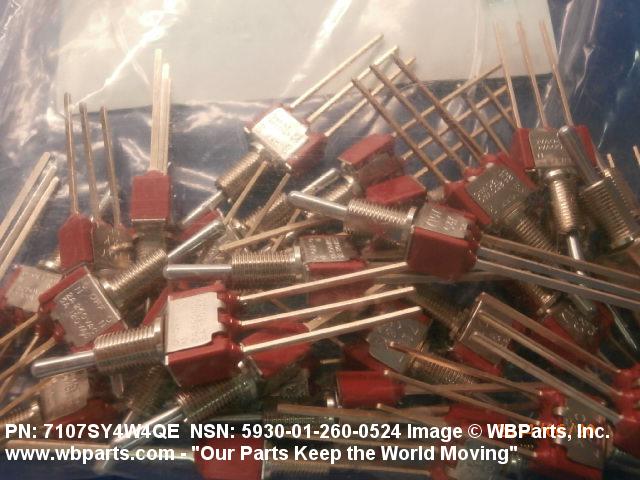

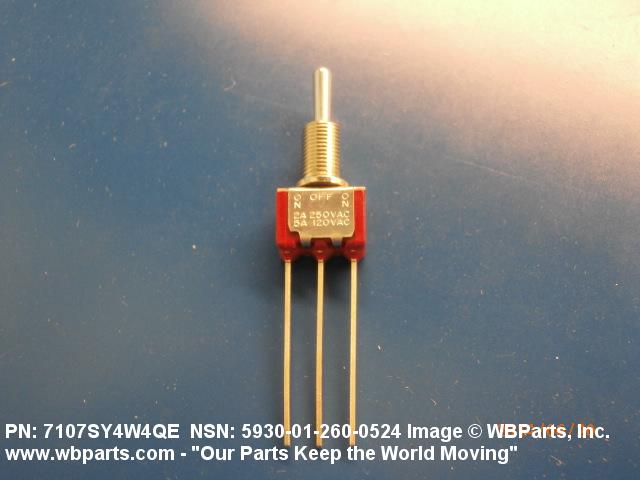

Drawings & Photos | NSN 5930-01-260-0524
Demand History | NSN 5930-01-260-0524
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7107SY4W4QE | 2014-10-280 | 15 | United States |
| 7107SY4W4QE | 2014-05-136 | 30 | United States |
| 5930-01-260-0524 | 2011-05-140 | 16 | DIBBS |
| 5930-01-260-0524 | 2011-05-126 | 20 | DIBBS |
| 5930-01-260-0524 | 2011-03-67 | 9 | DIBBS |
| 5930-01-260-0524 | 2008-08-242 | 9 | DIBBS |
| 5930-01-260-0524 | 2007-04-119 | 1 | DIBBS |
| 5930-01-260-0524 | 2007-04-113 | 1 | DIBBS |
| 5930-01-260-0524 | 2006-04-94 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-260-0524
Related Products | NSN 5930-01-260-0524
Technical Data | NSN 5930-01-260-0524
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.378 INCHES NOMINAL |
| BODY LENGTH | 0.531 INCHES MAXIMUM |
| BODY WIDTH | 0.283 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.412 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.115 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.410 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 PRINTED CIRCUIT |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND MOISTURE RESISTANT AND VIBRATION RESISTANT |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| III OVERALL LENGTH | 0.531 INCHES MAXIMUM |
| III OVERALL WIDTH | 0.283 INCHES MAXIMUM |
| III OVERALL HEIGHT | 2.200 INCHES NOMINAL |
