NSN 5930-01-259-1998 704AS9995, 8999951, 899995-1
Product Details | ROTARY SWITCH
5930-01-259-1998 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 704AS9995, 8999951, 899995-1, 5930-01-259-1998, 01-259-1998, 5930012591998, 012591998
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 JUL 1987 | 01-259-1998 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-01-259-1998
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-259-1998
Technical Data | NSN 5930-01-259-1998
| Characteristic | Specifications |
|---|---|

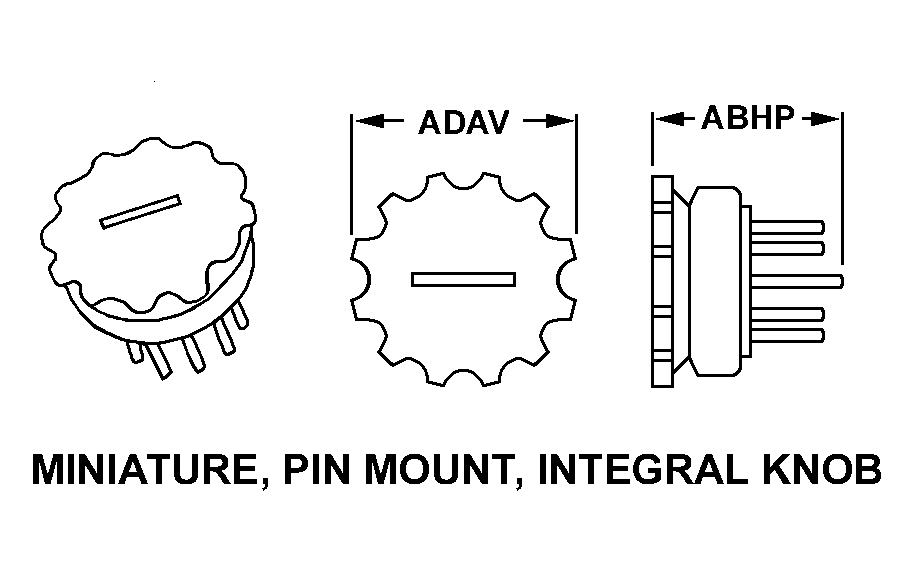

| STYLE DESIGNATOR | 20 MINIATURE, PIN MOUNT, INTEGRAL KNOB |
| OVERALL LENGTH | 0.549 INCHES NOMINAL |
| OVERALL DIAMETER | 0.550 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 SINGLE SECTION REAR |
| THROW QUANTITY | 5 SINGLE SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 250.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 5 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 36.0 DEGREES SINGLE ACTUATOR |
| TERMINAL TYPE | PIN |
| MOUNTING METHOD | TERMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| III UNPACKAGED UNIT WEIGHT | 0.110 OUNCES |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND SALT SPRAY RESISTANT AND VIBRATION RESISTANT |
| III OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| III DETENT ROTATIONAL TORQUE RANGE | 1.0 TO 8.0 INCH-OUNCES SINGLE ACTUATOR |
