Product Details | TOGGLE SWITCH
5930-01-232-6432 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 7503K15, 5930-01-232-6432, 01-232-6432, 5930012326432, 012326432
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAY 1986 | 01-232-6432 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-232-6432
Demand History | NSN 5930-01-232-6432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7503K15 | 2023-05-129 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-232-6432
Related Products | NSN 5930-01-232-6432
Technical Data | NSN 5930-01-232-6432
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE AC |

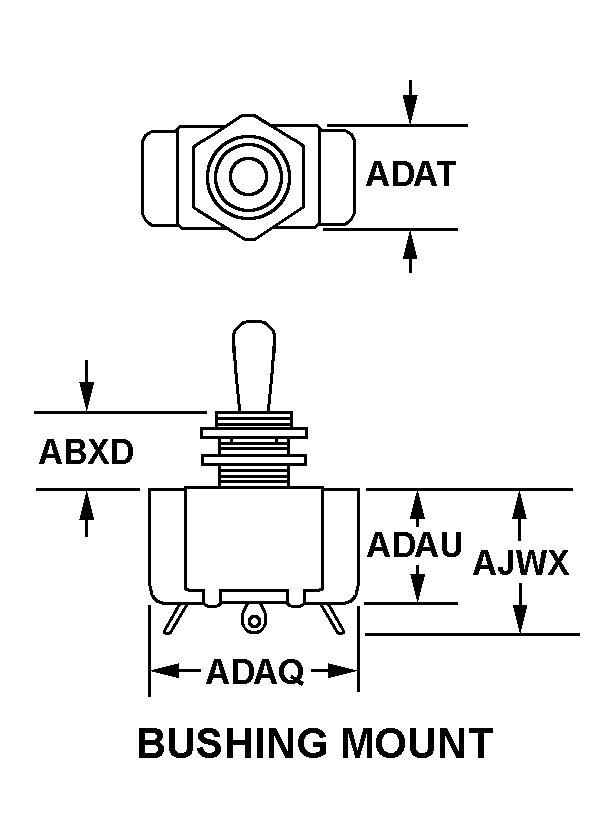

| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.469 INCHES NOMINAL |
| BODY LENGTH | 1.125 INCHES NOMINAL |
| BODY WIDTH | 0.625 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.125 INCHES NOMINAL |

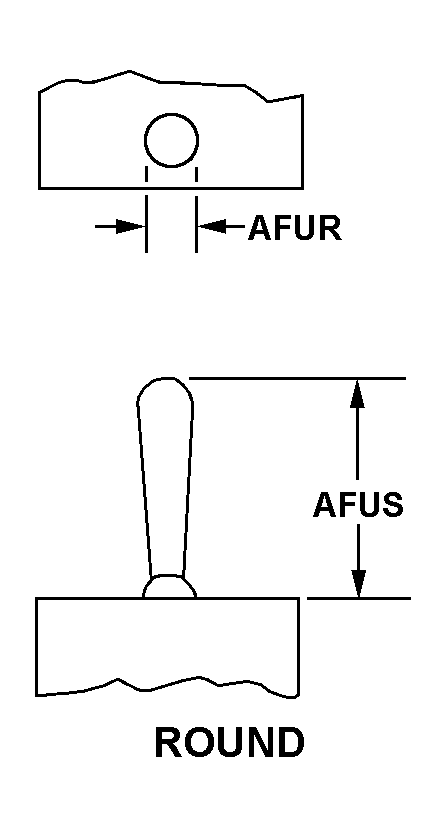

| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR HEIGHT | 0.563 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 QUICK DISCONNECT, MALE |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.468 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| III END ITEM IDENTIFICATION | 3510-01-165-6845 LAUNDRY UNIT |
