NSN 5930-01-228-0683 24206B, 01-228-0683, 012280683
Product Details | ROTARY SWITCH
5930-01-228-0683 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 24206B, 5930-01-228-0683, 01-228-0683, 5930012280683, 012280683
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAR 1986 | 01-228-0683 | 02134 ( SWITCH, ROTARY ) |

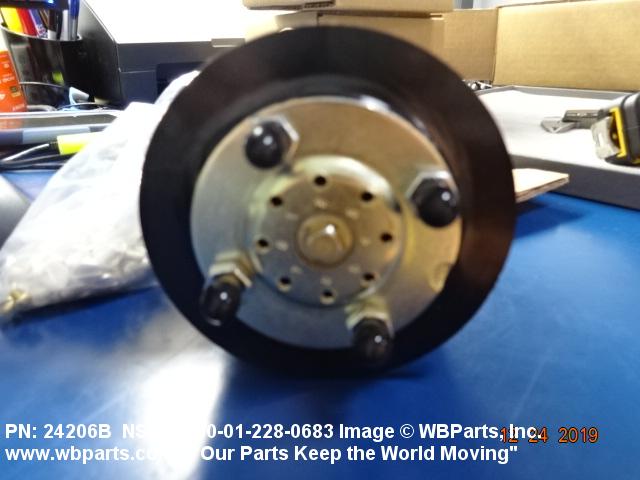

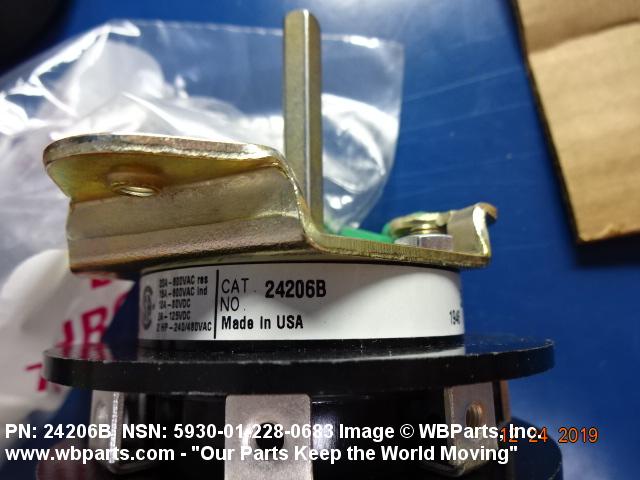

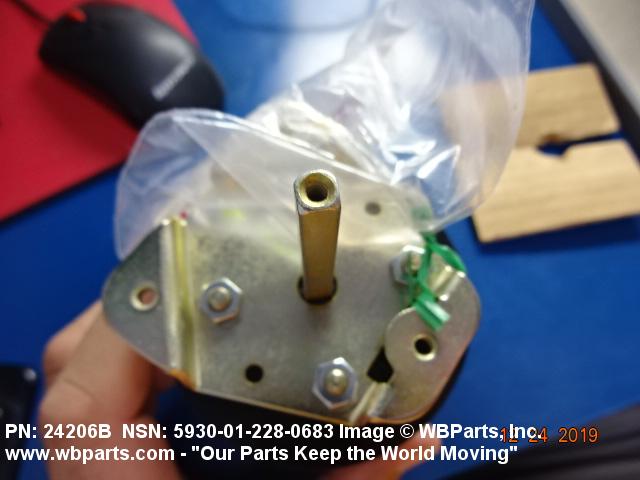

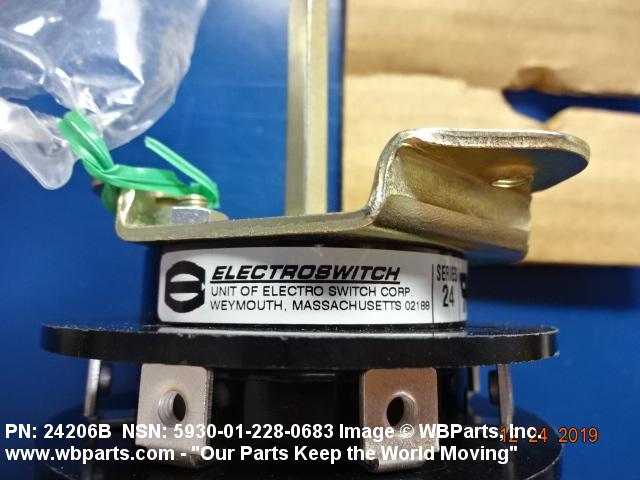

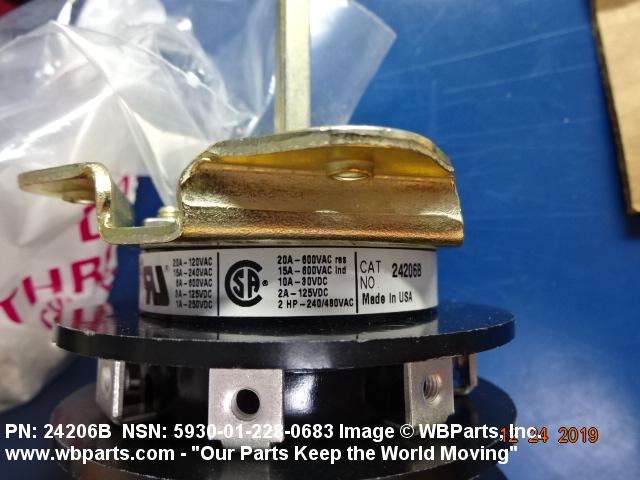

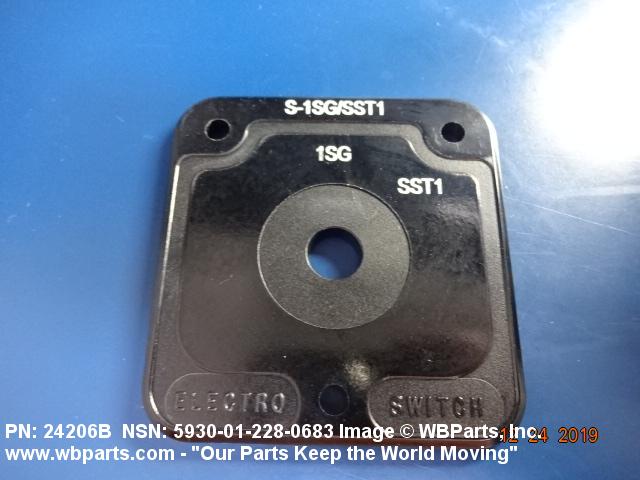

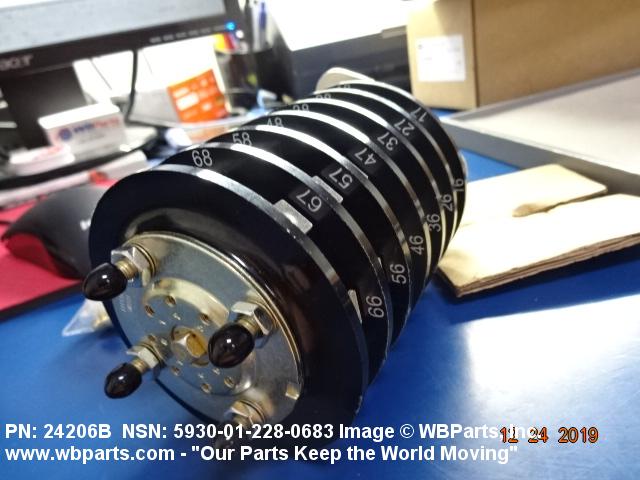

Drawings & Photos | NSN 5930-01-228-0683
Demand History | NSN 5930-01-228-0683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-228-0683 | 2019-11-308 | 1 | United States |
| 5930-01-228-0683 | 2019-10-275 | 3 | United States |
| 5930-01-228-0683 | 2012-03-69 | 0 | DIBBS |
| 5930-01-228-0683 | 2011-08-227 | 0 | DIBBS |
| 5930-01-228-0683 | 2011-05-125 | 35 | DIBBS |
| 5930-01-228-0683 | 2011-04-109 | 28 | DIBBS |
| 5930-01-228-0683 | 2011-01-18 | 27 | DIBBS |
| 5930-01-228-0683 | 2010-11-327 | 96 | CA |
| 5930-01-228-0683 | 2010-11-316 | 25 | DIBBS |
| 5930-01-228-0683 | 2010-11-316 | 29 | DIBBS |
| 5930-01-228-0683 | 2010-11-316 | 36 | DIBBS |
| 5930-01-228-0683 | 2010-11-305 | 25 | DIBBS |
| 5930-01-228-0683 | 2010-11-305 | 29 | DIBBS |
| 5930-01-228-0683 | 2010-09-260 | 25 | DIBBS |
| 5930-01-228-0683 | 2010-08-215 | 29 | DIBBS |
| 5930-01-228-0683 | 2010-03-64 | 23 | DIBBS |
| 5930-01-228-0683 | 2009-05-125 | 28 | DIBBS |
| 5930-01-228-0683 | 2008-12-337 | 40 | DIBBS |
| 5930-01-228-0683 | 2008-09-262 | 6 | DIBBS |
| 5930-01-228-0683 | 2007-02-36 | 39 | DIBBS |
Cross Reference | NSN 5930-01-228-0683
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24206B | 82121 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-228-0683
Related Products | NSN 5930-01-228-0683
Technical Data | NSN 5930-01-228-0683
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 TAP, CIRCUIT SELECTOR |
| OVERALL LENGTH | 7.850 INCHES NOMINAL |
| OVERALL HEIGHT | 2.910 INCHES NOMINAL |
| OVERALL WIDTH | 2.810 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 6 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 EACH SECTION PERIPHERY |
| THROW QUANTITY | 8 EACH SECTION PERIPHERY |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION PERIPHERY |
| CONTACT VOLTAGE RATING IN VOLTS | 600.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL 120.0 LOWEST AC VOLTAGE RATING AT SEA LEVEL 250.0 HIGHEST DC VOLTAGE RATING AT SEA LEVEL 125.0 LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 6.0 AMPERES RESISTIVE LOAD HIGHEST AC VOLTAGE RATING AT SEA LEVEL 20.0 AMPERES RESISTIVE LOAD LOWEST AC VOLTAGE RATING AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD HIGHEST DC VOLTAGE RATING AT SEA LEVEL 3.0 AMPERES RESISTIVE LOAD LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5930-01-228-0683
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-228-0683
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
