NSN 5930-01-227-8377 6NNK3Y1C1A, 6NN-K3-Y1-C1A, 01-227-8377
Product Details | PRESSURE SWITCH
5930-01-227-8377 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 6NNK3Y1C1A, 6NN-K3-Y1-C1A, 5930-01-227-8377, 01-227-8377, 5930012278377, 012278377
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 MAR 1986 | 01-227-8377 | 00206 ( SWITCH, PRESSURE ) |

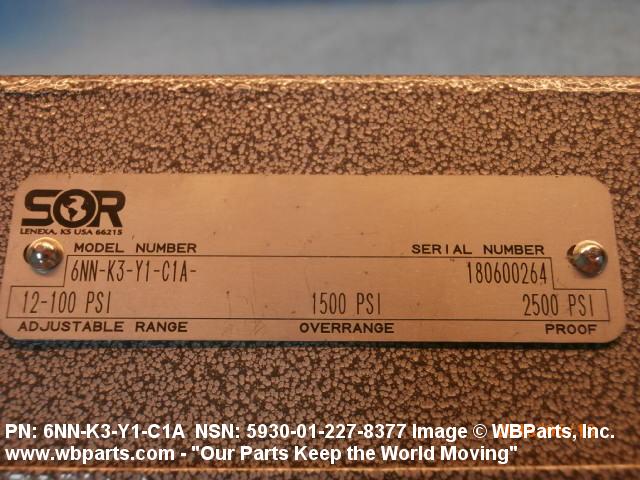

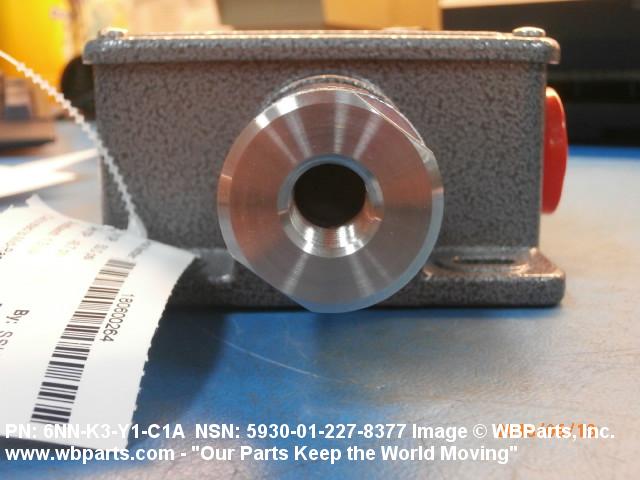

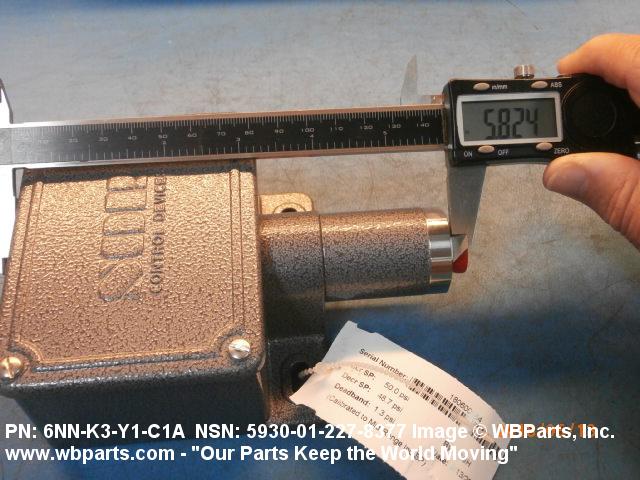

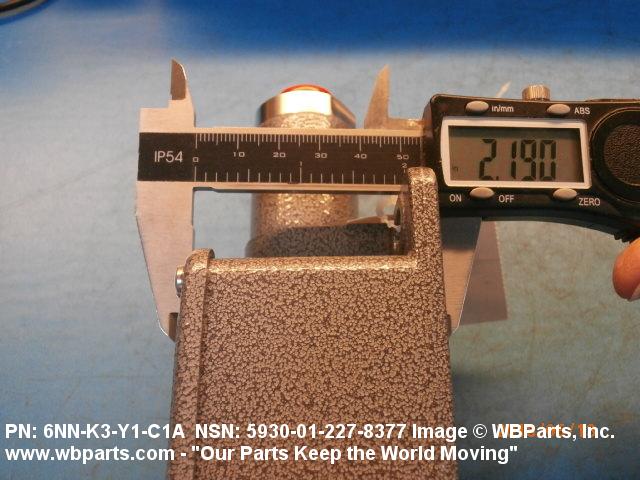

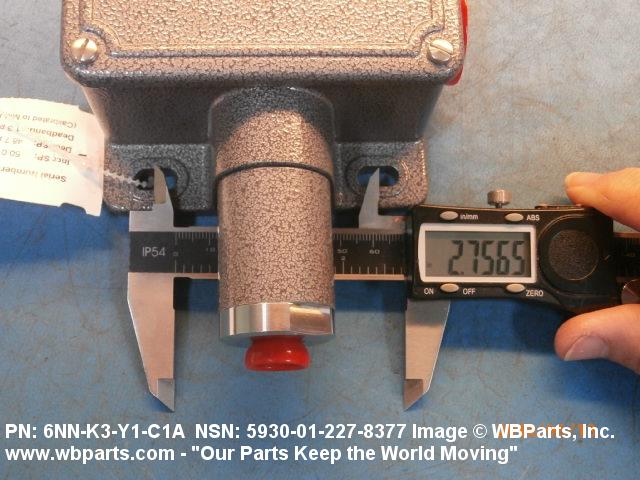

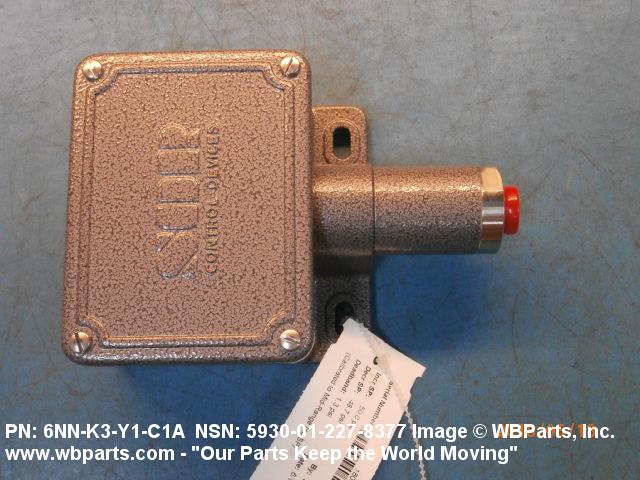

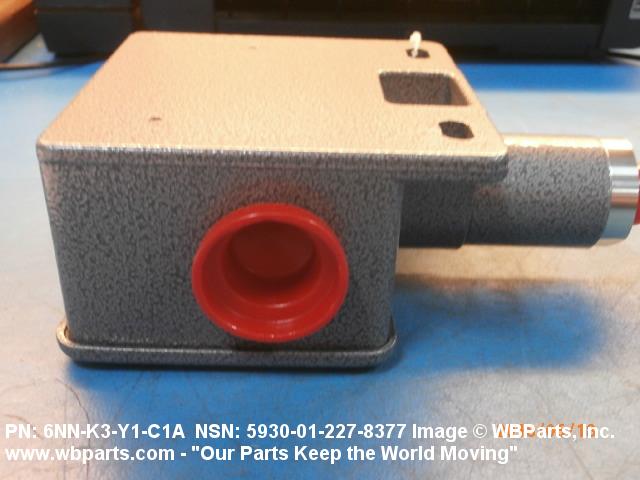

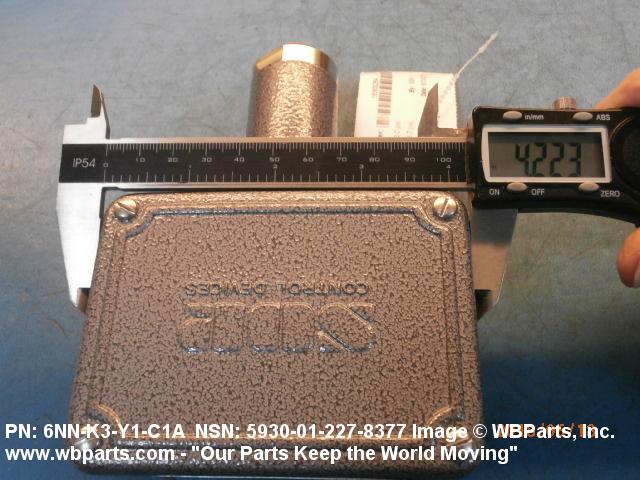

Drawings & Photos | NSN 5930-01-227-8377
Demand History | NSN 5930-01-227-8377
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-227-8377 | 2018-05-129 | 1 | United States |
| 5930-01-227-8377 | 2018-04-96 | 1 | United States |
Cross Reference | NSN 5930-01-227-8377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6NN-K3-Y1-C1A | 34950 | SOR INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-227-8377
Related Products | NSN 5930-01-227-8377
Technical Data | NSN 5930-01-227-8377
| Characteristic | Specifications |
|---|---|
| CONTACT VOLTAGE RATING IN VOLTS | 480.0 AC AT SEA LEVEL FIRST VOLTAGE |
| OVERALL HEIGHT | 5.360 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| OVERALL LENGTH | 4.220 INCHES NOMINAL |
| MOUNTING METHOD | FLANGE AND UNTHREADED HOLE |
| PRESSURE SWITCH TYPE | GAGE |
| CONTACT ADJUSTMENT RANGE | +12.00 TO 100.00 ACTUATION POINT POUNDS PER SQUARE INCH |
| CONTACT ADJUSTMENT TYPE | INTERNAL ACTUATION POINT HEX NUT WITH SCALE |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
| PROOF PRESSURE | 2500.00 POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | RECTANGULAR |
| CONTACT LOAD CURRENT RATING | 0.4 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 15.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE |
| THREAD SERIES DESIGNATOR | NPT SINGLE PRESSURE CONNECTION |
| OVERALL WIDTH | 2.230 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-01-227-8377
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-227-8377
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
