NSN 5930-01-226-3671 10620 EMI-BF-RPB-12M0Y1F1DWL1-0-, 10620EMIBFRPB12M0Y1F1DWL10, 10620WE913
Product Details | PUSH SWITCH
5930-01-226-3671 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

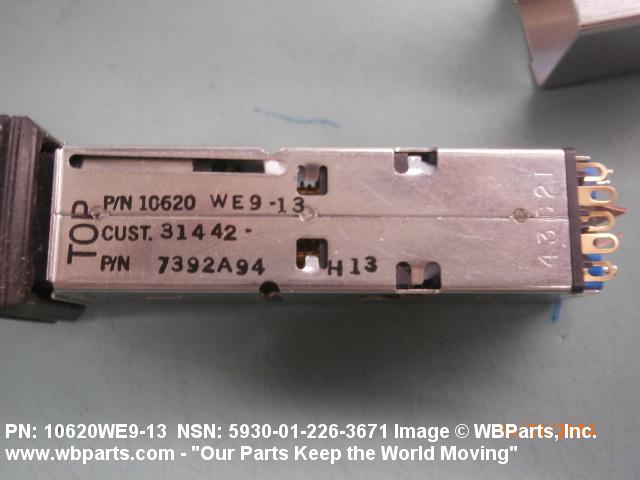

Part Alternates: 10620 EMI-BF-RPB-12M0Y1F1DWL1-0-, 10620EMIBFRPB12M0Y1F1DWL10, 10620WE913, 10620WE9-13, 7392A94H13, 5930-01-226-3671, 01-226-3671, 5930012263671, 012263671
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 1986 | 01-226-3671 | 00406 ( SWITCH, PUSH ) |

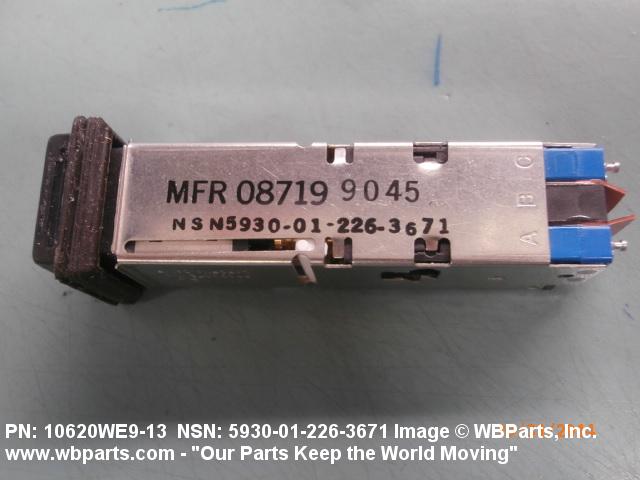

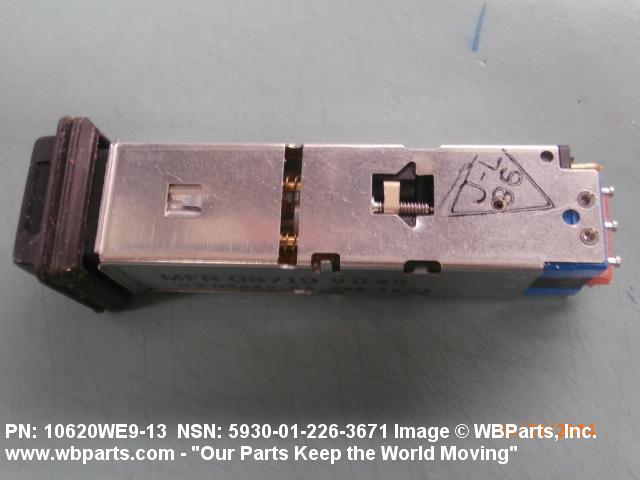

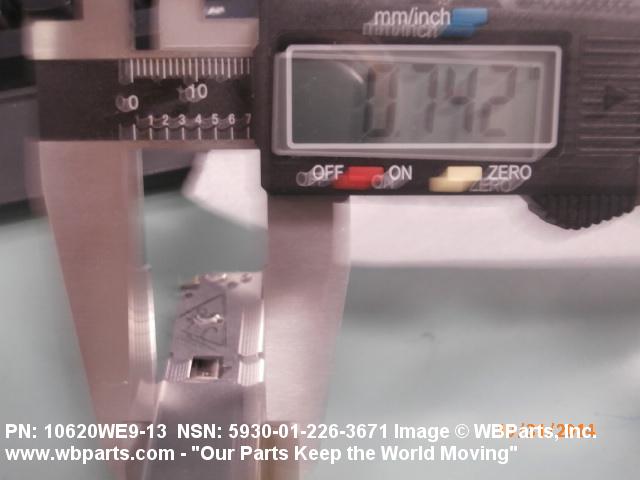

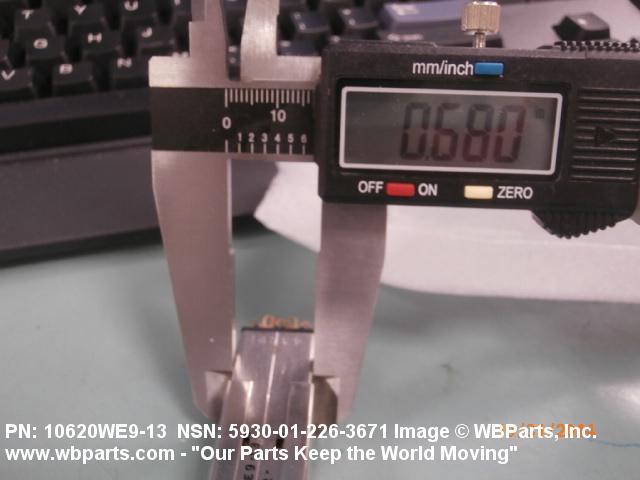

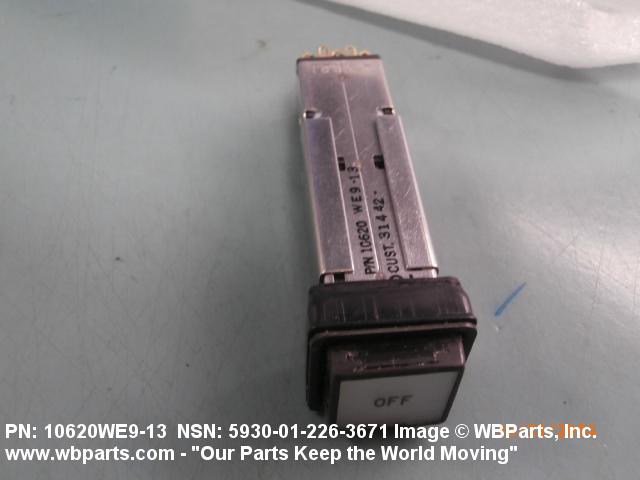

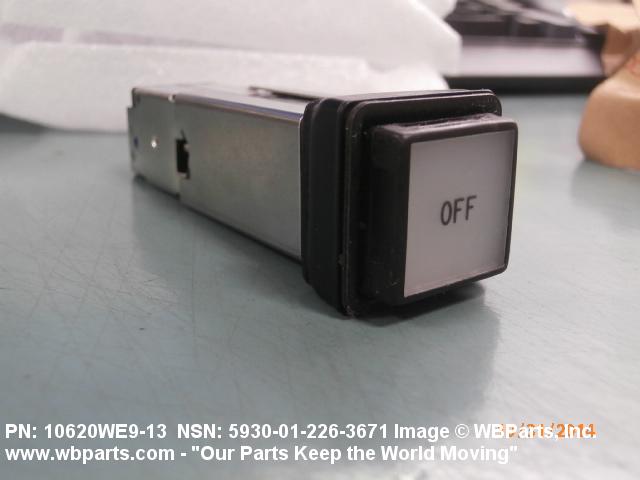

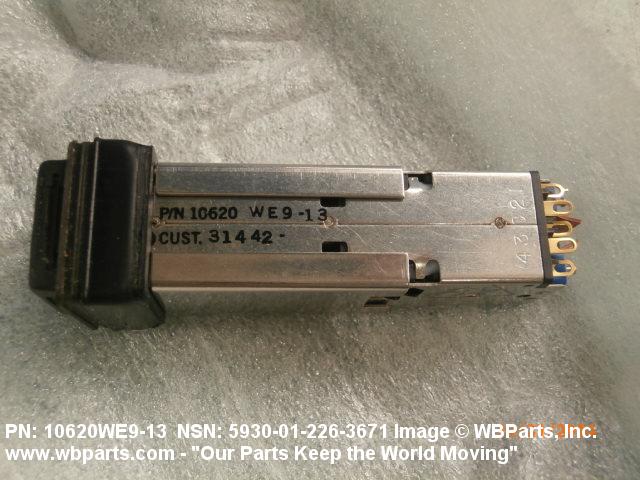

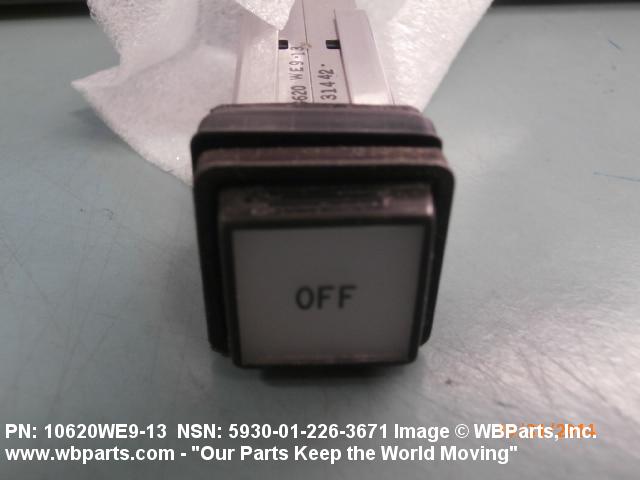

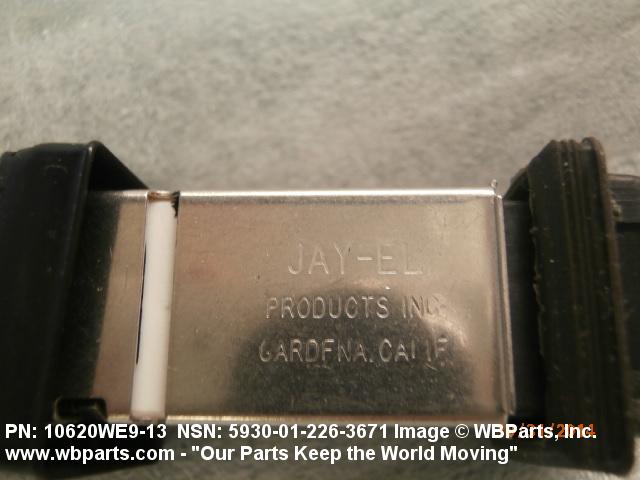

Drawings & Photos | NSN 5930-01-226-3671
Demand History | NSN 5930-01-226-3671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-226-3671 | 2014-10-300 | 1 | United States |
| 5930-01-226-3671 | 2014-10-279 | 17 | DIBBS |
| 5930-01-226-3671 | 2014-09-266 | 17 | DIBBS |
| 5930-01-226-3671 | 2012-09-249 | 10 | DIBBS |
| 5930-01-226-3671 | 2012-06-181 | 11 | DIBBS |
| 5930-01-226-3671 | 2012-06-171 | 2 | DIBBS |
| 5930-01-226-3671 | 2011-06-155 | 12 | DIBBS |
| 5930-01-226-3671 | 2011-01-07 | 4 | DIBBS |
| 5930-01-226-3671 | 2010-08-243 | 3 | DIBBS |
Cross Reference | NSN 5930-01-226-3671
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-226-3671
Technical Data | NSN 5930-01-226-3671
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 7.000 AMPERES RESISTIVE DC AND 4.000 AMPERES INDUCTIVE DC AND 2.500 AMPERES LAMP DC AND 7.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC |
| BODY STYLE | 30K PANEL MOUNT |
| BODY LENGTH | 0.688 INCHES MAXIMUM |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |

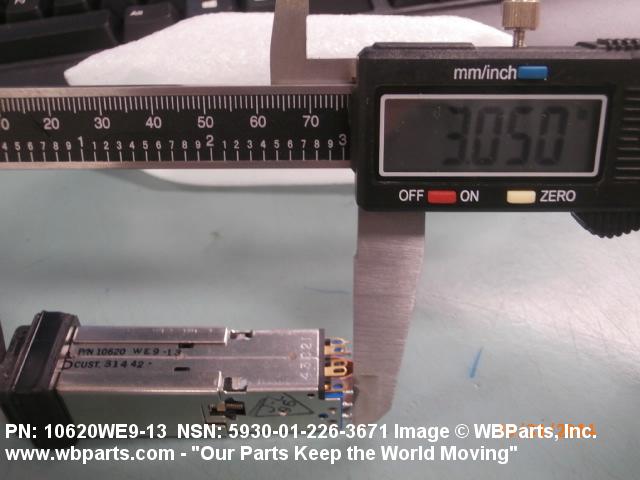

| OVERALL HEIGHT | 3.050 INCHES NOMINAL |
| ACTUATOR STYLE | 13 RECTANGULAR |
| ACTUATOR LENGTH | 0.620 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.150 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.620 INCHES NOMINAL |
| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | WHITE SINGLE ACTUATOR |

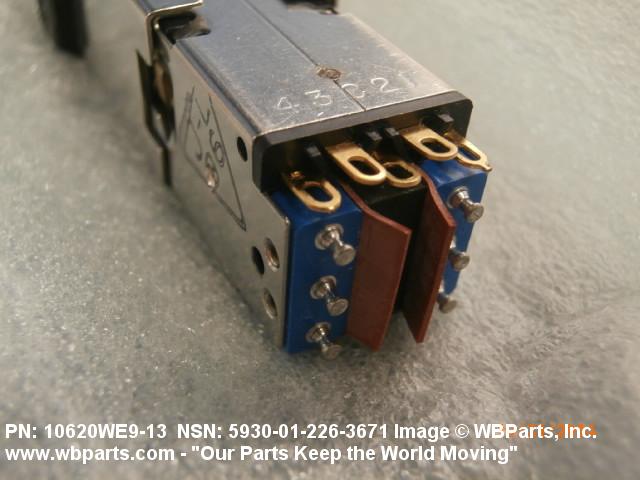

| TERMINAL TYPE AND QUANTITY | 6 TURRET AND 5 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| MOUNTING METHOD | PANEL |
| FEATURES PROVIDED | RFI SHIELDING |
| III CASE MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5930-01-226-3671
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-226-3671
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
