Product Details | PUSH SWITCH

5930-01-208-9186 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

Part Alternates: 8221L3, 5930-01-208-9186, 01-208-9186, 5930012089186, 012089186

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 21 MAY 1985 01-208-9186

Drawings & Photos | NSN 5930-01-208-9186


Cross Reference | NSN 5930-01-208-9186

Part Number Cage Code Manufacturer
8221L3 09353 C AND K COMPONENTS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-208-9186

Technical Data | NSN 5930-01-208-9186

Characteristic Specifications
MAXIMUM VOLTAGE RATING IN VOLTS 120.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 1.000 AMPERES RESISTIVE DC AND 1.000 AMPERES RESISTIVE AC

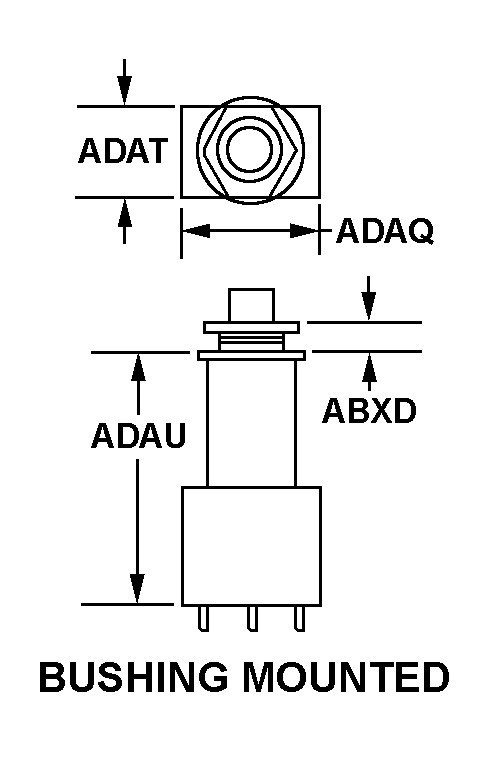

BODY STYLE 34K BUSHING MOUNTED
BUSHING LENGTH 0.250 INCHES NOMINAL
BODY LENGTH 0.500 INCHES NOMINAL
BODY WIDTH 0.450 INCHES NOMINAL
BODY HEIGHT 0.565 INCHES NOMINAL
ACTUATOR STYLE 27 ROUND
ACTUATOR DIAMETER 0.122 INCHES NOMINAL
ACTUATOR HEIGHT 0.218 INCHES NOMINAL
ACTUATOR COLOR RED SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY 6 PIN
INCLOSURE TYPE FULLY INCLOSED

Restrictions/Controls & Freight Information | NSN 5930-01-208-9186

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
