NSN 5930-01-202-8432 M9419/1-001, M94191001, MIL-S-9419/1
Product Details | TOGGLE SWITCH
5930-01-202-8432 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: M9419/1-001, M94191001, MIL-S-9419/1, MILS94191, 5930-01-202-8432, 01-202-8432, 5930012028432, 012028432
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 MAR 1985 | 01-202-8432 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-202-8432
Demand History | NSN 5930-01-202-8432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-202-8432 | 2022-03-87 | 5 | United States |
| MILS94191 | 2021-12-343 | 1 | US |
| 5930-01-202-8432 | 2018-10-292 | 10 | SG |
| 5930-01-202-8432 | 2018-01-30 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-202-8432
Technical Data | NSN 5930-01-202-8432
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 FOUR THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 2.000 AMPERES INDUCTIVE DC |
| BODY STYLE | 3P HOLE MOUNT |
| BODY DIAMETER | 0.623 INCHES MAXIMUM |
| BODY LENGTH | 0.830 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.000 INCHES NOMINAL |

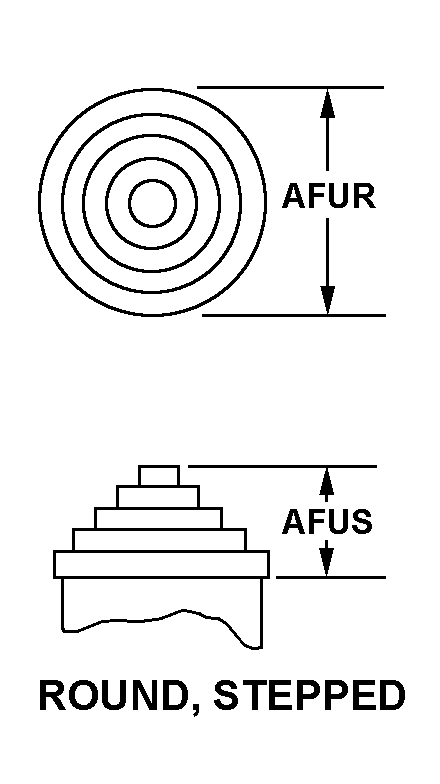

| ACTUATOR STYLE | 9 ROUND, STEPPED |
| ACTUATOR DIAMETER | 0.700 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.410 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | CENTER POSITION MAINTAINED AND LEFT POSITION MOMENTARY AND RIGHT POSITION MOMENTARY AND UP POSITION MAINTAINED |
| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ACTUATOR INSCRIPTION | RECESSED WHITE FILLED ARROWS SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG AND 1 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | UNTHREADED HOLE |
| TEST DATA DOCUMENT | 81349-MIL-S-9419 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-9419/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-9419/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M9419/1-001 |
Restrictions/Controls & Freight Information | NSN 5930-01-202-8432
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
