NSN 5930-01-197-9465 MS2778122D, MS27781-22D, MILS3950

Product Details | TOGGLE SWITCH

5930-01-197-9465 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS2778122D, MS27781-22D, MILS3950, MIL-S-3950, 5930-01-197-9465, 01-197-9465, 5930011979465, 011979465

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	31 DEC 1984	01-197-9465	00184 ( SWITCH, TOGGLE )

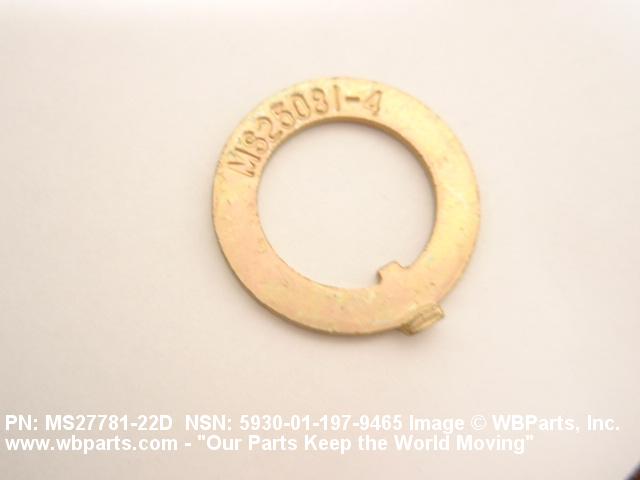

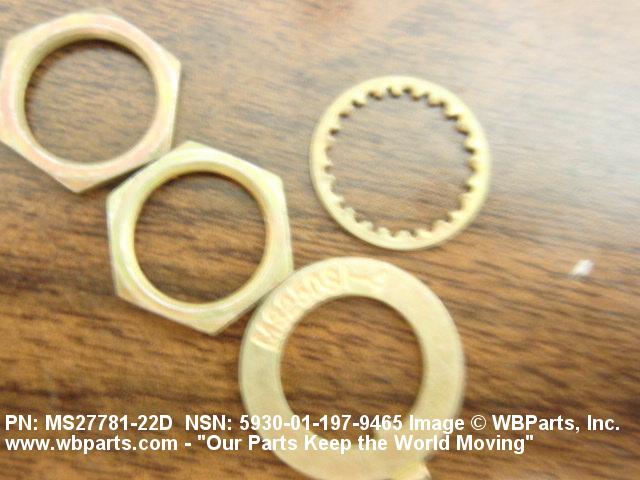

Drawings & Photos | NSN 5930-01-197-9465

Part Number	Request Date	QTY	Origin
5930-01-197-9465	2021-09-256	13	DIBBS
5930-01-197-9465	2021-08-243	13	DIBBS
MILS3950	2014-02-56	4	Canada
MILS3950	2013-01-11	48	US
5930-01-197-9465	2010-05-138	100	Canada
MS2778122D	2010-04-104	50	Canada
5930-01-197-9465	2008-04-101	75	DIBBS
5930-01-197-9465	2008-03-63	5	DIBBS
5930-01-197-9465	2007-07-188	4	DIBBS

Cross Reference | NSN 5930-01-197-9465

Part Number	Cage Code	Manufacturer
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27781-22D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-197-9465

Compare

Related Products | NSN 5930-01-197-9465

5930-01-197-9466, 5930-01-197-9467, 5930-01-197-9709, 5930-01-197-9710, 5930-01-197-9957

Technical Data | NSN 5930-01-197-9465

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, THREE POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC
BODY STYLE	9P BUSHING MOUNT
BUSHING LENGTH	0.470 INCHES NOMINAL
BODY LENGTH	1.270 INCHES MAXIMUM
BODY WIDTH	0.635 INCHES MAXIMUM
BODY HEIGHT	1.662 INCHES MAXIMUM
ACTUATOR STYLE	26 ROUND
ACTUATOR DIAMETER	0.420 INCHES NOMINAL
ACTUATOR HEIGHT	1.050 INCHES MINIMUM AND 1.140 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED
ACTUATOR POSITION-LOCKING RELATIONSHIP	UP POSITION LOCKED IN AND DOWN POSITION LOCKED IN AND CENTER POSITION LOCKED OUT
TERMINAL TYPE AND QUANTITY	3 SOCKET, INTEGRATED WIRE TERMINATION
INCLOSURE TYPE	FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION	DUSTPROOF
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
TEST DATA DOCUMENT	81349-MIL-S-3950 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27781-22 GOVERNMENT STANDARD
III CASE MATERIAL	PLASTIC
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-3950
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS27781-22D

Restrictions/Controls & Freight Information | NSN 5930-01-197-9465

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-197-9465

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
