NSN 5930-01-196-9428 7101P3PY1ZQ, 7101-P3-P-Y1-Z-Q, 7101P3PYIZQ

Product Details | TOGGLE SWITCH

5930-01-196-9428 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: 7101P3PY1ZQ, 7101-P3-P-Y1-Z-Q, 7101P3PYIZQ, 7101-P3-P-YI-Z-Q, 7101P3Y1ZGE, 7200034, 720-0034, 5930-01-196-9428, 01-196-9428, 5930011969428, 011969428

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	15 DEC 1984	01-196-9428	00184 ( SWITCH, TOGGLE )

Drawings & Photos | NSN 5930-01-196-9428

Part Number	Request Date	QTY	Origin	SBA
5930-01-196-9428	2016-02-35	41	DIBBS

Cross Reference | NSN 5930-01-196-9428

Part Number	Cage Code	Manufacturer
7101-P3-P-Y1-Z-Q	09353	C AND K COMPONENTS INC
7101-P3-P-YI-Z-Q	09353	C AND K COMPONENTS INC
7101P3Y1ZGE	09353	C AND K COMPONENTS INC
720-0034	0ERB9	DRS LAUREL TECHNOLOGIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-196-9428

Compare

Related Products | NSN 5930-01-196-9428

5930-01-196-9429, 5930-01-196-9430, 5930-01-196-9431, 5930-01-196-9432, 5930-01-196-9433

Technical Data | NSN 5930-01-196-9428

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC
BODY STYLE	7P BUSHING MOUNT
BUSHING LENGTH	0.378 INCHES NOMINAL
BODY LENGTH	0.500 INCHES NOMINAL
BODY WIDTH	0.270 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	0.505 INCHES NOMINAL

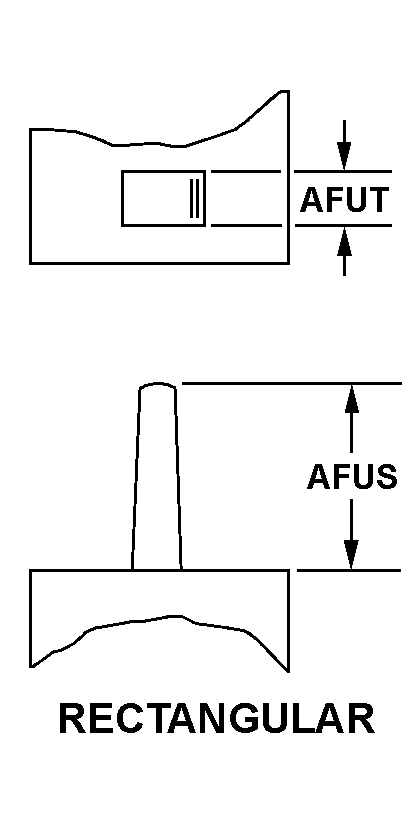

ACTUATOR STYLE	35 RECTANGULAR
ACTUATOR HEIGHT	0.450 INCHES NOMINAL
ACTUATOR WIDTH	0.100 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	3 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	UNTHREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	40
III CASE MATERIAL	PLASTIC
III OVERALL LENGTH	0.500 INCHES NOMINAL
III OVERALL WIDTH	0.270 INCHES NOMINAL
III OVERALL HEIGHT	1.333 INCHES NOMINAL
III PRECIOUS MATERIAL	GOLD AND SILVER
III PRECIOUS MATERIAL AND LOCATION	CONTACT AND TERMINAL SURFACES GOLD AND CONTACTS SILVER

Restrictions/Controls & Freight Information | NSN 5930-01-196-9428

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-196-9428

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
